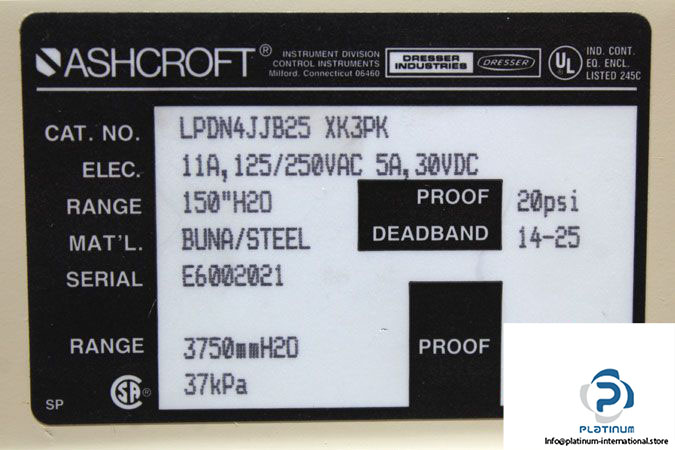

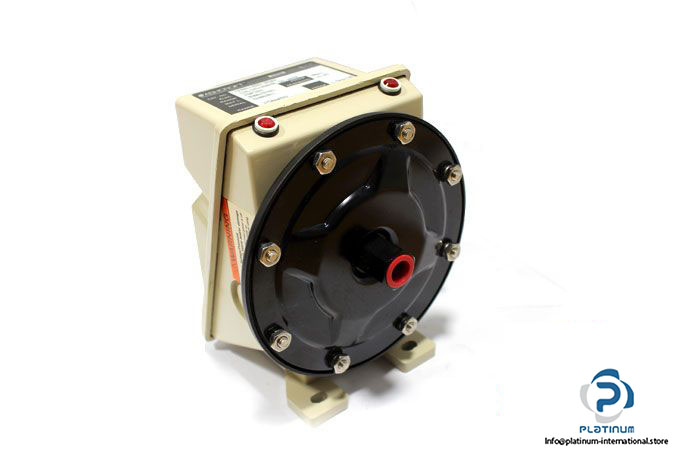

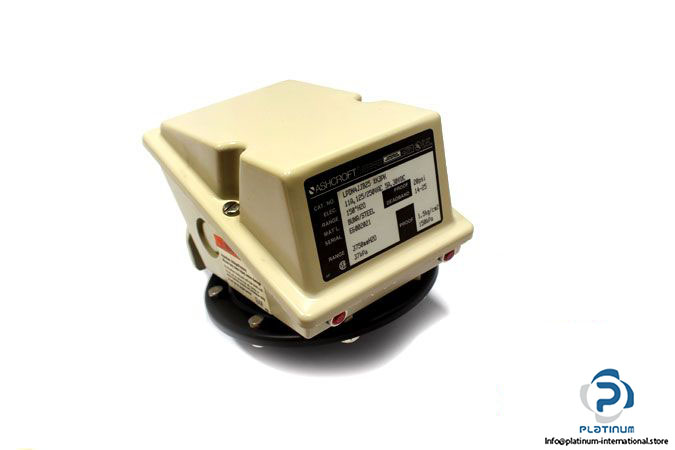

Manufacturer: ASHCROFT

Type: Diaphragm Piston Cylinder Pressure Switch

Model: LPDN4JJB25 XK3PK

Switch (setpoint) functions: Two independent adjustable setpoints, fixed deadband

Range 1: 150“ H₂OD

Dead band Pressure Range: 14 … 25 psi

Proof Pressure: 20 psi

Max. Working Pressure: 5.4 Psi

Range 2: 3750 mm H₂O,37 Kpa

Proof Pressure: 150 Kpa , 1.5 Kg/cm²

Connection: G ¼ , Threaded

Electrical Connection: Cable entry

Supply Voltage: 125/250 V AC , 30 V DC

Current Rating: 11 A AC, 5 A

Enclosure Rating: N4 – NEMA 4, 4X, IP66

Temperature Range: -0 … 150°F

Weight: 2.00 kg
