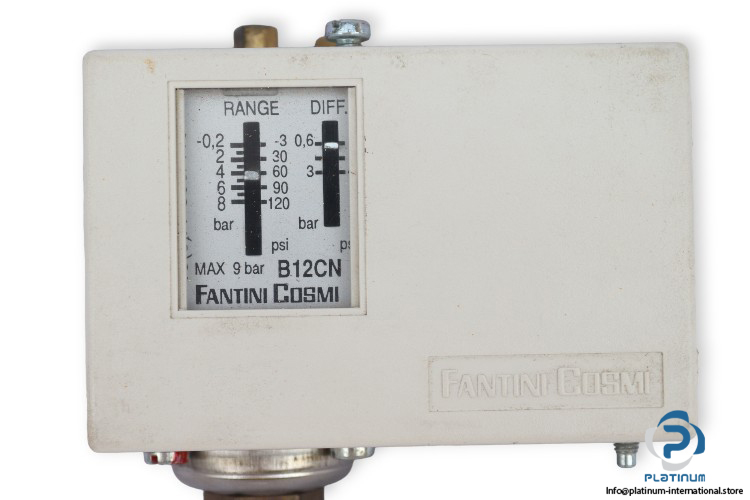

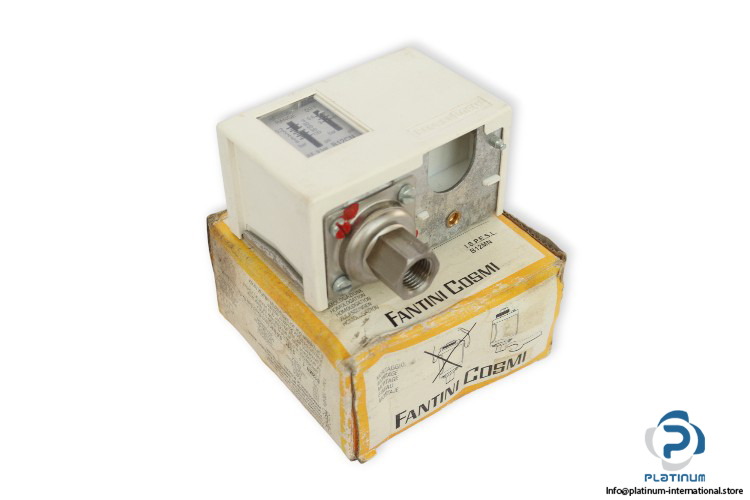

Fantini Cosmi B12CN Pressure Switch

Manufacturer: FANTINI COSMI
Type: Pressure Switch
Model: B12CN
Part No: 3317

Description: Fantini B12CN Pressure Switch for Control and Regulation of All Fluids and Non-Explosive Gases
Suitable for: Compression Plants, Boilers, Tanks, Autoclaves, Ventilation Plants, Lubrication Plants.
Pressure Range: -0.2 … 8 bar
Pressure Differential: 0.6 … 3 bar
Sensitive Element Pressure Max.: 9 bar
Contact: SPDT
Connection: G 1/4 Female
Protection Class: IP40
Dimensions: 95 x 88 x 49 mm
