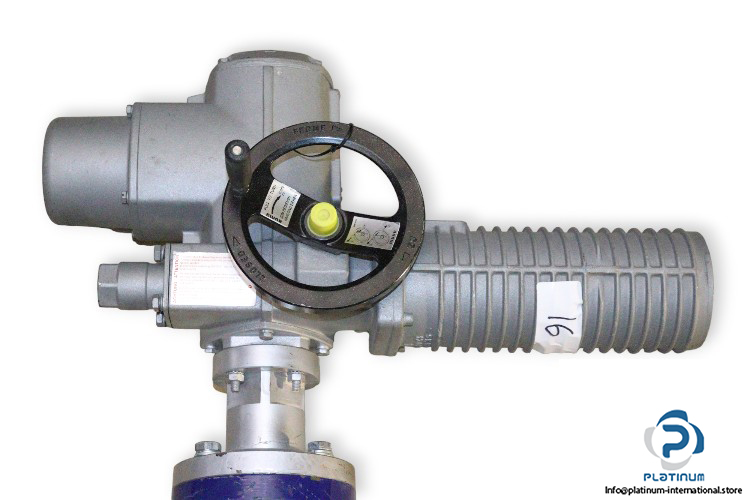

AUMA SG05.1-F05-F07 Multi-Turn Actuator with IVR ART.178 Butterfly Valve
The AUMA SG05.1-F05-F07 Multi-Turn Actuator is a precision-engineered device designed for the automated operation of valves in industrial systems. Built for durability and performance, it offers high torque, reliable motion control, and IP67 protection for demanding environments. This actuator is supplied with an IVR ART.178 butterfly valve for complete flow control functionality.
Manufacturer: AUMA
Type: Multi-Turn Actuator
Model: SG05.1-F05-F07
Part No.: 23008753/3306NS 17741

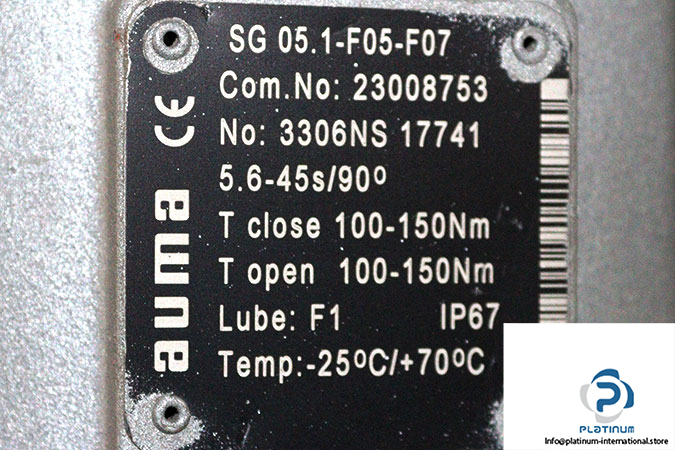

Technical Information
- Type and Size Actuator: SG 05.1
- Flange Size: F05-F07
- Speed or Operating Time: 5.6“45 sec for 90°
- Torque Range (Close): 100“150 Nm
- Torque Range (Open): 100“150 Nm
- Enclosure Protection [IP]: 67
- Lubrication: F1
- Ambient Temperature Range [°C]: ˆ’25 / +70

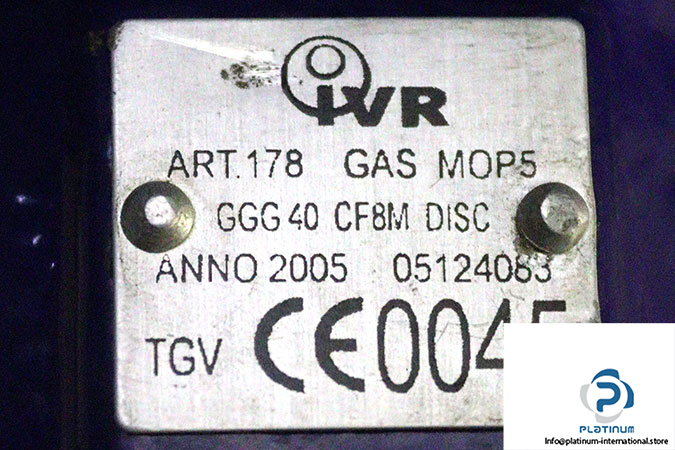

Attached Component
Attachment: IVR ART.178 Butterfly Valve
Manufacturer: IVR
Type: Butterfly Valve
Model: ART.178
Motor Technical Information
- Type AC Motor: SK0050-2/60
- Article Number: Z025.796A
- Mains Voltage [V]: 220“240
- Rated Current [A]: 1.5
- Mains Frequency [Hz]: 50/60
- Rated Power [kW]: 0.115
- Power Factor: 0.72
- Type of Duty: S2
- Enclosure Protection [IP]: 67
- Speed [rpm]: 4000
- Thermal Protection: Th
- Insulation Class: F
