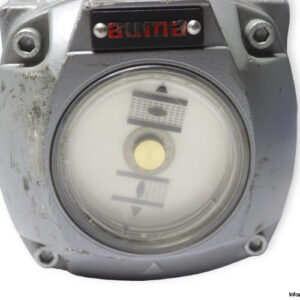

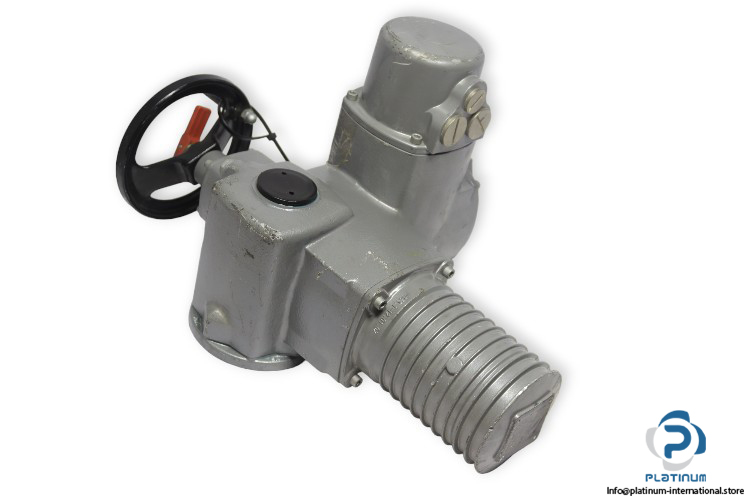

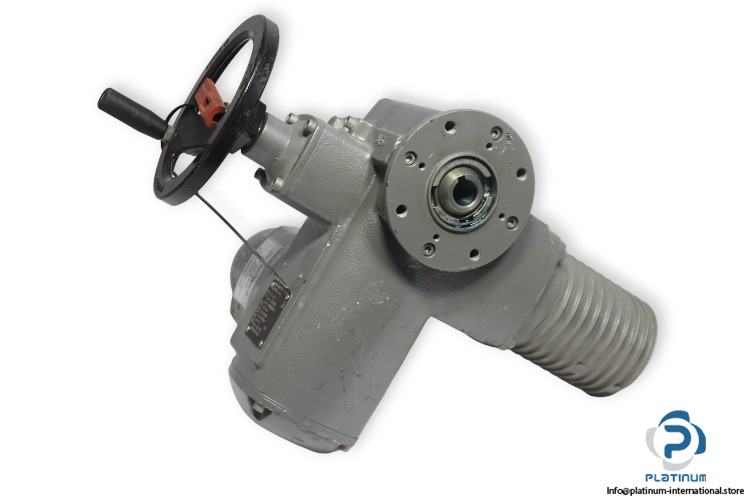

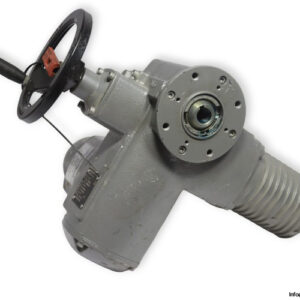

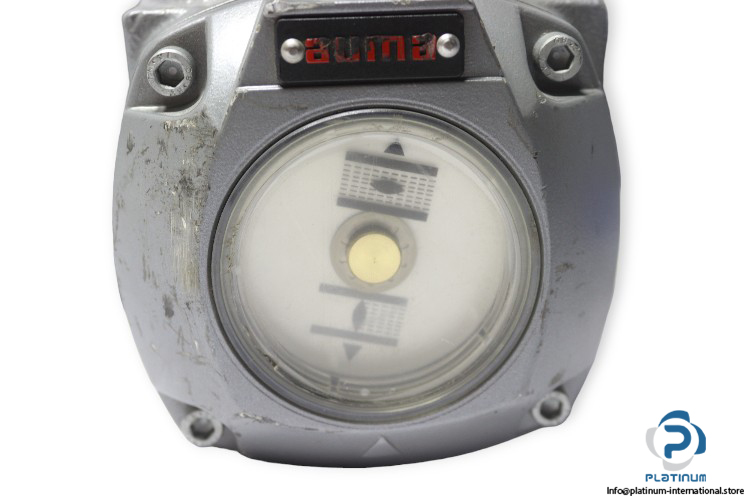

Auma SA 07.5-G0 Multi-Turn Electric Actuator

Manufacturer: Auma
Type: Multi-Turn Actuator
Model: SA07.5-G0
Part No.: 13087542

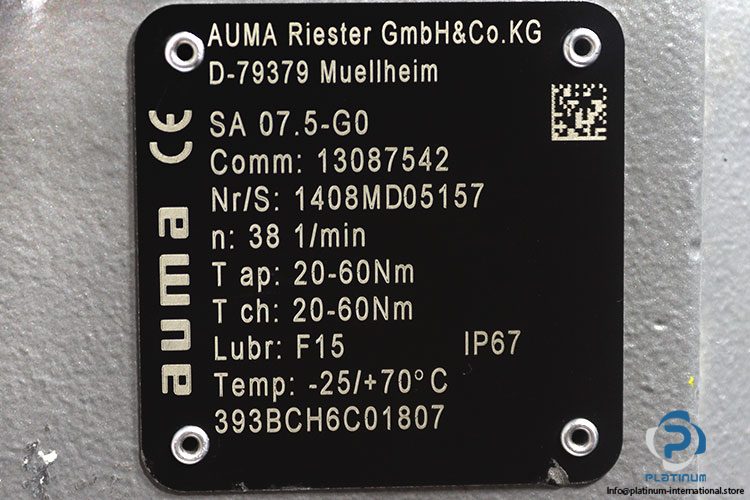

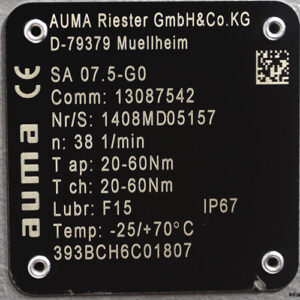

Type and Size Actuator: SA 07.5
Flange Size: G0
Torque Range in Direction Close [Nm]: 20-60
Torque Range in Direction Open [Nm]: 20-60
Lubricant Type: F15
Rated Speed [rpm]: 38
Temperature [°C]: -25…+70
Protection Class [IP]: 67

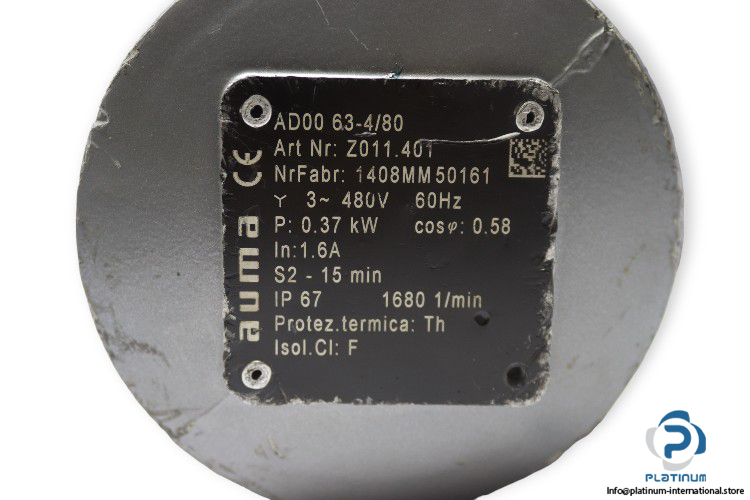

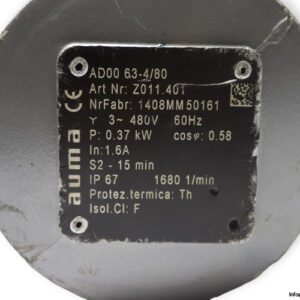

Type AC Motor: AD00 63-4/80
Art. Nr.: Z011.401
Mains Voltage [V]: 480
Rated Current [A]: 1.6
Mains Frequency [Hz]: 60
Rated Power [kW]: 0.37
Power Factor: 0.58
Type of Duty: Short-Time Duty S2-15 min
Speed [rpm]: 1680
Insulation Class: F
Thermistors Protected: Th
Protection Class [IP]: 67
