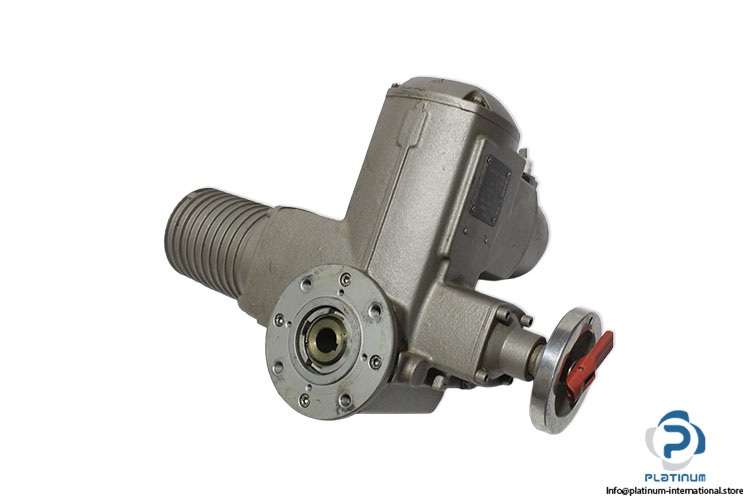

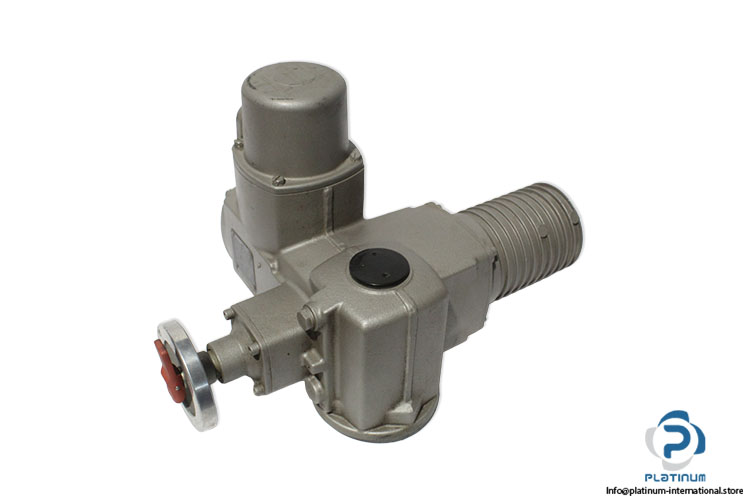

Auma SA 07.5-F10 Multi-Turn Actuator
Used
In stock2 unitsReady to ship
899,99$
The AUMA SA 07.5-F10 is a reliable industrial multi-turn actuator designed for precise valve automation and process control applications. Featuring 20–60 Nm torque range, 45 rpm actuator speed, IP67 protection, and a 400V AUMA AD00 motor for dependable industrial performance.
Torque Range:
20-60 Nm
Actuator Speed:
45 rpm
Motor Power:
0.37 kW
Mains Voltage:
400 V
Motor Speed:
1400 rpm
Protection Class:
IP67
Temperature Range:
-25 To 80 °C
Flange Size:
F10
ActuatorAumaAutomationComponentsControlElectricflowIndustrialIP67motorMotorizedMultiOperatorpProcessTurnValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

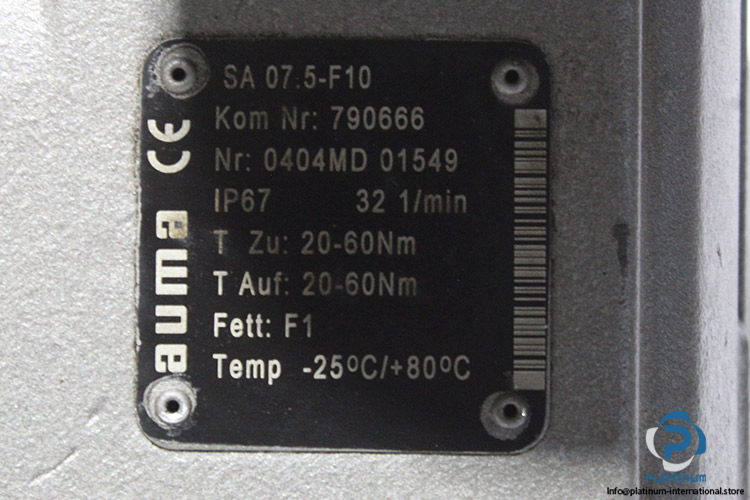

| Kom No | 790666 |
| Ref No | 0404MD 01549 |
| Type and Size Actuator | SA 07.5 |
| Flange Size | F10 |
| Torque Range in Direction Close [Nm] | 20-60 |
| Torque Range in Direction Open [Nm] | 20-60 |
| Rated Speed [rpm] | 45 |
| Protection Class [IP] | 67 |
| Temperature | -25 to 80 °C |

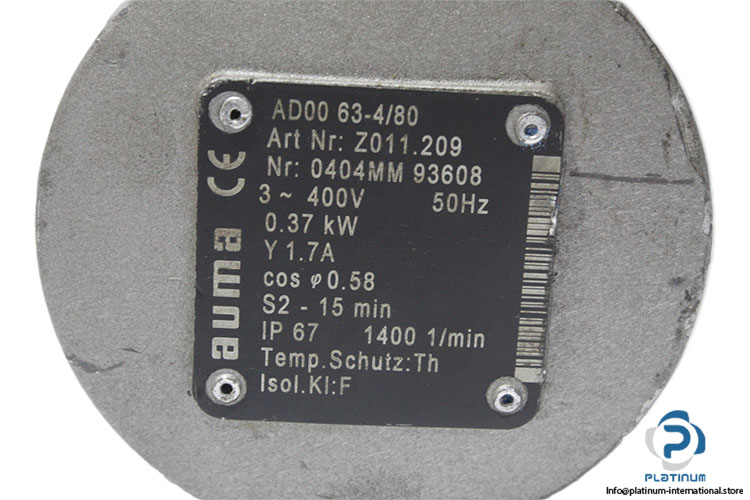

| Attached Motor | AUMA AD00 63-4/80 |
| Art No | Z011.209 |
| Part No. | 0404MM 93608 |
| Mains Voltage [V] | 400 |
| Rated Current [A] | 1.7 |
| Mains Frequency [Hz] | 50 |
| Rated Power [kW] | 0.37 |
| Power Factor | 0.58 |
| Type of Duty | Short-Time Duty S2-15 min |
| Speed [rpm] | 1400 |
| Protection Class ,Motor[IP] | 67 |
| Isolation class | F |
| Condition | Used |
| SKU | 1099008 |
| Weight | 20,55 |
