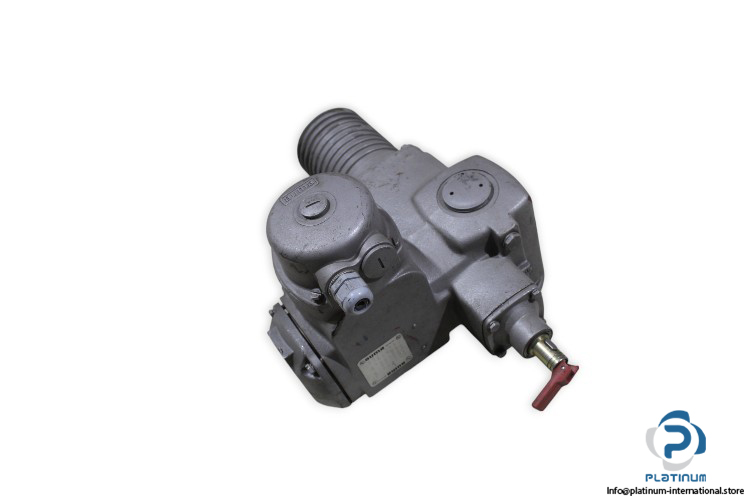

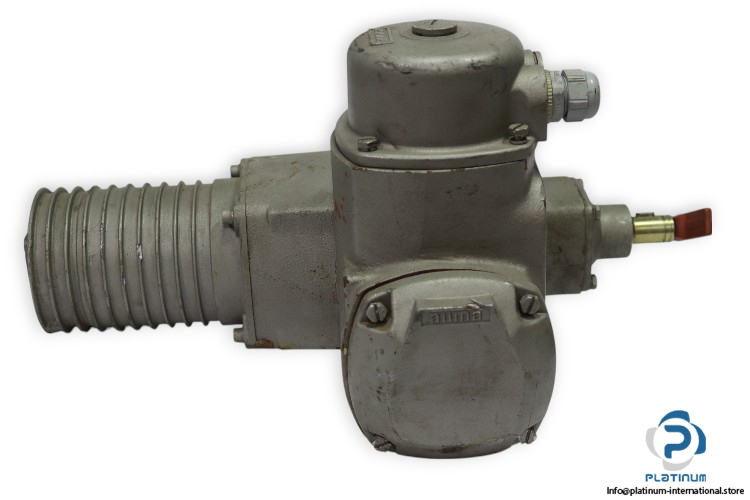

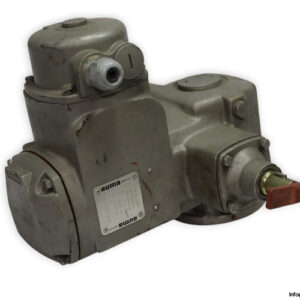

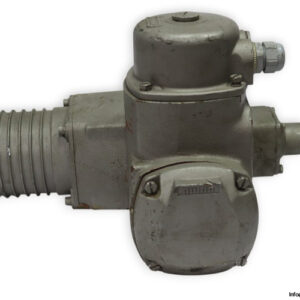

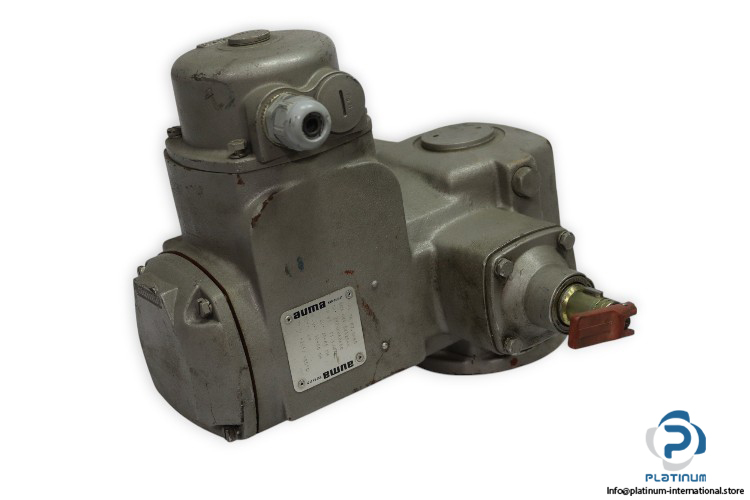

Auma SA 07.5-G0 583294K Multi-Turn Electric Actuator
Electric Actuator
High-performance multi-turn electric actuator with 20“80 Nm torque range, IP67 protection, and integrated 380 V AC motor. Ideal for valve automation, water treatment, oil & gas, and industrial pipeline applications.AUMA SA 07.5-G0 Multi-Turn Electric Actuator
The AUMA SA 07.5-G0 Multi-Turn Electric Actuator delivers reliable and precise control for industrial valve automation. Designed for robust performance in demanding environments, it ensures consistent torque output and smooth operation for a wide range of mechanical and process control applications. Its durable build and integrated AC motor make it ideal for long-term service with minimal maintenance.

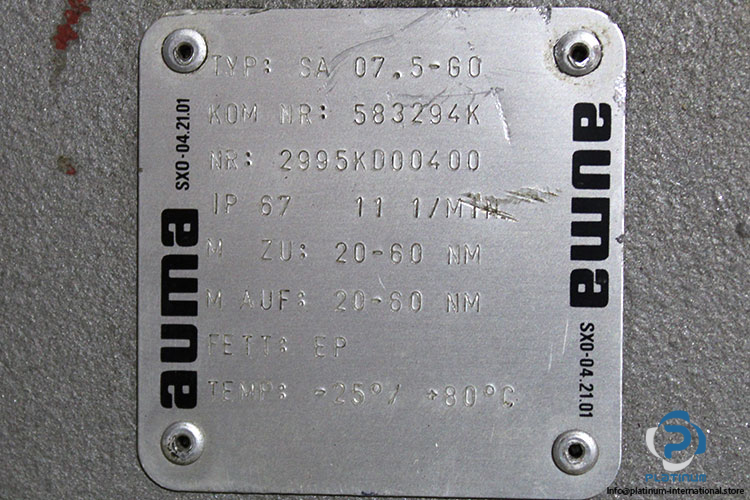

Manufacturer: AUMA
Type: Multi-Turn Electric Actuator

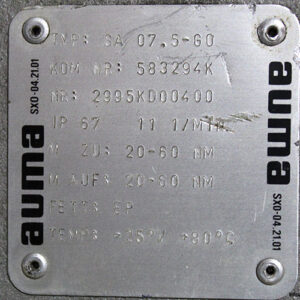

Model: SA 07.5-G0
Order No.: 583294K
Serial No.: 2995KD00400
Attachment Details
Engineered for precision and reliability, the AUMA SA 07.5-G0 ensures optimal control of valve operations in critical industrial systems. Its compact, sealed design (IP67) guarantees superior protection against dust and water, making it suitable for harsh environments. The integrated AC motor provides efficient torque generation and energy-saving operation. Perfect for industries requiring dependable automation such as water treatment, oil & gas, and process engineering.
| Flange Size | G0 |
| Torque | 20 to 60 Nm (close) / 20 to 80 Nm (open) |
| Speed | 11 rpm |
| Protection Class | IP67 |
| Lubrication | Grease EP |
| Temperature Range | -25 °C to +80 °C |

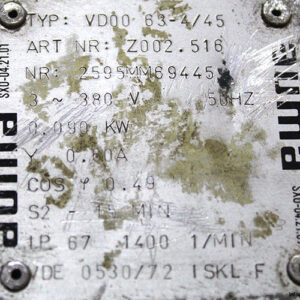

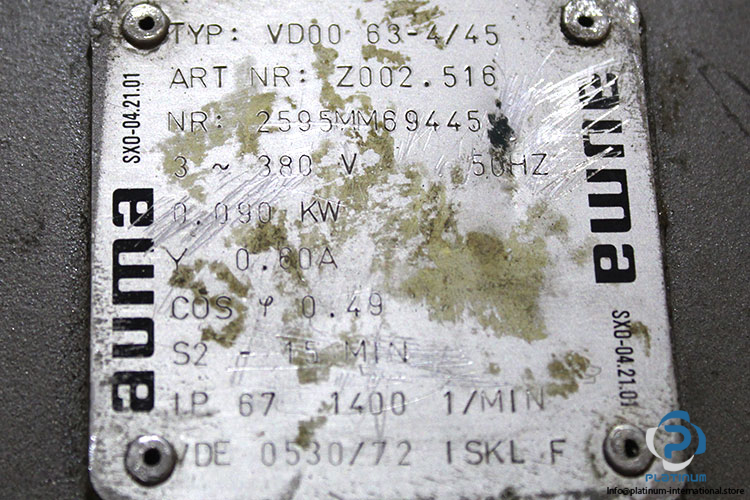

| Attachment | AUMA VD00 63-4/45 AC Motor |
| Art. No. | Z002.516 |
| Code | 2595MM69445 |
| Mains Voltage [V] | 380 V AC-3phase |
| Rated Current [A] | 0.6 A |
| Mains Frequency [Hz] | 50 |
| Rated Power [kW] | 0.090 |
| Power Factor | 0.49 |
| Type of Duty | Short-Time Duty S2-15 min |
| Speed [rpm] | 1400 |
| Protection Class [IP] | IP67 |
| Standard | VDE 0530/72 |
| Applications | Industrial valves, pipelines, water treatment, oil & gas plants |
