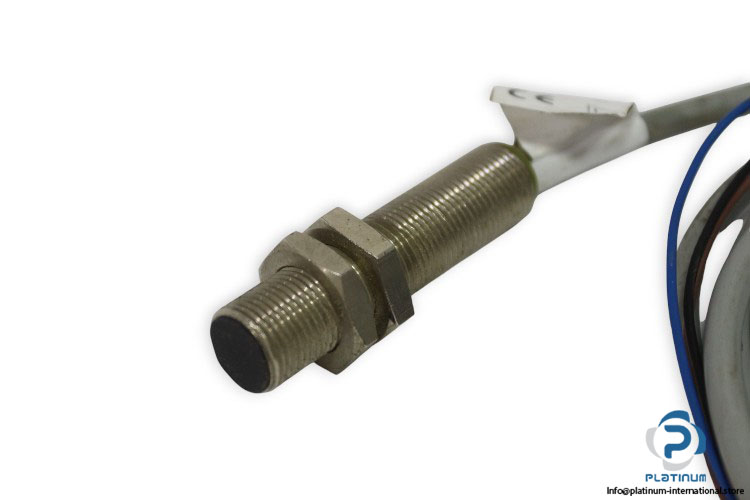

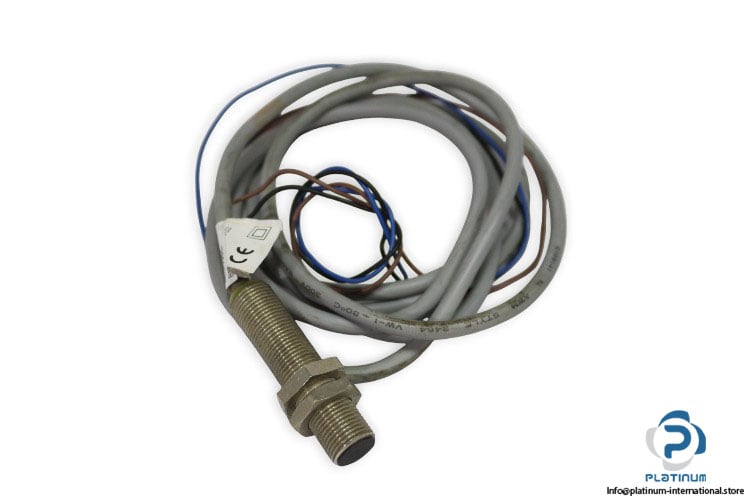

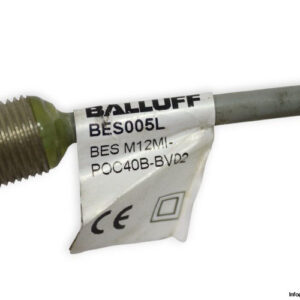

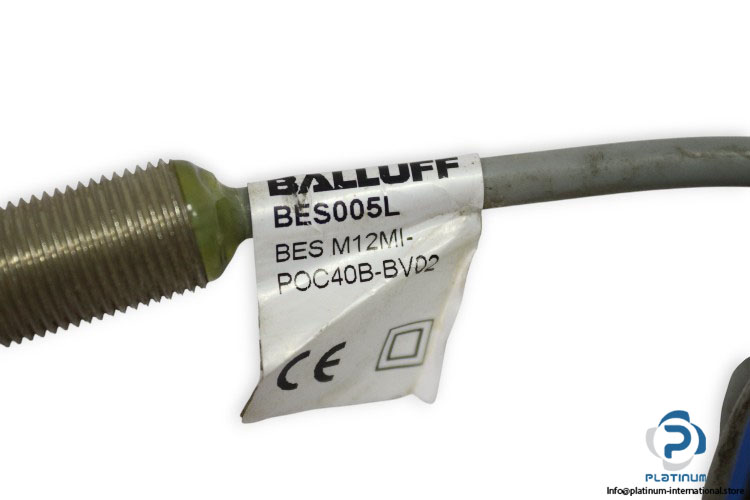

BALLUFF BES005L INDUCTIVE PROXIMITY SWITCH

The Balluff BES005L is a high-quality inductive proximity switch designed for precise, non-contact detection in industrial automation. With its robust housing and reliable switching performance, it ensures accurate sensing even in demanding environments.

Manufacturer: Balluff
Type: Inductive Proximity Switch
Order Code: BES005L
Model: BES M12MI-POC40B-BV02

Technical Information

• Dimension: Ø 12 x 53 mm
• Style Housing: M12x1
• Installation: For flush mounting
• Range: 4 mm
• Switching Output: PNP normally closed (NC)
• Switching Frequency: 2500 Hz
• Housing Material: Brass, Nickel-free coated
• Material Sensing Surface: PBT
• Connection: Cable, 2.00 m, PVC
• Operating Voltage Ub: 10…30 VDC
• Ambient Temperature: -25…70 °C
• IP Rating: IP68
