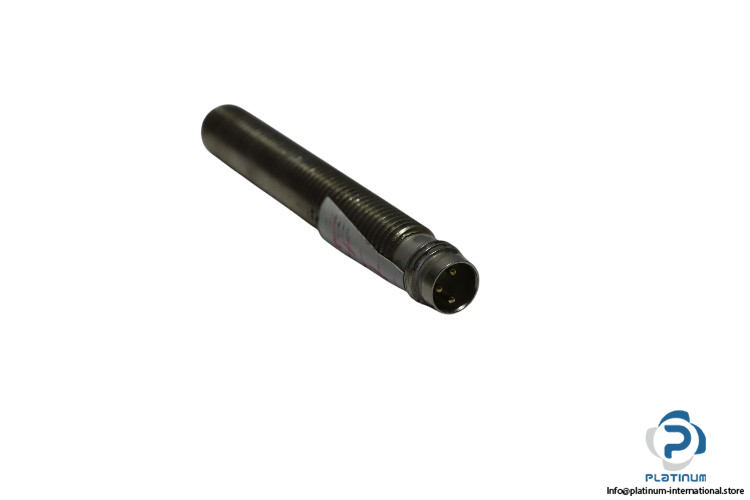

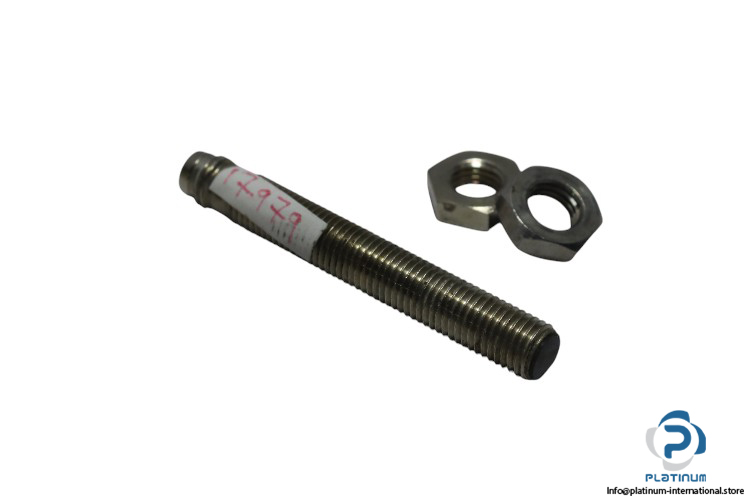

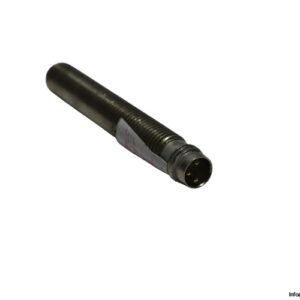

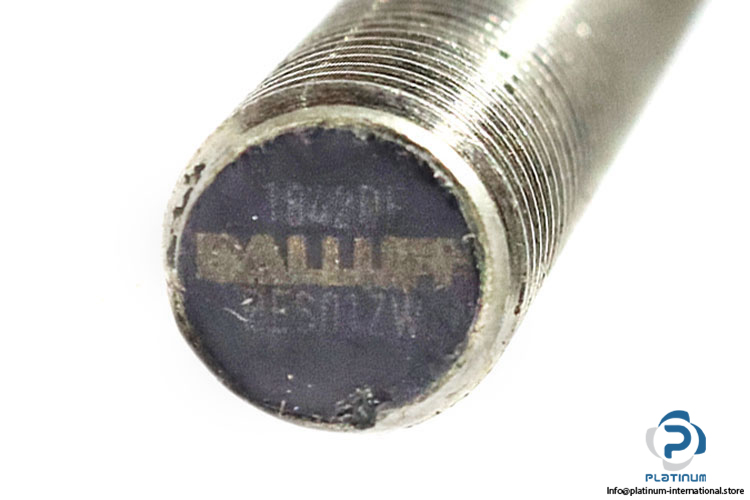

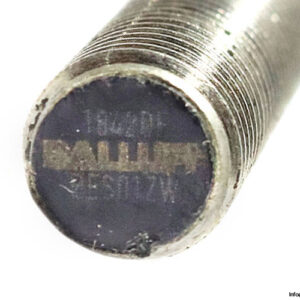

Balluff BES01ZW Inductive Sensor

Balluff BES M08MI-PSC40B-S49G Inductive Sensor

The Balluff BES M08MI-PSC40B-S49G is a high-performance inductive sensor designed for precise object detection in industrial automation applications. With a robust brass housing, IP67 protection, and reliable PNP Normally Open (NO) switching output, it ensures durability and efficiency in demanding environments.

• Manufacturer: Balluff
• Type: Inductive Sensor
• Model: BES M08MI-PSC40B-S49G
• Part No.: BES01ZW

Technical Specifications:

• Operating Voltage (Ub): 10 / 30 VDC
• No-Load Current (Io) Max., Undamped: 8 mA
• No-Load Current (Io) Max., Damped: 10 mA
• Rated Insulation Voltage (Ui): 75 V DC
• Rated Operating Current (Ie): 200 mA
• Rated Operating Voltage (Ue): 24 V DC
• Rated Short Circuit Current: 100 A
• Switching Output: PNP Normally Open (NO)
• Output Resistance (Ra): 33.0 kOhm + 2D
• Connection: M8x1-Male, 3-pole
• Installation: Quasi-flush
• Size: M8x1
• Tightening Torque: 3 Nm
• Degree of Protection: IP67
• Housing Material: Brass
• Ambient Temperature: 0 / 60 °C
• Dimensions: Ø 8 x 59 mm
