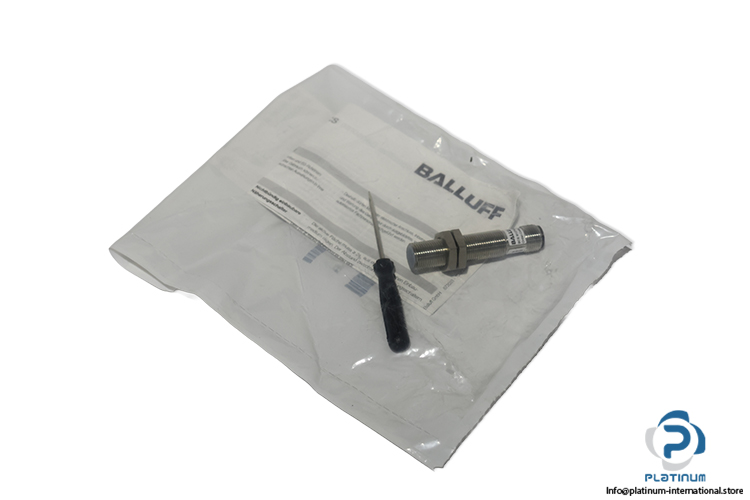

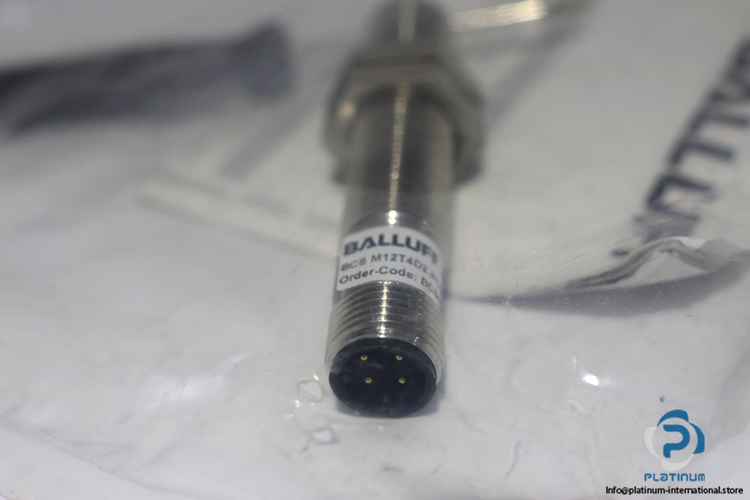

Balluff BCS M12T4D2-POM40C-S04G Inductive Proximity Sensor
New
In stock2 unitsReady to ship
Inductive Proximity Sensor The BALLUFF / SIESENSORIK BCS M12T4D2-POM40C-S04G is an industrial proximity sensor with PNP NC output, 1…4 mm sensing range, stainless steel housing, and IP65 protection for reliable automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

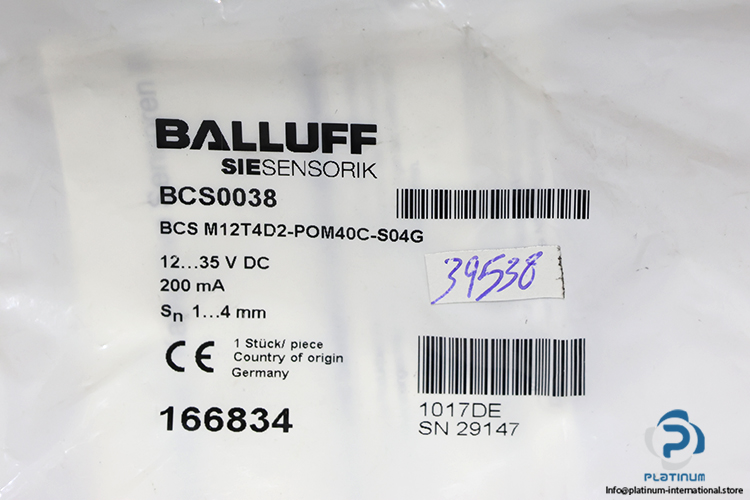

| Order Code | BCS0038 |
| SN | 29147 |
| Ref No | 1017DE, 166834 |
| Switching output | PNP Normally Closed (NC) |
| Measuring range | 1…4 mm |
| Range | 1…4 mm |
| Rated operating distance Sn | 4 mm |
| Connection | M12x1-Connector, 4-pole, Acoded |
| Operating voltage Ub | 12…35 VDC |
| Rated insulation voltage Ui | 75 V DC |
| Rated operating current Ie DC | 200 mA |
| Utilization category | DC -13 |
| Voltage drop static max. | 1.5 V |
| Ambient temperature | -30…70 °C |
| Protection type IEC 60529 | IP65 |
| Approval/Conformity | CE cULus ,Basic standard IEC 60947-5-2 |
| Housing material | Stainless steel |
| Material sensing surface | PTFE |
| Dimension | 12 x Length 60 mm |
| Installation | non-flush |
| Size | M12x1 |
| Tightening torque | 40 Nm |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100955 |
| Weight | 0,06 |
