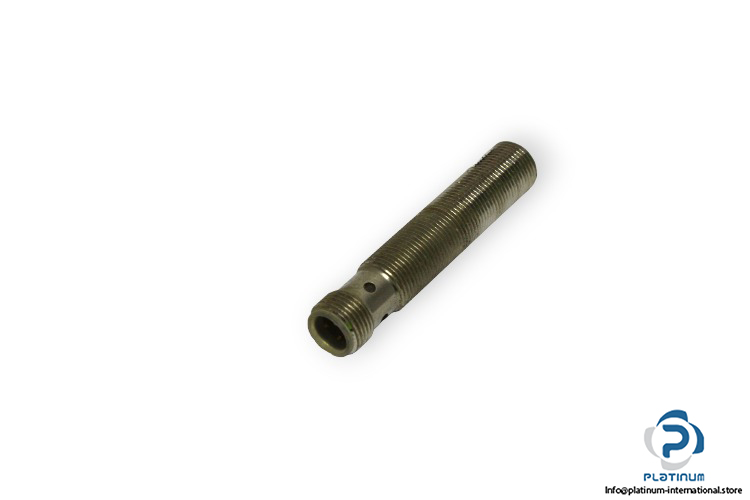

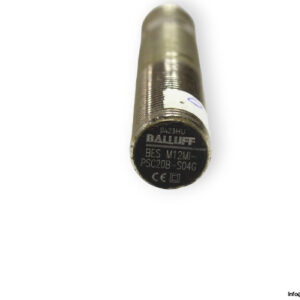

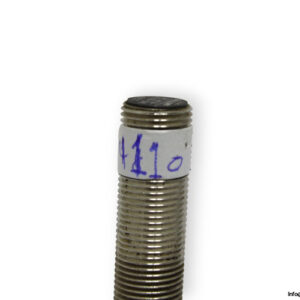

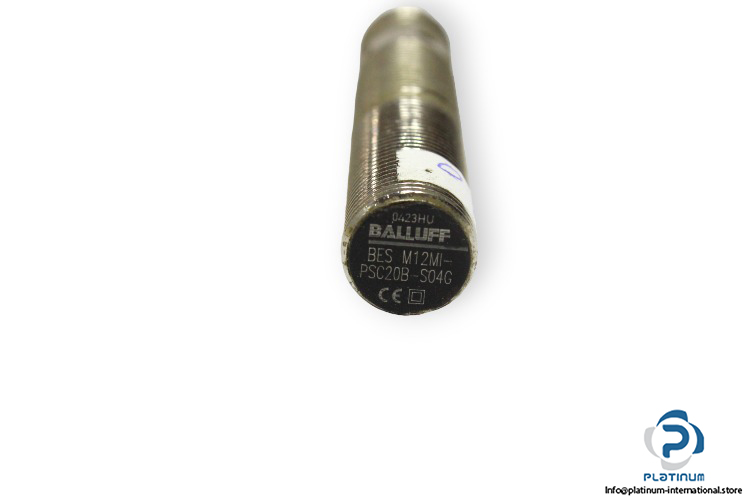

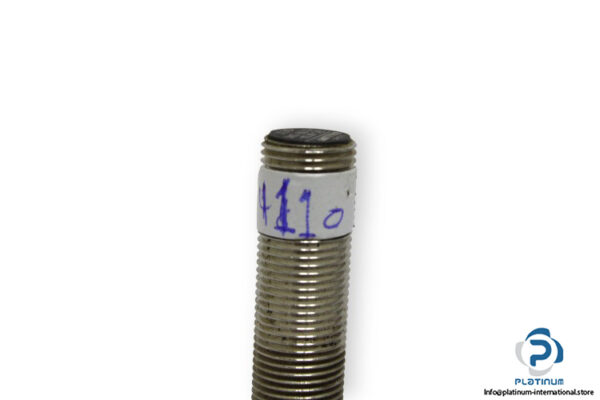

Manufacturer: BALLUFF

Type: Inductive Standard Sensor

Order Code: BES0060

Part No. BES M12MI-PSC20B-S04G

Sensing Range: 2 mm

Operating Voltage: 10 … 30 V DC

Switching Frequency: 3500 Hz

Operating Current: 200 mA DC

Electrical Design: PNP

Output Function: Normally Open

Connector Type: M12 Connector, 4 – Pin

Protection Class: II

Enclosure Rating: IP68

Housing: Threaded Type

Ambient Operating Temperature: –25 … 70°C

Diameter, Housing Length: 12, 65 mm

Material: Nickel-Plated Brass

Mounting: Flush Mountable
