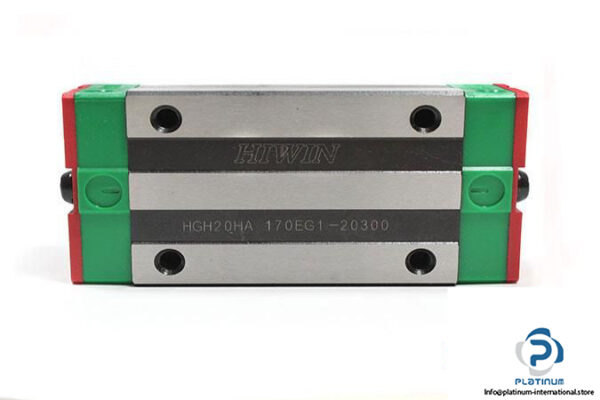

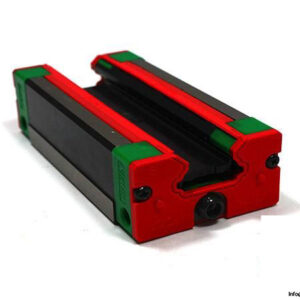

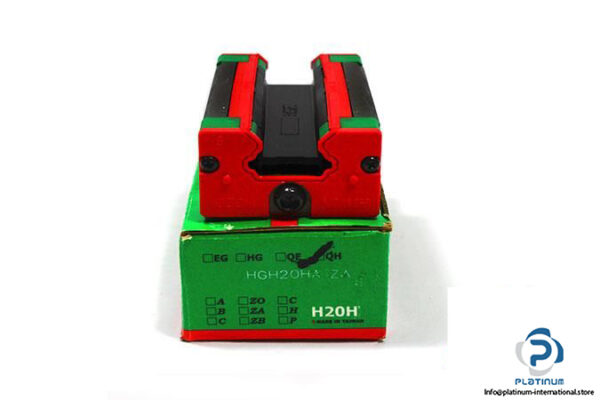

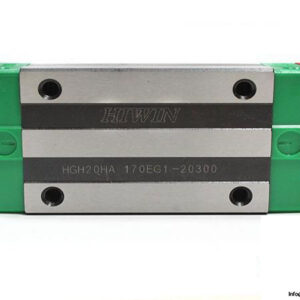

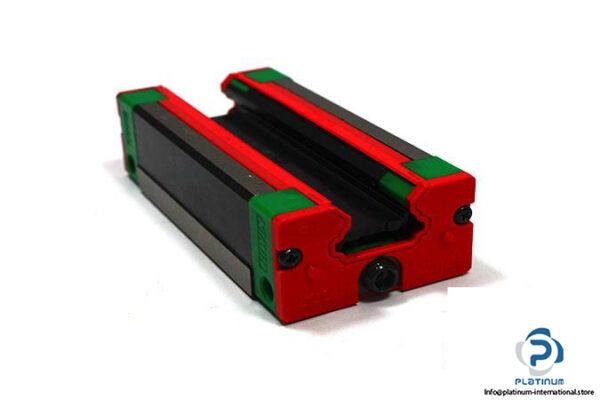

HIWIN HGH20HA 170EG1-20300 LINEAR GUIDEWAY BLOCK
Engineered for super heavy-load applications, this square-type linear guideway block from Hiwin provides high rigidity, precision, and smooth linear motion. Designed for top mounting, it fits demanding automation and industrial systems requiring robust support and minimal friction.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: HGH20HA 170EG1-20300
Technical Information
- Size: 20 mm
- Block Height: 25.4 mm
- System Height: 30 mm
- Block Width (W): 44 mm
- Block Length (L): 92.2 mm
- Thread Size: M5 x16
- Distance Between Holes: 32 mm, 50 mm
- Rail Width: 20 mm
- Rail Height: 17.5 mm
- Block Type: Square
- Load Type: Super Heavy Load
- Block Mounting Type: From Top
- Basic Dynamic Load Rating: 32.7 kN
- Basic Static Load Rating: 47.96 kN
