Hiwin RGW25HC Linear Guideway Block
New
In stock6 unitsReady to ship
LINEAR GUIDEWAY BLOCK
High-rigidity RG Series guideway block by Hiwin with 25 mm size, heavy load capacity, and top/bottom mounting flexibility, ideal for demanding precision motion applications.25A07PB200BlockBottomFlangeGuideGuidewayHeavyHiwinIndustrialLinearLoadmmMotionMountingRGRGW25HRGW25HCRollerSeriesTopType
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

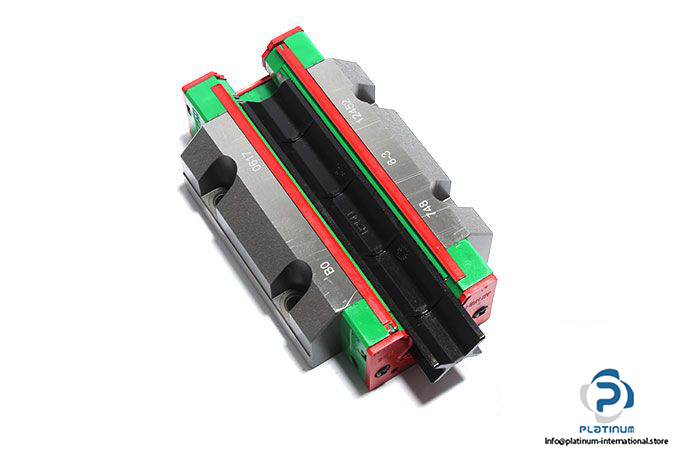

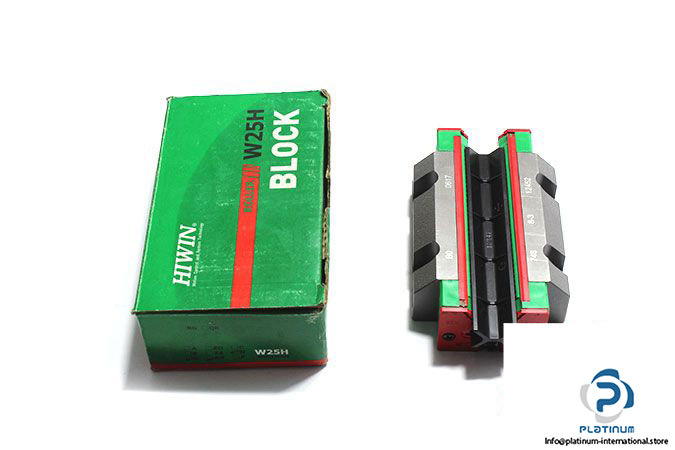

HIWIN RGW25HC LINEAR GUIDEWAY BLOCK
The Hiwin RGW25HC is a high-performance linear guideway block from the RG Series, engineered for applications requiring high rigidity and precision. Designed with a roller-bearing system and heavy-load capacity, this flange-type block is suitable for demanding motion control environments.
Manufacturer: Hiwin
Type: Linear Guideway Block
Model: RGW25HC
MRN: RGW25H A07PB200
Basic Load Ratings, Linear:
| Size | 25 mm |
| Total Height H | 36 mm |
| Block Width W | 70 mm |
| Block Length L | 114.4 mm |
| Block Height | 30.5 mm |
| Distances Between Holes | 57 mm, 45 mm |
| Dynamic Cr | 33.9 kN |
| Static C0r | 73.4 kN |
| Series | RG Series; High Rigidity Roller Type Linear Guideway |
| Block Type | W; Flange Type |
| Load Type | H; Super Heavy Load |
| Block Mounting Type | C; Top or Bottom |
