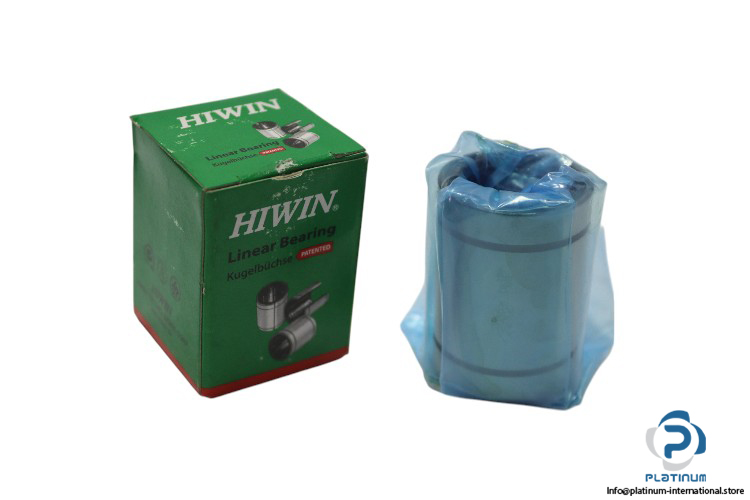

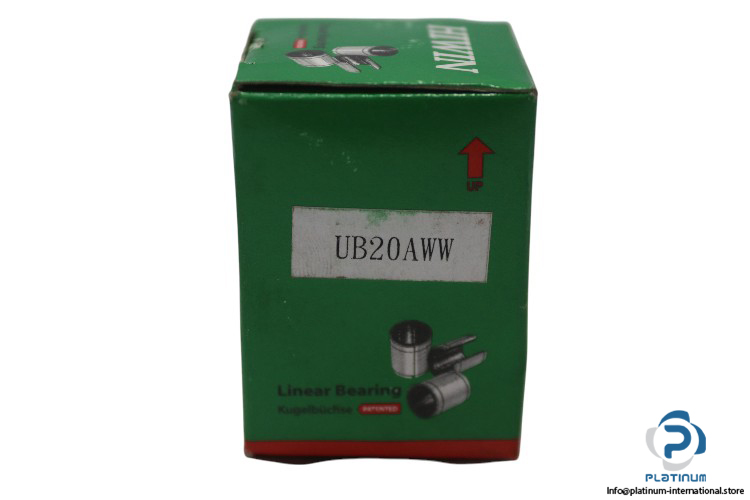

Hiwin UB-20AWW Closed Linear Ball Bushing
New
In stock13 unitsReady to ship
23,33$
Closed Linear Ball Bushing
Hiwin UB-20AWW Closed Linear Ball Bushing features a 20 mm inner diameter and 32 mm outer diameter. Designed for smooth motion, it offers a dynamic load rating of 920 N and static load rating of 1480 N.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Hiwin UB-20AWW Closed Linear Ball Bushing
The Hiwin UB-20AWW Closed Linear Ball Bushing is designed for smooth and efficient linear motion in industrial applications. With its robust dynamic and static load ratings, this ball bushing offers excellent performance and reliability.
Manufacturer: Hiwin
Type: Closed Linear Ball Bushing
Model: UB-20AWW

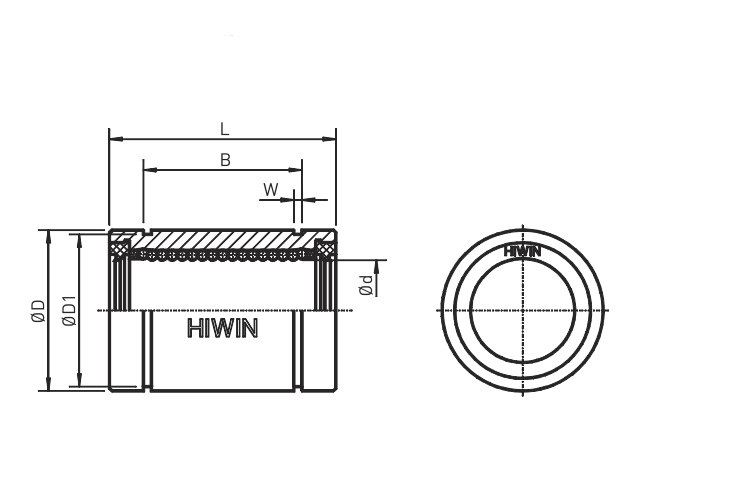

| Inner Diameter (d) | 20 mm |
| Outer Diameter (D) | 32 mm |
| Length (L) | 45 mm |
| B | 31.5 mm |
| Design Type | Closed |
| Rows of Balls | 5 |
| Dynamic Load Rating | 920 N |
| Static Load Rating | 1480 N |
| Seals | WW, Double side wipers |
