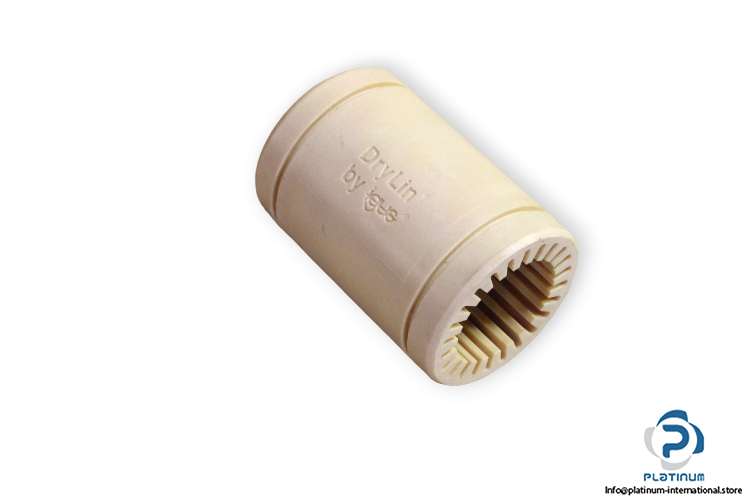

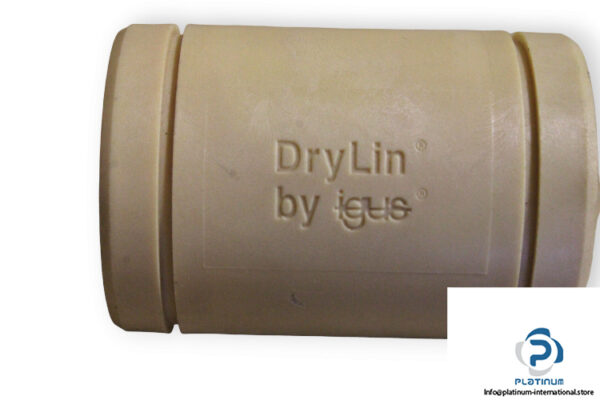

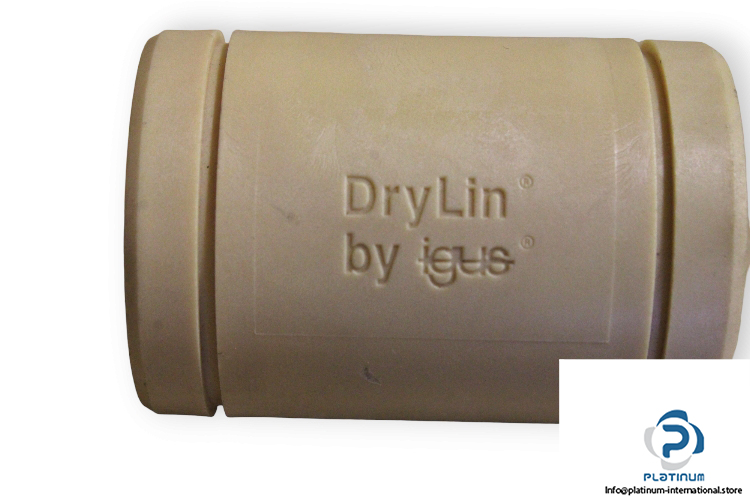

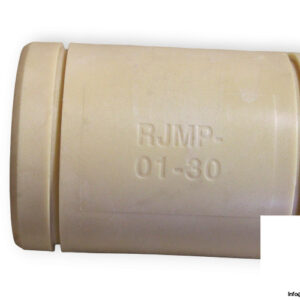

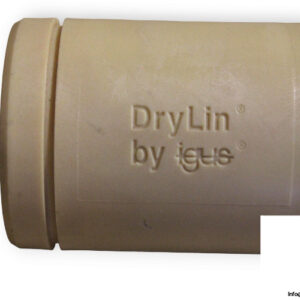

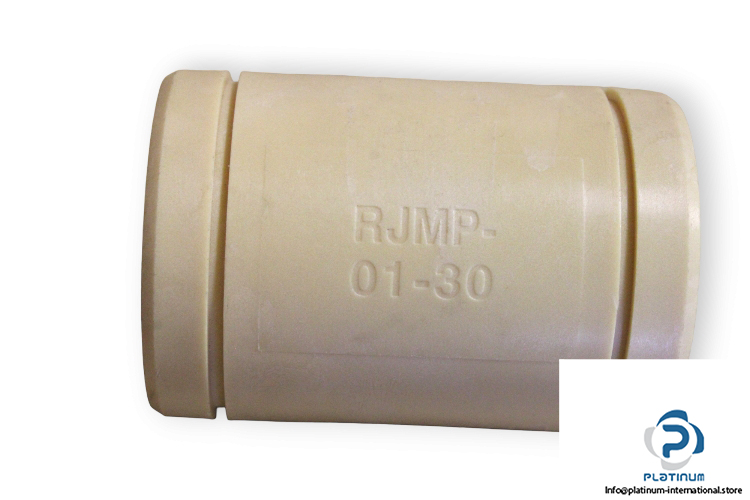

Igus RJMP-01-30 Solid Polymer Bearing

Manufacturer: IGUS
Type: Standard type, precise
Model: RJMP 01-30

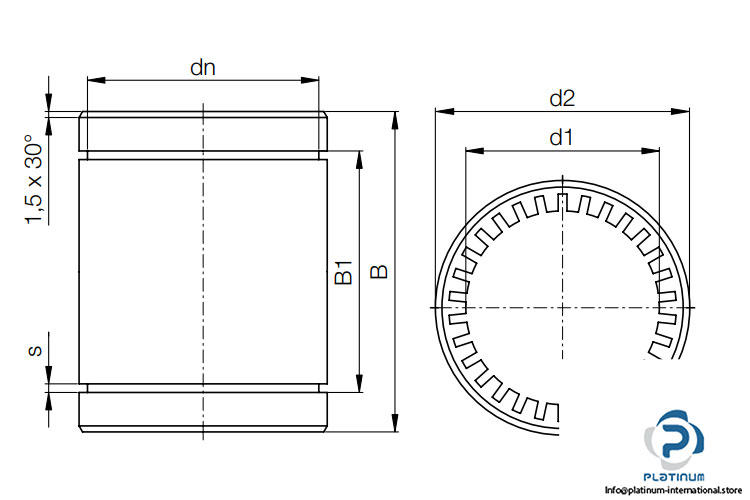

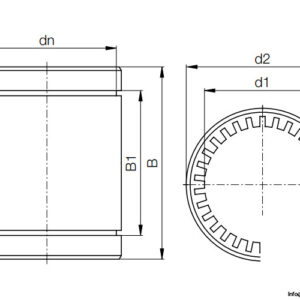

Dimensions
Inner diameter d₁: 30 mm
Outer diameter d₂: 47 mm
Width B: 68 mm
B₁: 51.7
d_n: 43.5 mm
Precision: P; Standard
F max. dynamic: 2550 N
F max. static: 17850 N
Modulus of elasticity: 2400 MPa
Compressive strength: 60 MPa
Max. long term application temperature: 90 °C
Max. short term application temperature: 120 °C
Min. application temperature: -40 °C
