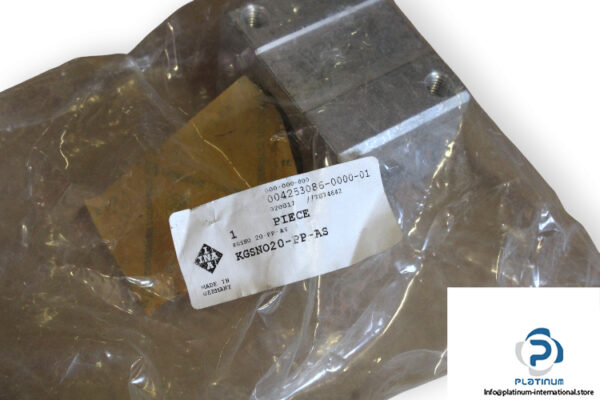

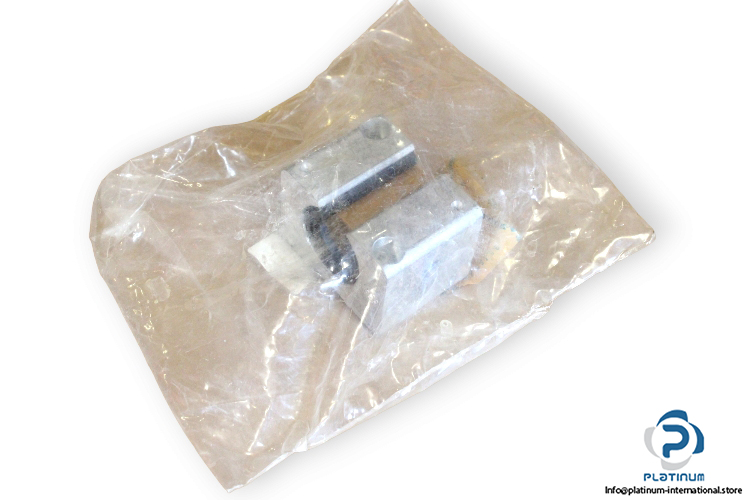

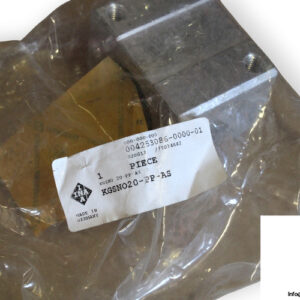

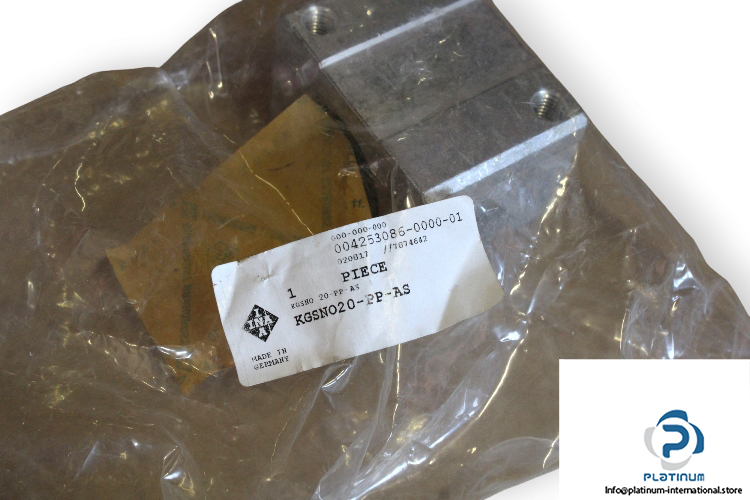

INA KGSNO20-PP-AS Linear Ball Bearing AND Housing Unit

Manufacturer: Schaeffler INA

Type:  Linear ball bearing and housing unit

Model: KGSNO 20-PP-AS

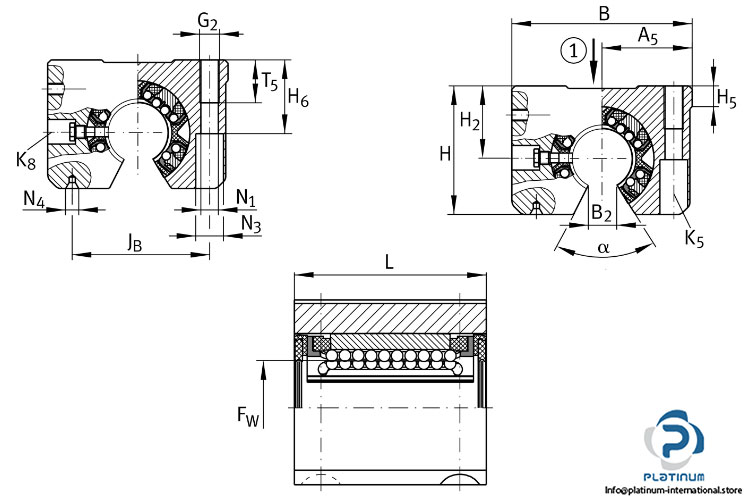

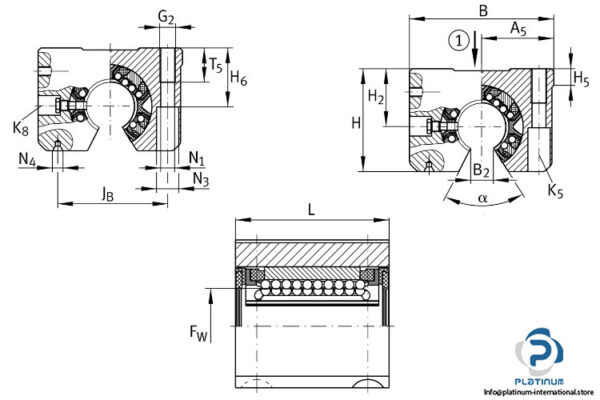

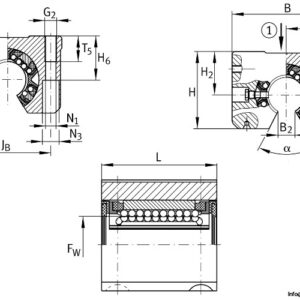

Dimensions:

Diameter of ball complement F_w: 20 mm

Height H: 42 mm

length L: 45 mm

Width B: 60 mm

Mounting dimension J_B: 45 mm

Design type: Open type

load capacity dyn. C_max: 2200 N

load capacity stat. C_{0 max}: 2310 N

Seals: PP, Sealed
