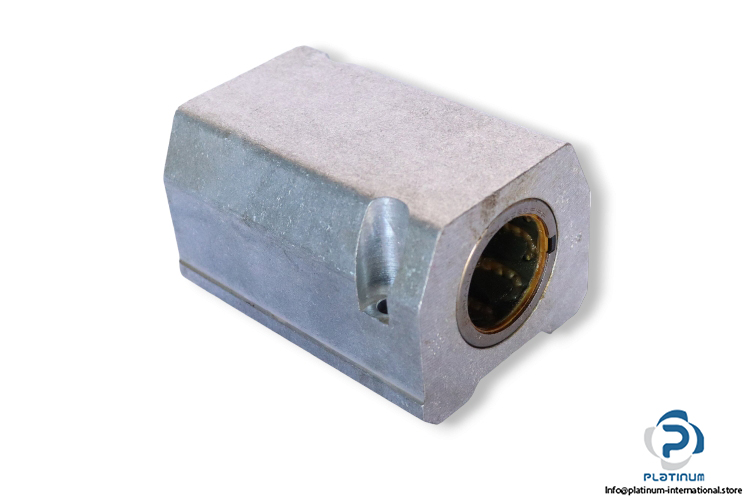

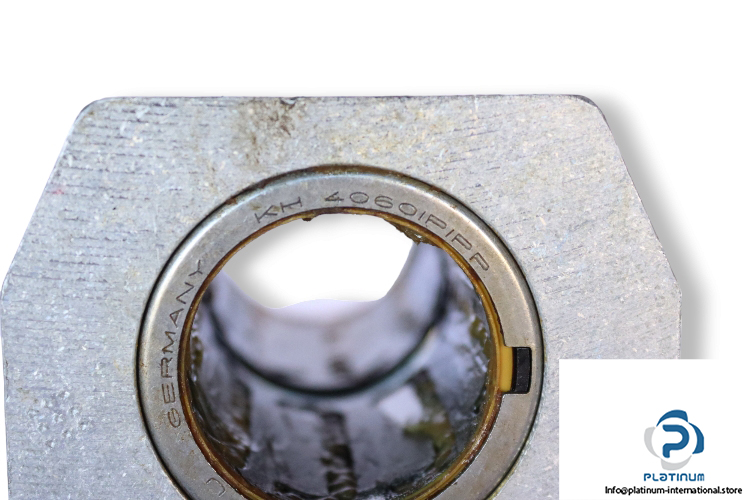

INA KTHK40-B-PP-AS Linear Bearing Unit

Manufacturer: INA
Type: Linear ball bearing and housing units
Model: KTHK 40-B-PP-AS

Design type: Closed Type

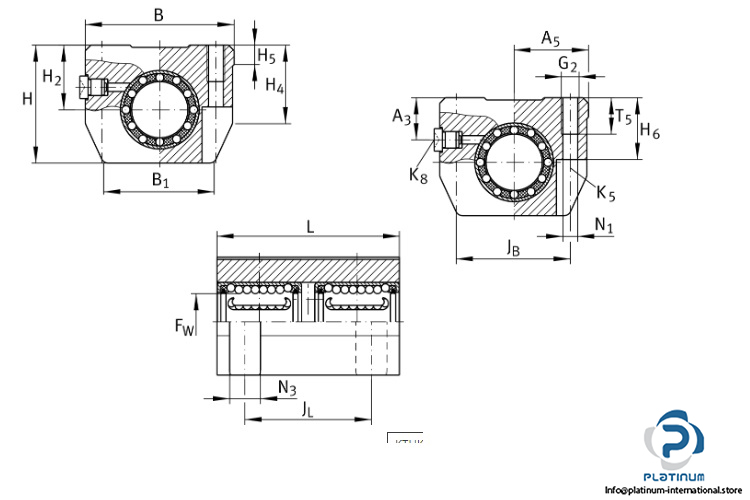

Shaft diameter F_w: 40 mm
Width B: 87 mm
Height H: 73.5 mm
Length L: 125 mm
Center height H2: 39 mm
JB: 69 mm
H4: 49.7 mm
H5: 12,8 mm
T5: 22 mm
H6: 38 mm
A3: 23 mm
Basic load ratings:
Dynamic C: 8600 N
Static C0: 6900 N
Seals: PP, Sealed
