Igus TW-01-30-LLZ Linear Guide Carriage

Name: IGUS TW-01-30-LLZ LINEAR GUIDE CARRIAGE
SKU: 1057103
Availability: LimitedAvailability

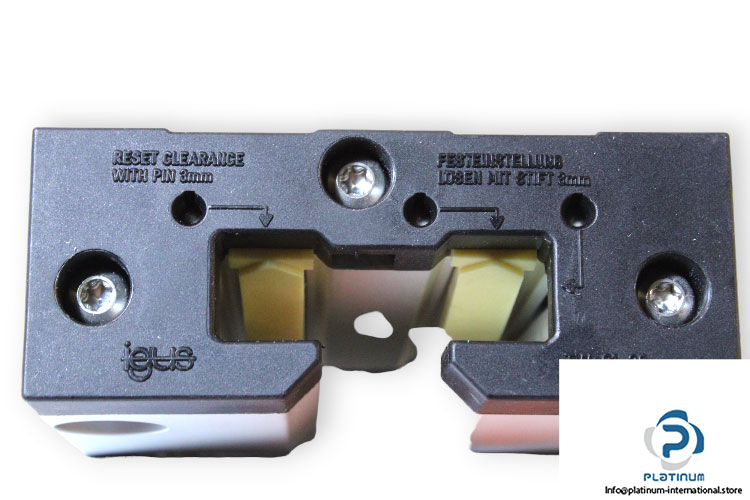

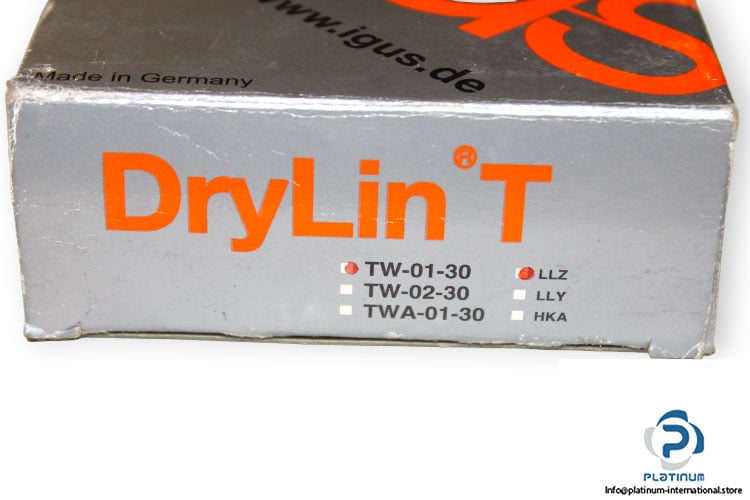

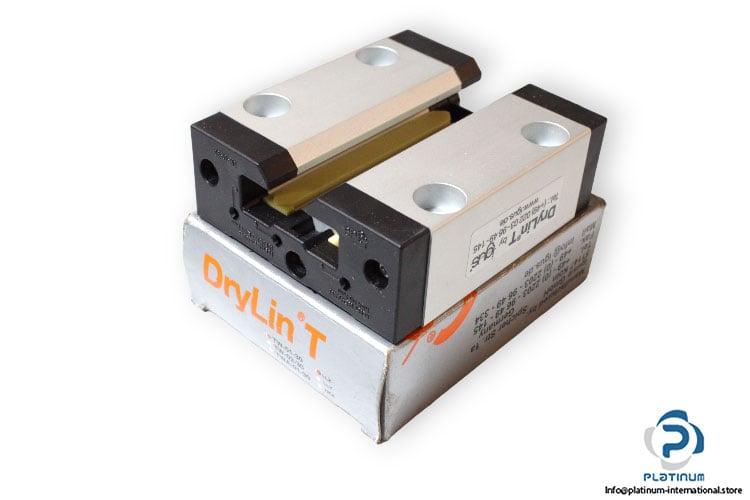

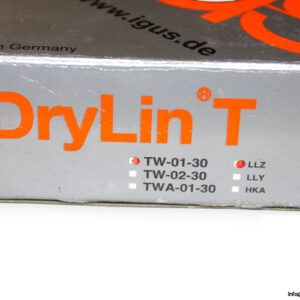

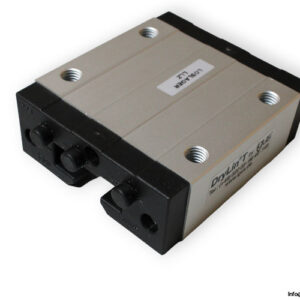

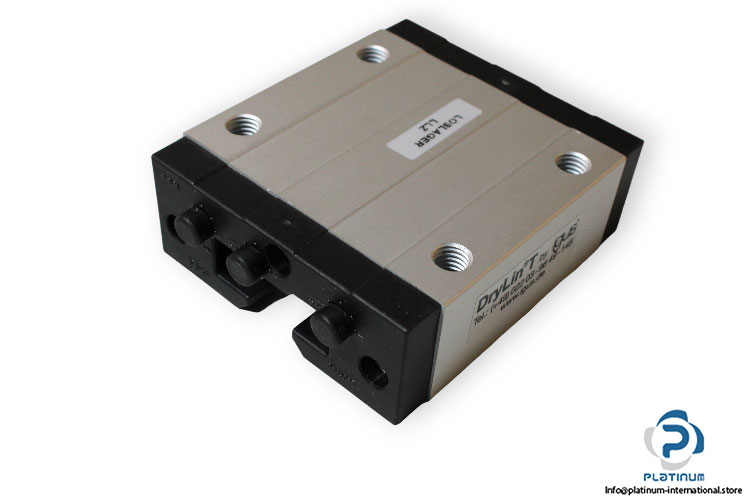

igus-TW-01-30-LLZ-linear-guide-carriage-(new)-without-carton

igus-TW-01-30-LLZ-linear-guide-carriage-(new)-without-carton-1

igus-TW-01-30-LLZ-linear-guide-carriage-(new)-without-carton-2

igus-TW-01-30-LLZ-linear-guide-carriage-(new)-without-carton-3

igus-TW-01-30-LLZ-linear-guide-carriage-(new)-without-carton-4

New

In stock1 unitReady to ship

Type: LINEAR GUIDE CARRIAGE WITH FLOATING BEARING IN Z-DIRECTION Model: TW 01 30 LLZ

Manufacturer:

IGUS

Manufacturer

IGUS

SKU

1057103

Category

Linear Motion

Condition

New

30 bearing Carriage Guide Guideway Igus Linear Motion TW

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: IGUS
Type: LINEAR GUIDE CARRIAGE WITH FLOATING BEARING IN Z-DIRECTION
Model: TW 01 30 LLZ

Size: 30

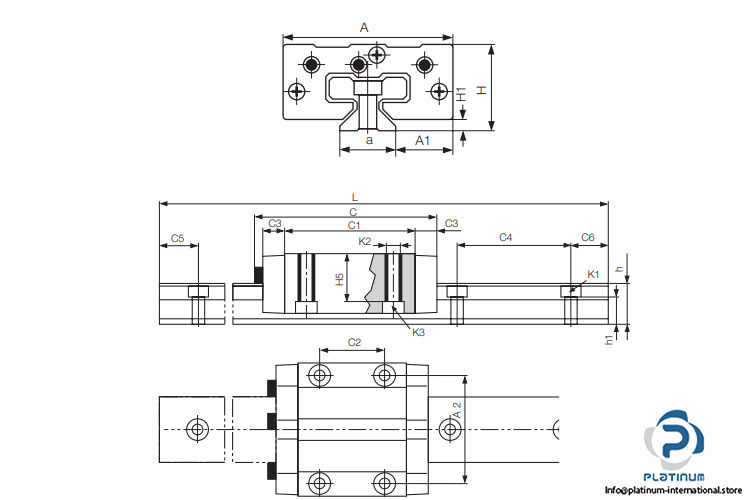

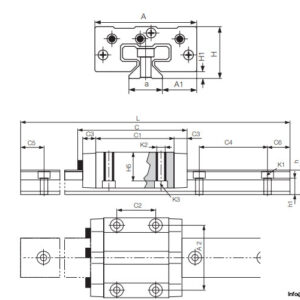

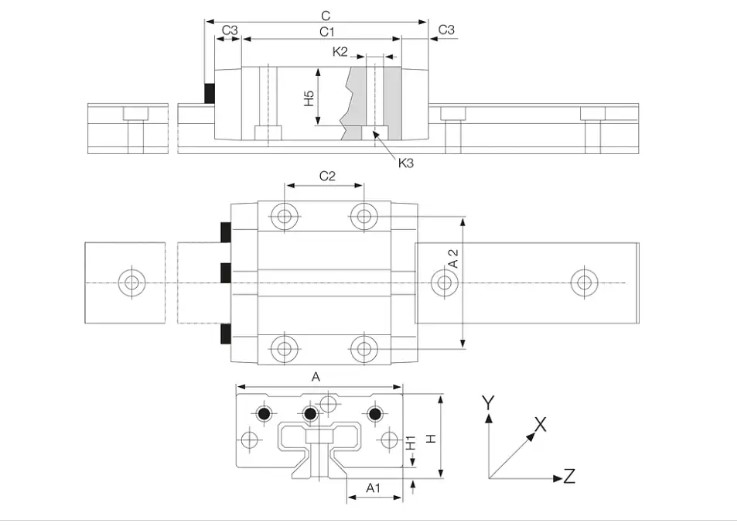

Dimensions
Total Height H: 42 mm
Block Height(H-H1): 35.5 mm
Block Width A: 90 mm
Block Length(C1+C3*2): 103 mm
Block Length Total C: 109 mm
C₁: 79 mm
A₂: 72 mm
C₂: 52 mm
Thread K2: M10
Thread K3: M8
Mounting Hole: 4 tapped holes
Torque Max.: 15 Nm
Static load capacity Coy: 14000 N
