Igus KSTM-16 Pillow Block Bearing
New
In stock8 unitsReady to ship
Pillow Block Bearing
Igus KSTM16 pillow block bearing for 16 mm shafts, offering controlled pivot movement and defined static load capacities.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

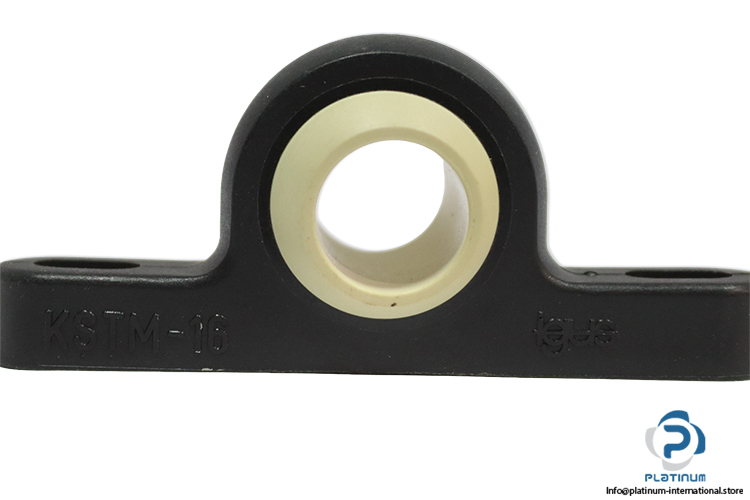

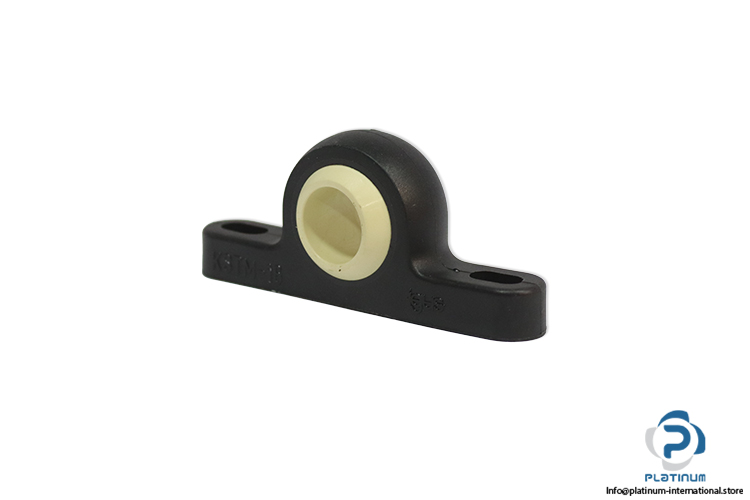

Igus KSTM16 Pillow Block Bearing
The Igus KSTM16 is a compact pillow block bearing designed for smooth shaft support and reliable load handling in industrial and mechanical applications.
Manufacturer: Igus
Type: Pillow Block Bearing
Model: KSTM16

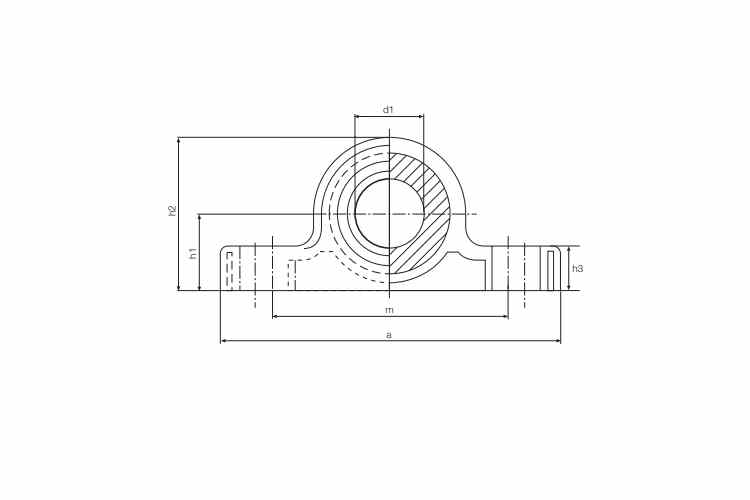

| Shaft Diameter | 16 mm |
| m | 60 mm |
| a | 86 mm |
| h1 | 18 mm |
| h2 | 36 mm |
| h3 | 10.5 mm |

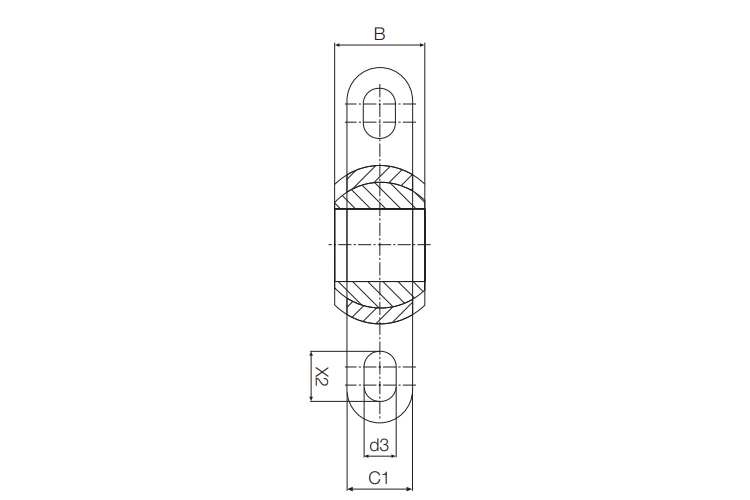

| C1 | 15 mm |
| x2 | 12 mm |
| B | 21 mm |
| d2 | 6.6 mm |
| Max. Static Radial Tensile Stress (Short-Term) | 3000 N |
| Max. Static Radial Tensile Stress (Long-Term) | 1500 N |
| Max. Axial Static Load (Short-Term) | 1800 N |
| Max. Axial Static Load (Long-Term) | 900 N |
| Max. Pivot Angle | 23° |
| Maximum Tightening Torque (Fastening) | 4.5 Nm |
