Rod End
Right-hand rod end with female thread, model KBRM25. Features M24 x 2.0 thread, 25 mm hole, and 22° pivot angle. Reliable design for industrial mechanical linkage applications.bearingComponentEndFemaleHandIgusIndustrialJointKBRM25LinkageMechanicalMotionPivotRightRODSystemThread
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

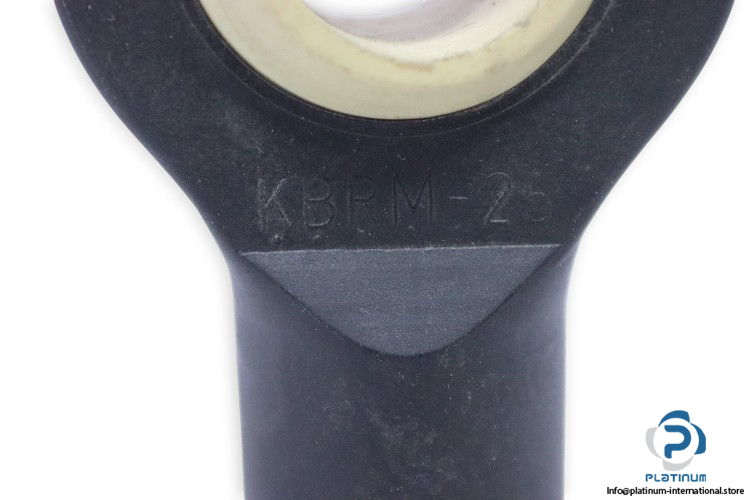

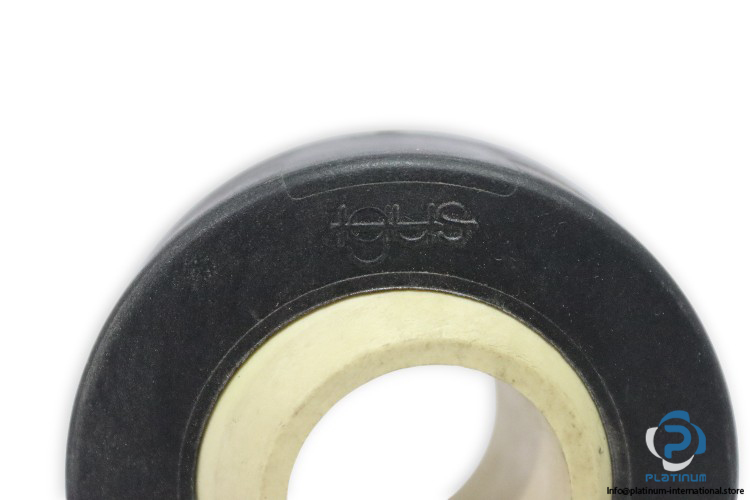

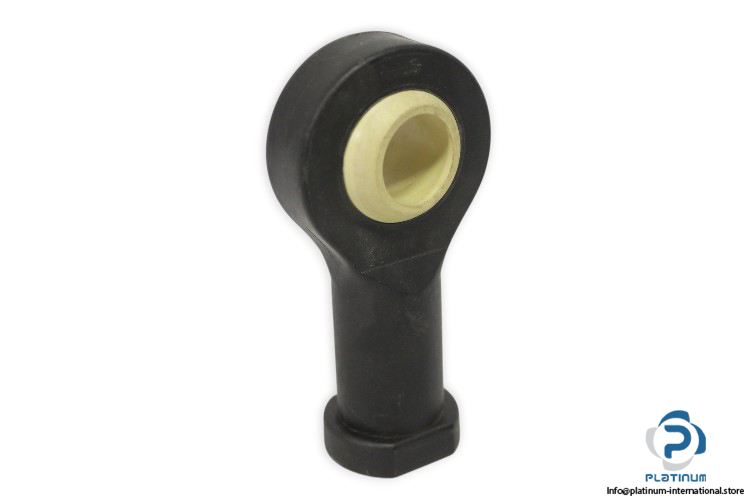

Igus KBRM25 Right-hand Rod End with Female Thread
The Igus KBRM25 is a durable right-hand rod end designed with a female thread for precise mechanical linkage and motion applications. It ensures smooth articulation and high wear resistance for industrial use.
Manufacturer: Igus
Type: Right-hand Rod End with Female Thread
Model: KBRM25

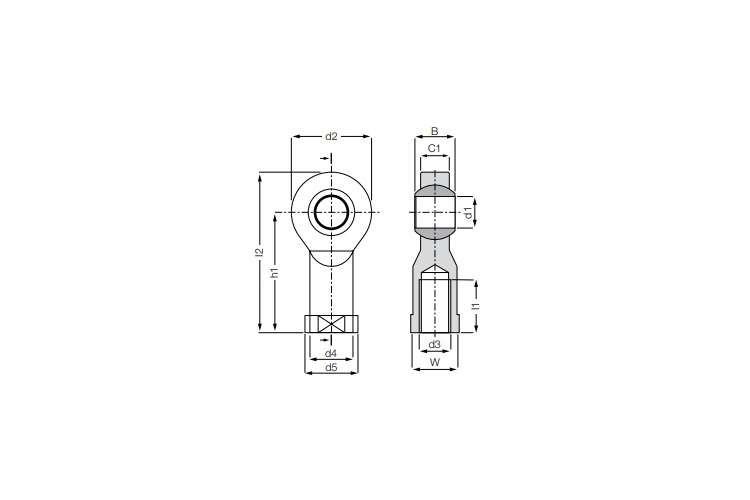

| Width B | 31 mm |
| Thread d3 | M24 x 2.0 |
| Hole Diameter d1 | 25 mm |
| Max. Pivot Angle | 22° |
| d2 | 60 mm |
| d4 | 32.0 mm |
| d5 | 41.0 mm |
| C1 | 22 mm |
| h1 | 94 mm |
| L1 | 42 mm |
| L2 | 124 mm |
