Rod End
Igus KBRM10 right-hand rod end with female M10 thread, designed for controlled pivot movement and reliable static load capacity in mechanical applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

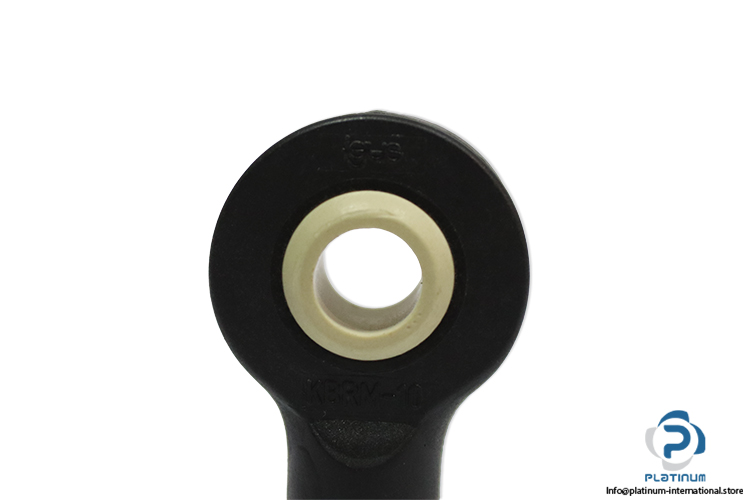

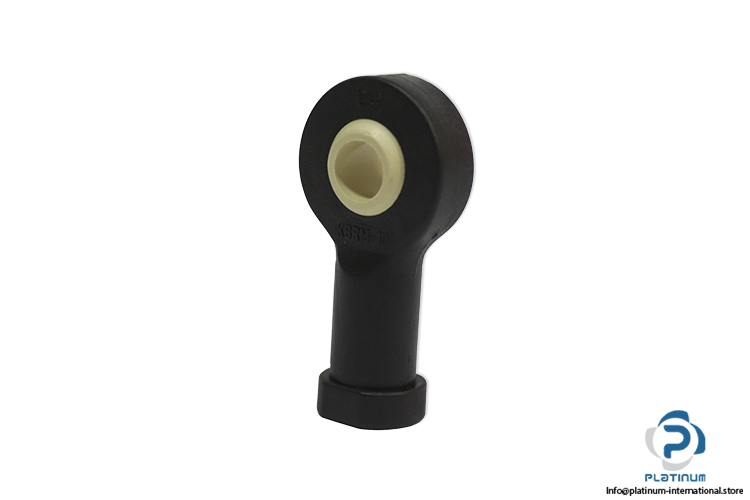

Igus KBRM10 Right-Hand Rod End
The Igus KBRM10 is a right-hand rod end with female thread, designed for precise articulation and reliable load handling in mechanical and industrial motion applications.
Manufacturer: Igus
Type: Right-Hand Rod End with Female Thread
Model: KBRM10
| Width B | 14 mm |
| Thread d3 | M10 |
| Hole Diameter d1 | 10 mm |
| Max. Pivot Angle | 25 degree |
| d2 | 30 mm |
| d4 | 15 mm |
| d5 | 19 mm |
| C1 | 10.5 mm |
| h1 | 43 mm |
| L1 | 20 mm |
| L2 | 58 mm |
| Maximum Static Tensile Stress (Short-Term) | 3,100 N |
| Maximum Static Tensile Stress (Long-Term) | 1,550 N |
| Maximum Radial Static Strength (Short-Term) | 800 N |
| Maximum Radial Static Strength (Long-Term) | 400 N |
| Max. Tightening Torque, Lead Screw | 15.00 Nm |
| Max. Tightening Torque Through Spherical Ball | 50.0 Nm |
