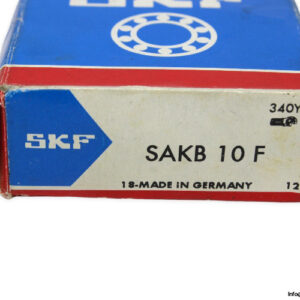

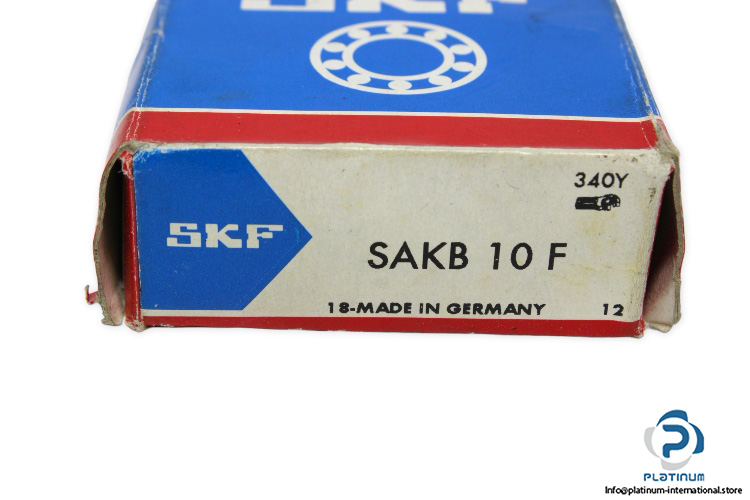

SKF Sakb 10 F ROD END

Manufacturer: SKF

Type: Rod end, maintenance-free, male thread

Model: SAKB10F

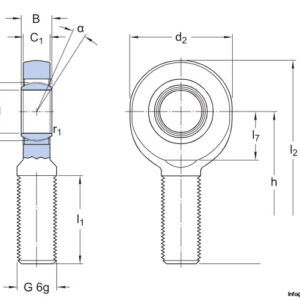

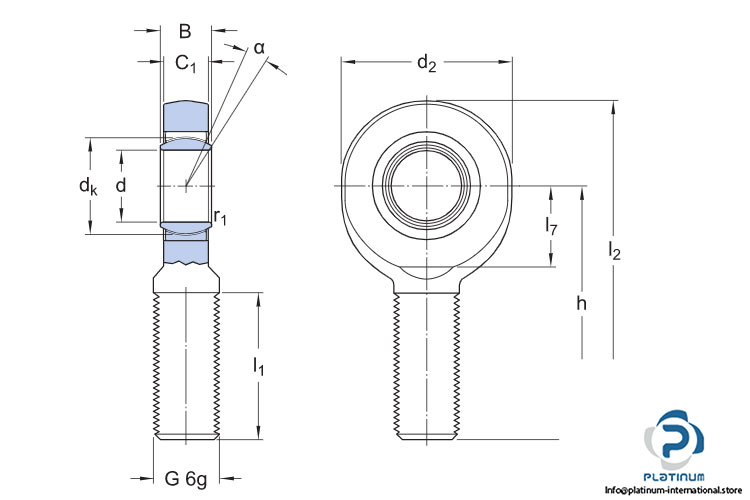

Dimensions:

Bore Diameter d: 10 mm

Diameter head d₂: 29 mm

Width inner ring B: 14 mm

Attachment feature, rod end shank: Right-hand male thread

Height shank end face – centre rod end eye h: 48 mm

Length threat l₁: 28 mm

Length (height) housing l₂: 64 mm

Thread G: M 10

Basic load ratings:

Dynamic C: 9.8 kN

Static C₀: 12.5 kN

Sliding contact surface combination: Steel/PTFE FRP
