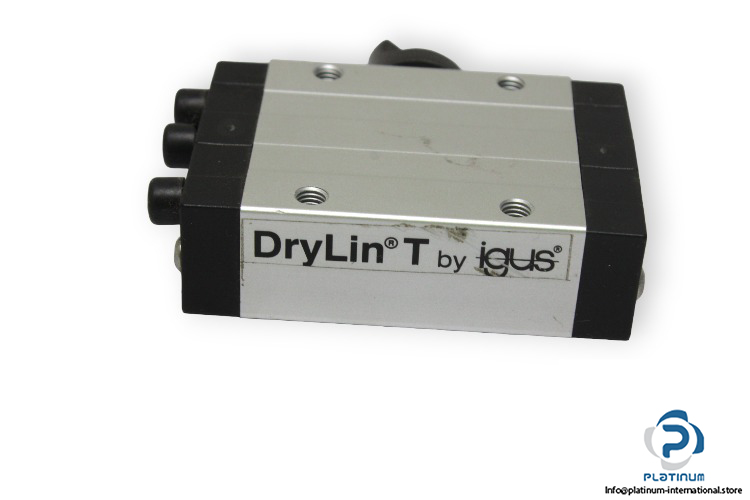

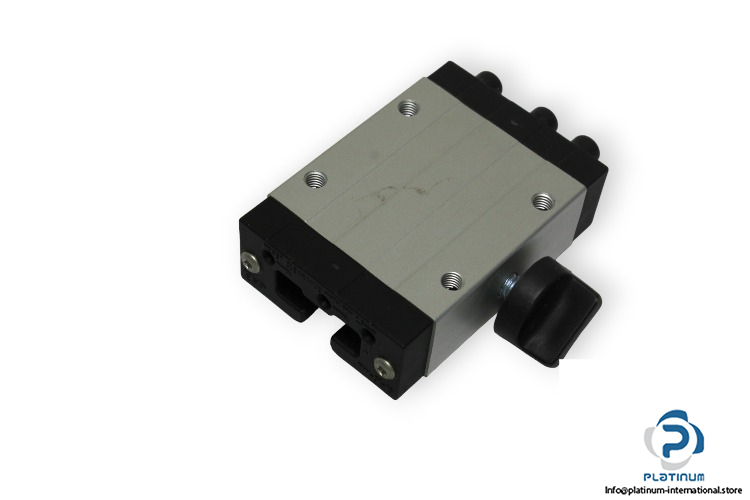

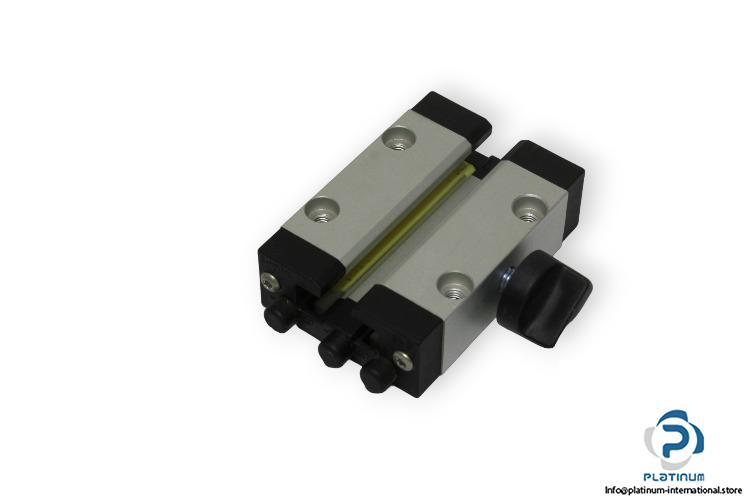

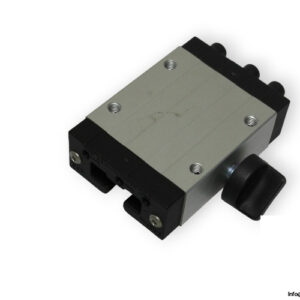

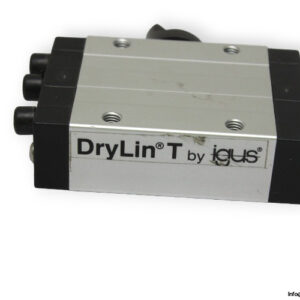

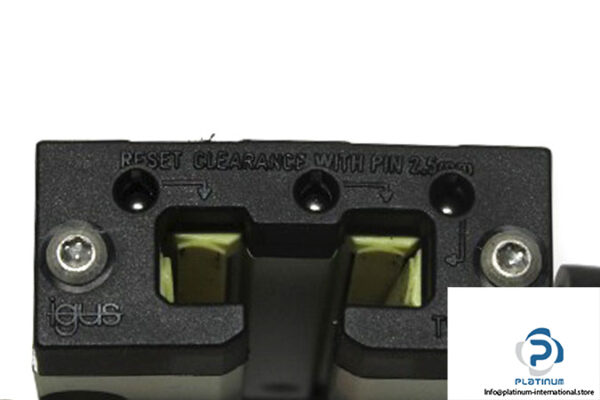

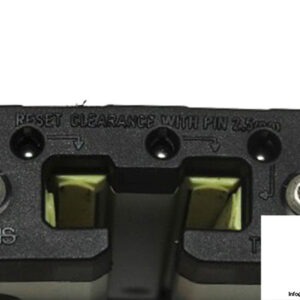

Igus TW-01-15 Linear Guide Carriage

Name: IGUS TW-01-15 LINEAR GUIDE CARRIAGE
SKU: 1057102
Availability: LimitedAvailability

igus-TW-01-15-linear-guide-carriage-(new)

igus-TW-01-15-linear-guide-carriage-(new)-1

igus-TW-01-15-linear-guide-carriage-(new)-2

igus-TW-01-15-linear-guide-carriage-(new)-3

igus-TW-01-15-linear-guide-carriage-(new)-4

New

In stock1 unitReady to ship

Model: TW 01 15

Manufacturer:

IGUS

Type:

LINEAR GUIDE CARRIAGE

Manufacturer

IGUS

SKU

1057102

Category

Linear Motion

Condition

New

15 bearing Carriage Guide Guideway Igus Linear Motion TW

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: IGUS
Type: LINEAR GUIDE CARRIAGE
Model: TW 01 15

Size: 15

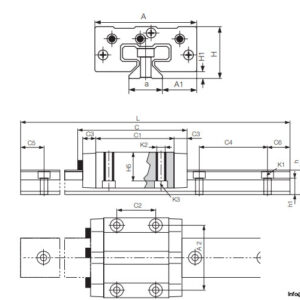

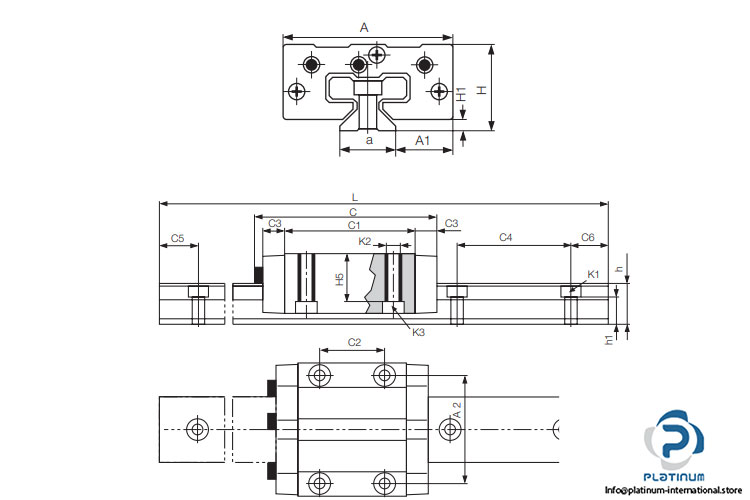

Dimensions
Total Height H: 24 mm
Block Height(H-H1): 20 mm
Block Width A: 47 mm
Block Length(C1+C3*2): 68 mm
Block Length Total C: 74 mm
C₁: 50 mm
A₂: 38 mm
C₂: 30 mm
Thread K2: M5
Thread K3: M4
Mounting Hole: 4 tapped holes
Torque Max.: 1.5 Nm
Static load capacity Coy: 4000 N
