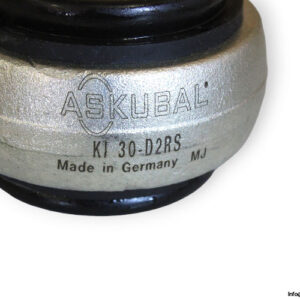

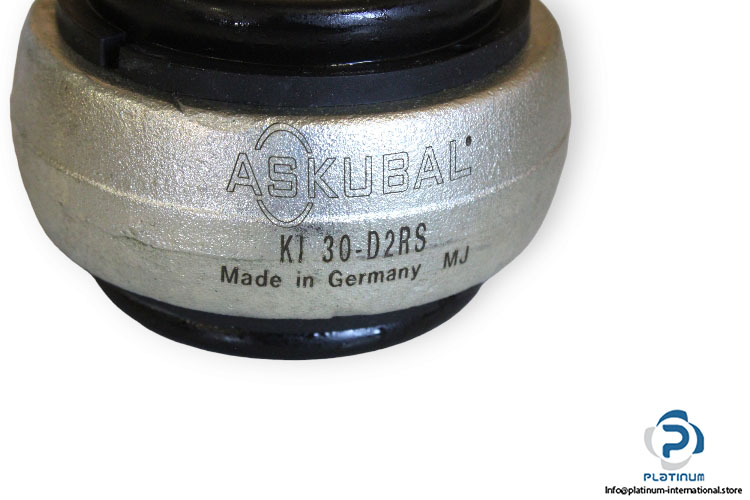

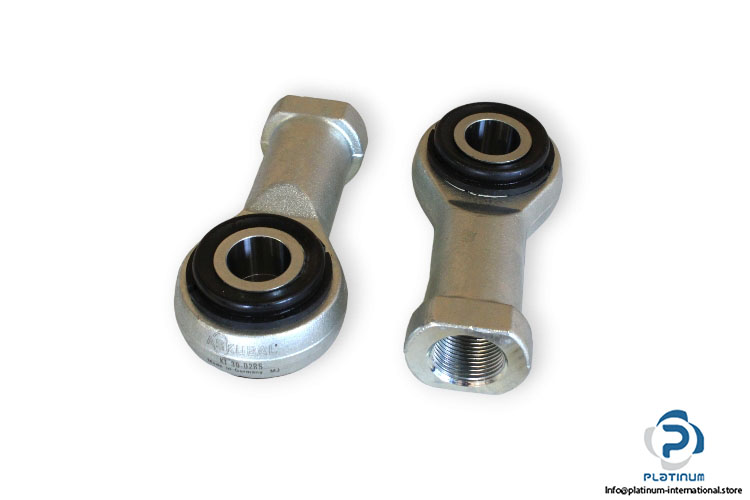

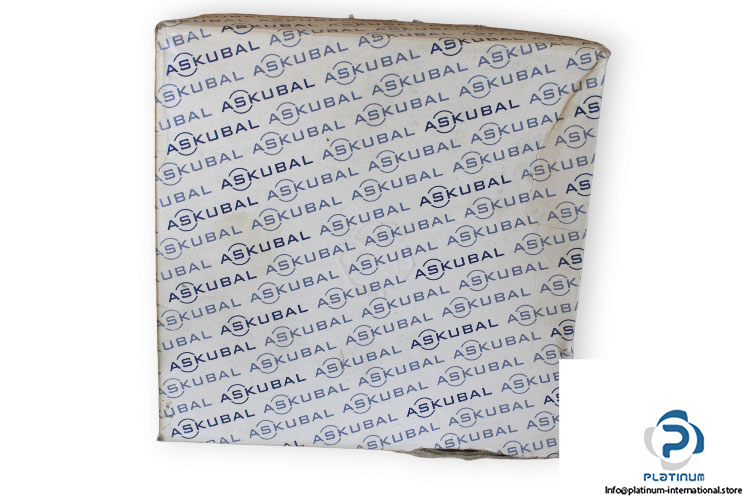

Askubal KI 30-D2RS ROD END

Manufacturer: ASKUBAL
Type: Heavy-duty rod ends
Model: KI30-D2RS

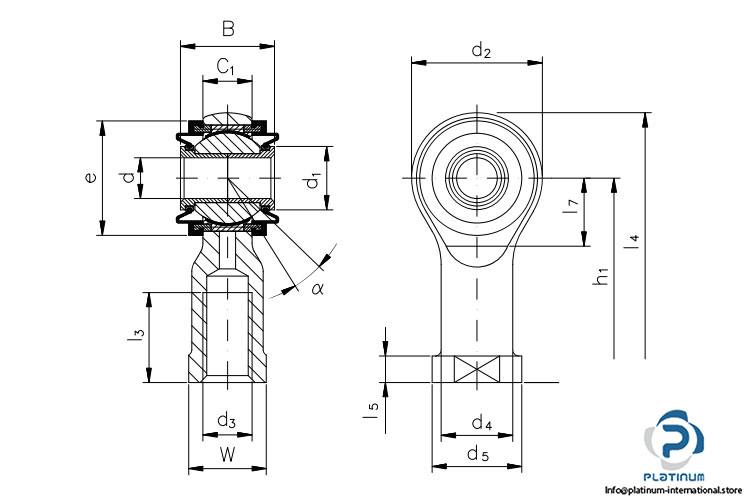

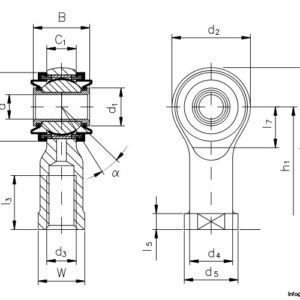

Dimensions:
Bore Diameter d: 25 mm
Diameter head d₂: 71 mm
Width inner ring B: 44 mm
Attachment feature, rod end shank: Right-hand female thread
Height shank end face – centre rod end eye h₁: 110 mm
Length threat l₃: 45 mm
Length (height) housing l₄: 145.5 mm
Thread d₃: M30x2
Basic load ratings:
Dynamic C: 64 kN
Static C₀: 82 kN
Item per set: 2
