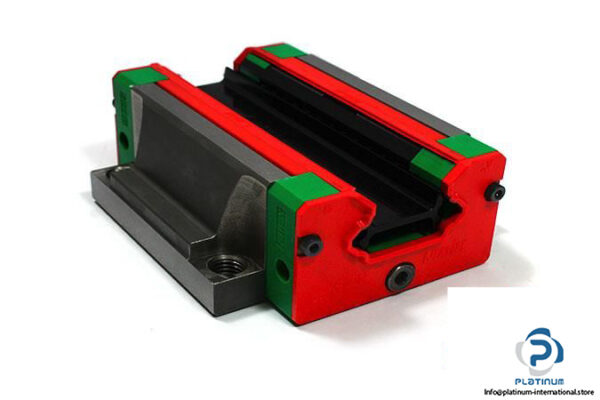

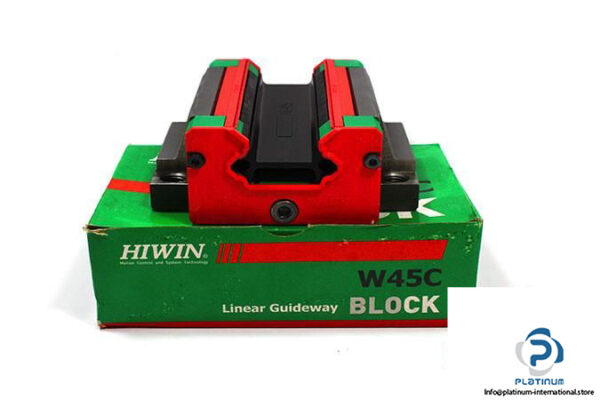

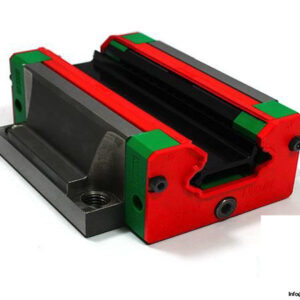

HIWIN HGW45CC LINEAR GUIDEWAY BLOCK

This heavy-duty linear guideway block by Hiwin is built for precise motion control under high loads. Engineered for strength and smooth linear travel, it supports both top and bottom mounting and is ideal for demanding industrial automation applications.

Manufacturer: Hiwin
Type: Linear Guideway Block

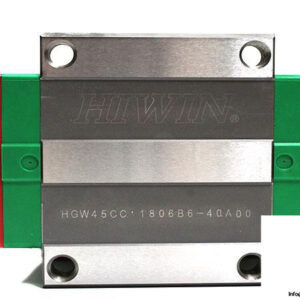

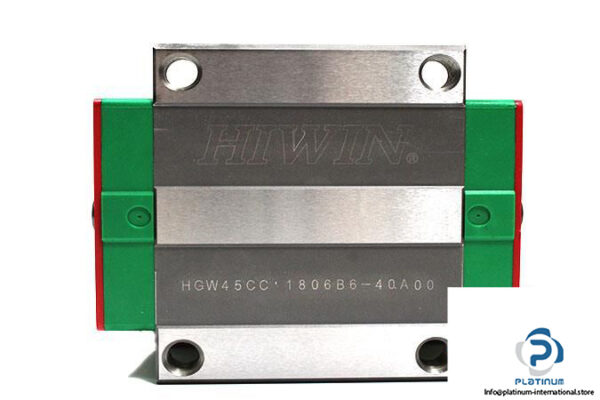

MNR: HGW45CC 1806B6-40A00

Technical Information

• Size: 45 mm
• Block Height: 50.5 mm
• System Height: 60 mm
• Block Width (W): 120 mm
• Block Length (L): 139.4 mm
• Thread Size: M12 x 35
• Distances Between Holes: 100 mm, 80 mm
• Rail Width: 45 mm
• Rail Height: 38 mm
• Block Type: Flange
• Load Type: Heavy Load
• Block Mounting Type: Top or Bottom
• Basic Dynamic Load Rating: 103.8 kN
• Basic Static Load Rating: 146.71 kN
