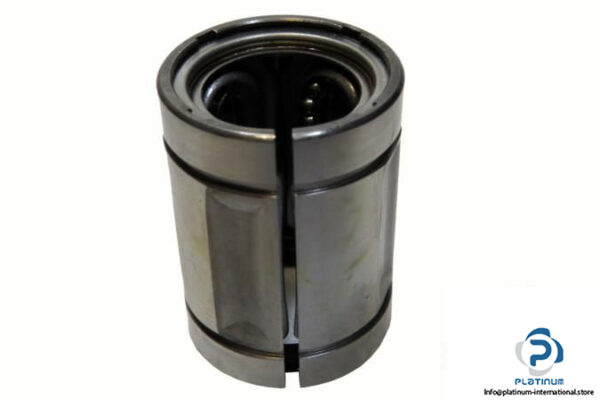

Manufacturer: REXROTH
Type: Standard Linear Bushing
MNR: R0611 016 10
Dimensions:
Shaft diameter d0: 16 mm
Rows of Balls: 4
Dynamic Load rating:
Cmin: 580 N
Cmax: 670 N
Static Load rating:
C0min: 440 N
C0max: 620 N
Dimensions:
D: 26 mm
C: 36 mm
Seals: One wiper seal
Permissible Ambient Temperature: -10 … +80 °C
