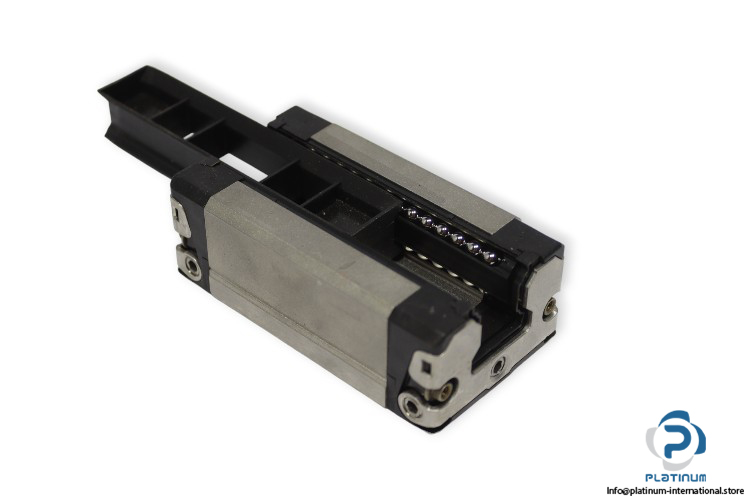

Rexroth R201129404 Ball Runner Block

Manufacturer: REXROTH
Type: Ball Runner Block Resist Nrii, SNS

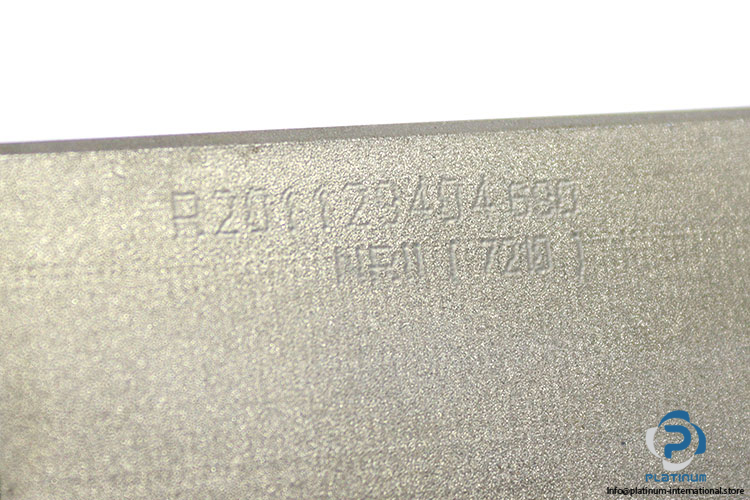

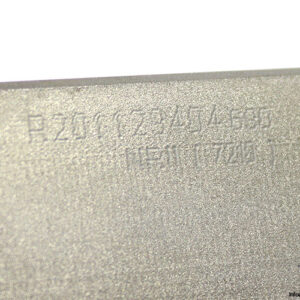

MNR: R2011 294 04

Size: 25 mm
Format: SNS – slimline, normal, standard height
Material (profiled rail systems): Corrosion resistant steel (Resist NR II)
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 15000 N
Static load rating C0: 21000 N
Dynamic Torsional Moment Load Capacity M_t:  270 Nm
Static longitudinal moment load capacity ML0: 165 Nm
Dynamic longitudinal moment load capacity ML: 150 Nm
Static torsional moment load capacity Mt0: 295 Nm
Accuracy Class: N – Normal
Preload Class: C0 – Without preload (clearance)

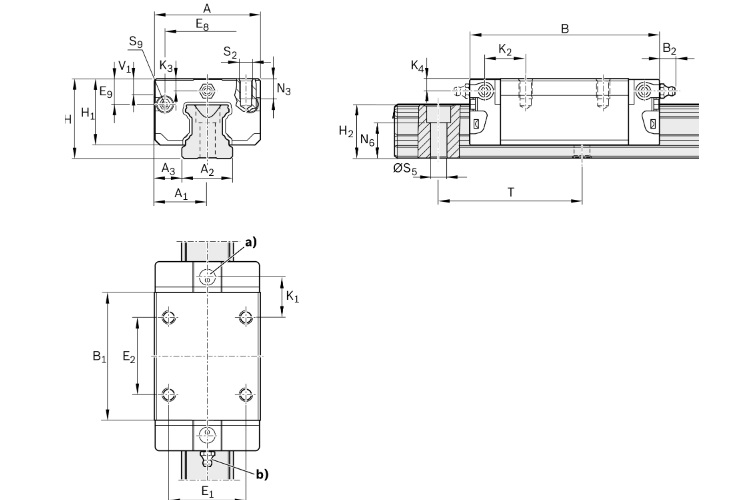

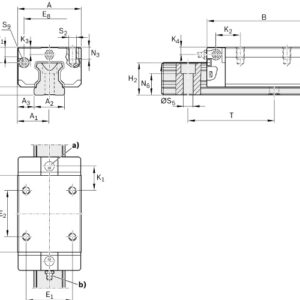

Dimensions
Width (A): 48 mm
Length (B): 86.2 mm
Height of system(H): 36 mm
Height of block (H₁): 29.9 mm
E1: 35 mm
E2: 35 mm
Admissible Operating Temperature: -10 °C … +80 °C
