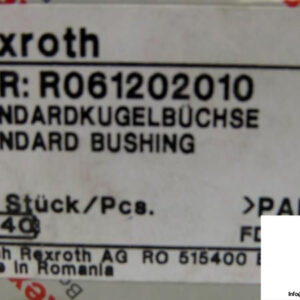

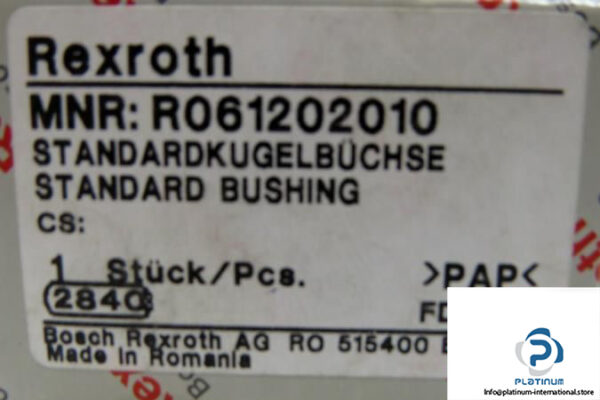

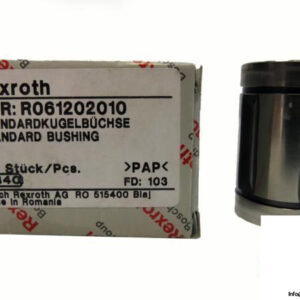

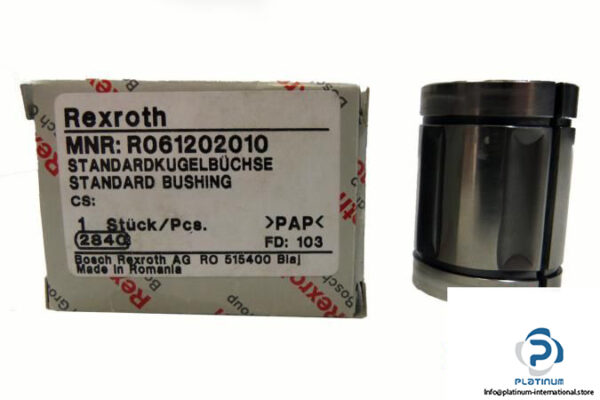

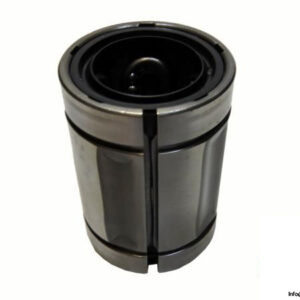

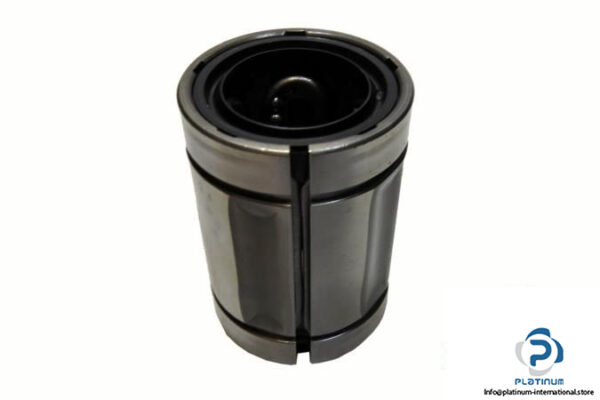

Manufacturer: REXROTH
Type: Adjustable Standard Linear Bushing Kbm-E
MNR: R0612 020 10

Form: Adjustable
Dimensions:
Shaft diameter d0: 20 mm
Rows of Balls: 5
Maximum Acceleration Travel amax:  100 m/s2
Max. Permissible Speed v_max: 2.5 m/s
Breakaway force: 12 N
Dynamic Load rating:
C_min: 1170 N
C_max: 1390 N
Static Load rating:
C_0min: 860 N
C_0max: 1250 N
Dimensions:
D: 32 mm
C: 45 mm
C1: 31.2 mm
C2: 1.60 mm
D1: 30.5 mm
E: 2 mm
Seals: With two integrated wiper seals
Permissible Ambient Temperature: -10 … +80 °C
