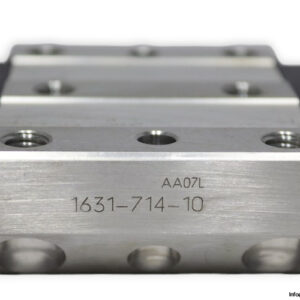

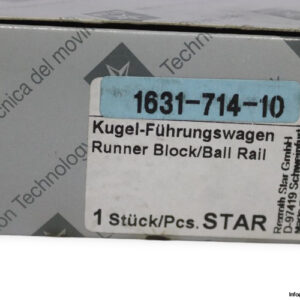

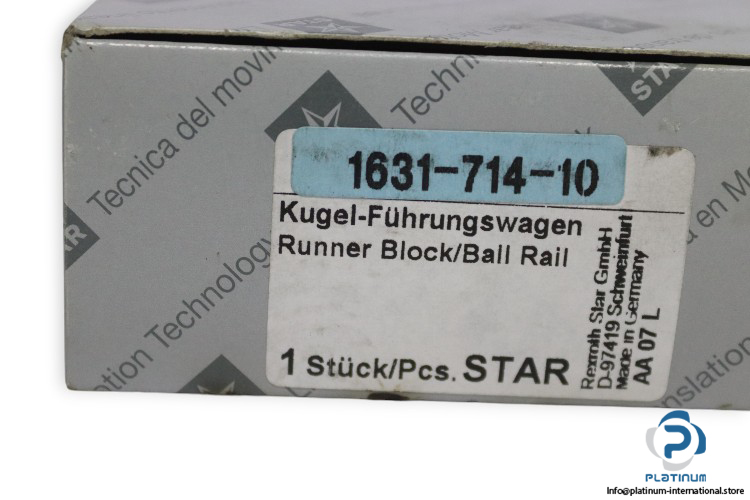

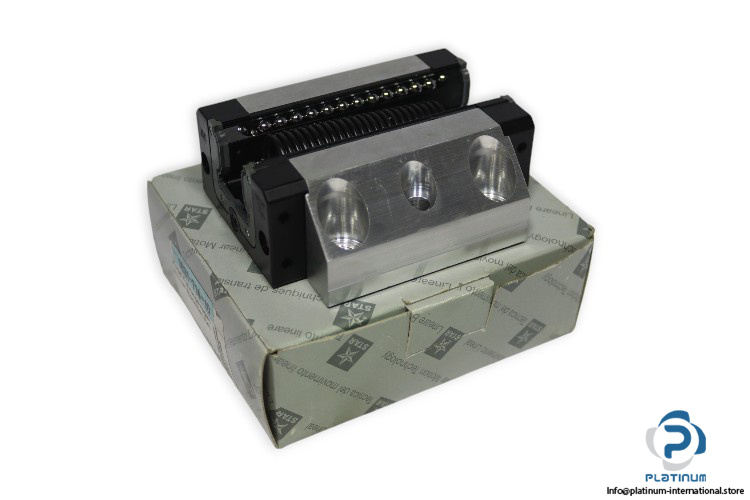

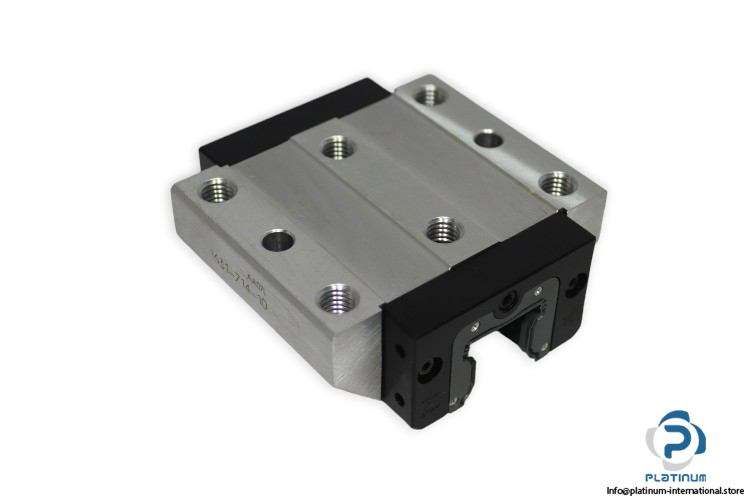

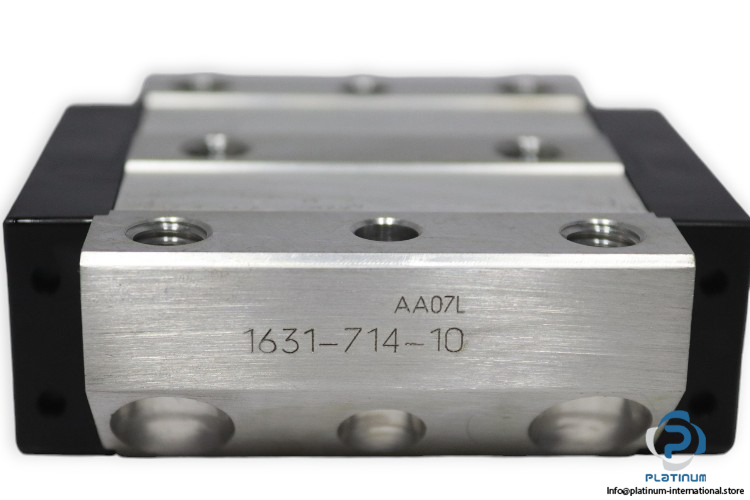

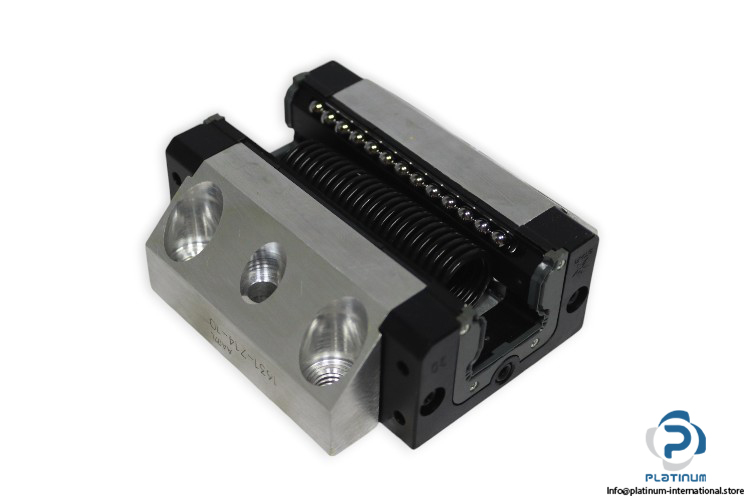

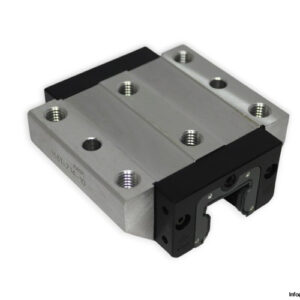

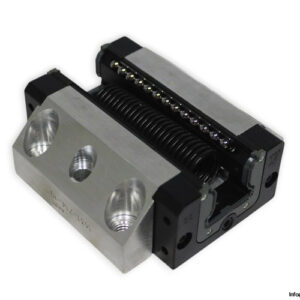

Rexroth Star 1631-714-10 Ball Runner Block

Manufacturer: REXROTH STAR
Type: BALL RUNNER BLOCK FNS
MNR: 1631 714 10

Size: 30 mm

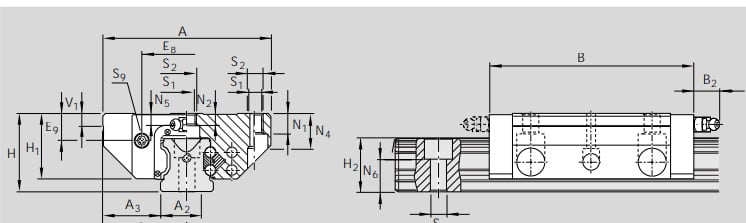

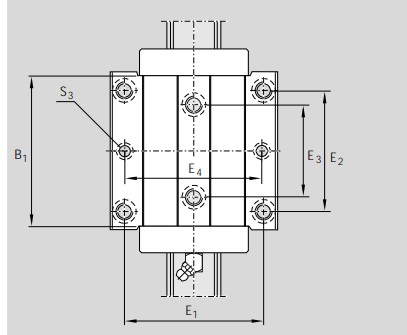

Dimensions
Width (A): 90 mm
Length (B): 94 mm
Height of runner block: 35 mm
Height runner block with guide rail: 42 mm

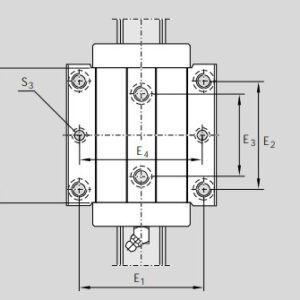

E1: 72 mm
E2: 52 mm
Format: FNS – Flanged, Normal, Standard Height
Dynamic Load Capacity C: 31700 N
Permissible load: 12200 N
Max. acceleration a max: 500 m/s²
Maximum permissible linear speed v max: 5 m/s
Dynamic Torsional Moment Load Capacity M_t: 540 Nm
Dynamic Torsional Moment Load Capacity Mt max: 210 Nm
Dynamic longitudinal moment load capacity ML: 290 Nm
Dynamic longitudinal moment load capacity ML max : 110 Nm
Accuracy Class: N – Normal
Preload Class: C1 – Low Preload
