Rexroth Standard Linear Bushing KBM-O-40-DD
The Rexroth Standard Linear Bushing KBM-O-40-DD is designed for high precision and durability, offering robust performance in industrial applications with high dynamic and static load capacities.
Manufacturer: Rexroth
Model: KBM-O-40-DD
Type: Standard Linear Bushing

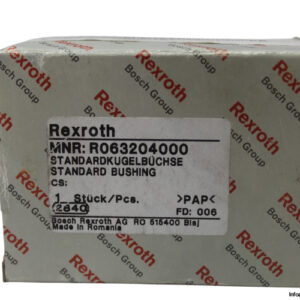

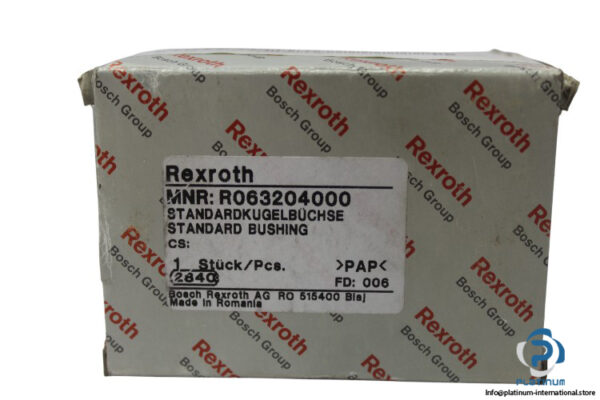

MNR: R063204000

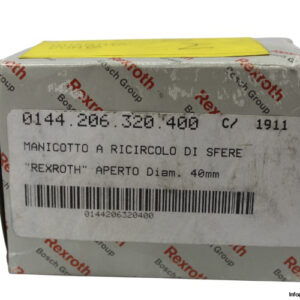

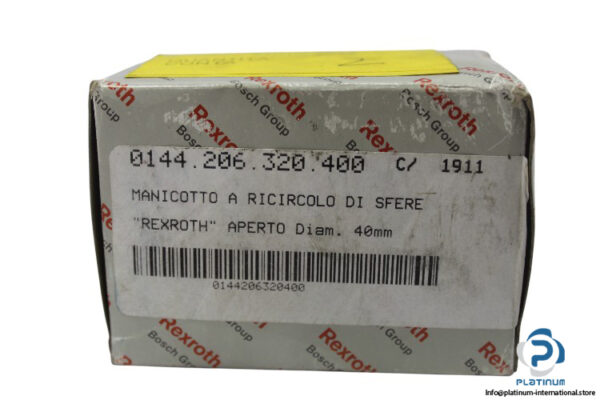

COMAS P/N: 0144.206.320.400

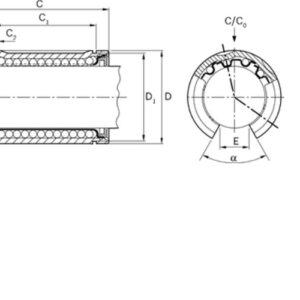

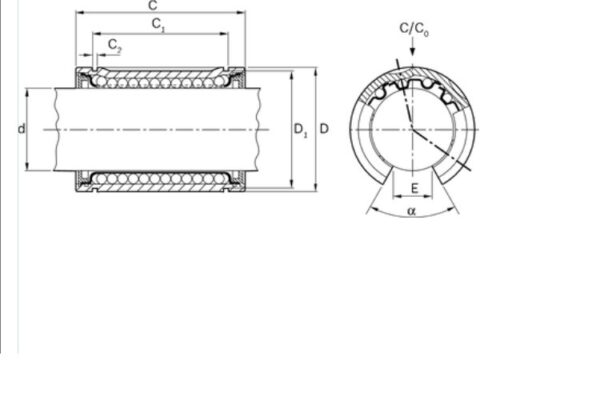

Technical Information:
- Shaft Diameter (d): 40 mm
- Length of Linear Bushing: 80 mm
- Outer Diameter: 62 mm
- C1: 60.3 mm
- C2: 2.15 mm
- D1: 58 mm
- E: 16.8 mm
- Design Type: Open type
- Permissible Ambient Temperature: -10 to 80 °C
- Dynamic Load Capacity (C): 5280 N
- Static Load Capacity (C0): 4000 N
- Angle (°): 50
- Sealing: 2 integrated wiper seals
