Rexroth Star R162211410 Ball Runner Block SNS
The Rexroth Star R162211410 is a precision-engineered ball runner block designed for linear motion applications. Featuring the Slimline Normal Standard Height (SNS) design, it offers high load capacity, robust carbon steel construction, and smooth operation under demanding conditions.
Manufacturer: Rexroth Star
Type: Ball Runner Block SNS
MNR: R162211410

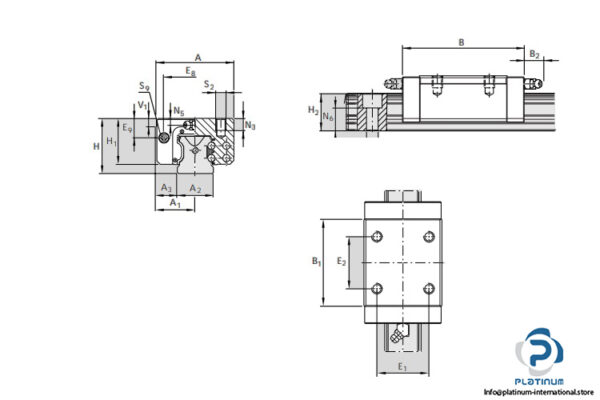

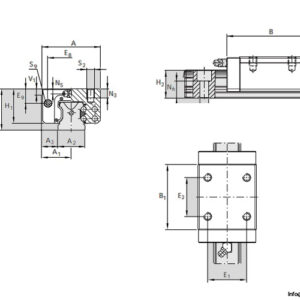

Technical information
- Size: 15 mm
- Width (A): 34 mm
- Length (B): 54 mm
- Height of System (H): 24 mm
- Height of Block (H1): 19.8 mm
- E1: 26 mm
- E2: 26 mm
- Mechanical Format: KWC
- Design: SNS “ Slimline, Normal, Standard Height
- Material (Profiled Rail Systems): Carbon steel
- Maximum Acceleration (amax): 500 m/s²
- Maximum Permissible Speed (vmax): 5 m/s
- Dynamic Load Capacity (C): 7800 N
- Static Load Capacity (C0): 13500 N
- Dynamic Torsional Moment Load Capacity (Mt): 74 Nm
- Dynamic Longitudinal Moment Load Capacity (ML): 40 Nm
- Accuracy Class: N “ Normal
- Preload Class: C1
- Admissible Operating Temperature: -10 °C / +80 °C
