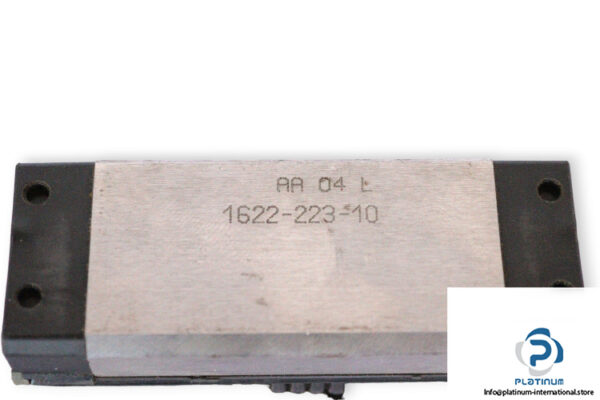

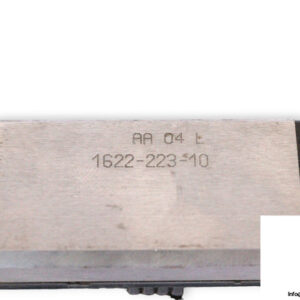

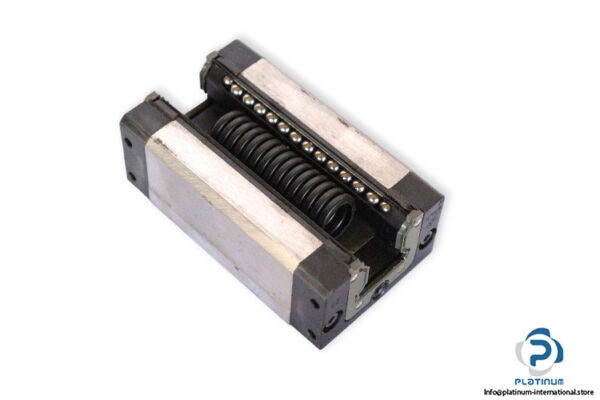

Rexroth Star R162222310 Ball Runner Block

The Rexroth Star R162222310 is a precision-engineered ball runner block designed for linear motion applications. With high load capacities, compact design, and accuracy class H, it ensures smooth, efficient, and reliable performance in demanding industrial environments.

Manufacturer: Rexroth Star
Type: Ball Runner Block
MNR: R162222310

Technical information

• Size: 25 mm

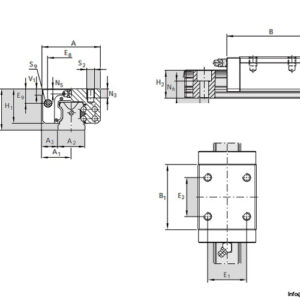

Dimensions

• A: 48 mm
• A1: 24 mm
• A2: 23 mm
• A3: 12.5 mm
• B: 81 mm
• B1: 57.8 mm
• H: 36 mm
• H1: 29.5 mm
• E1: 35 mm
• E2: 35 mm

Load Capacities

• Dynamic C: 22,800 N
• Static C0: 30,400 N

• Accuracy Class: Class H
