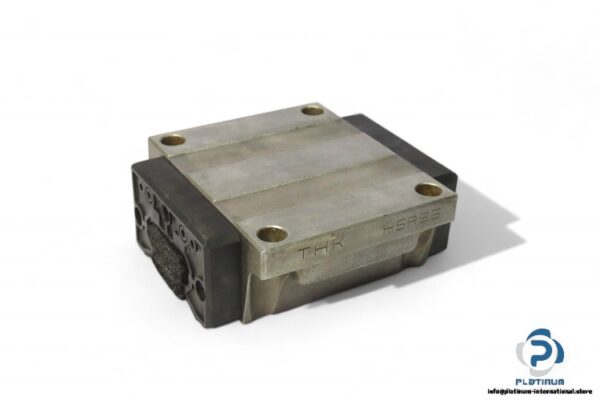

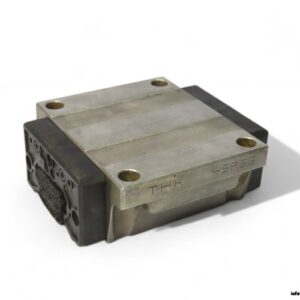

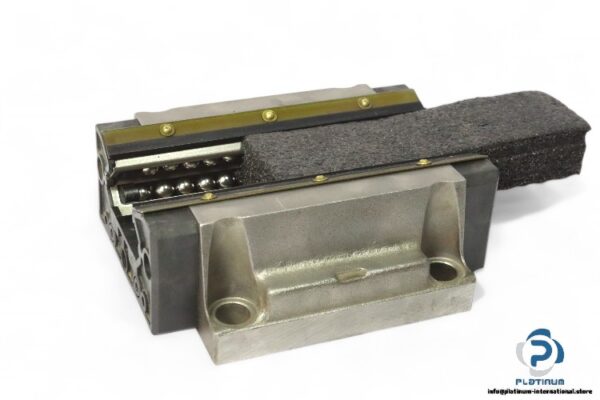

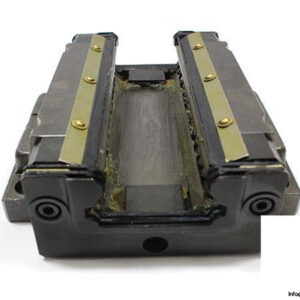

Manufacturer: THK
Type: LINEAR BEARING BLOCK
Model: HSR55B
Size: 55 mm
Dimension
Length L: 163 mm
Width W: 140 mm
System Height: 70 mm
Block Height K: 57 mm
Rail Width W1: 53 mm
B: 116 mm
C: 95 mm
Block Type: Flange
Type of LM block: B
Basic Dynamic Load Rating: 121 kN
Basic Static Load Rating: 146 kN
Mounting hole: 4 through holes
