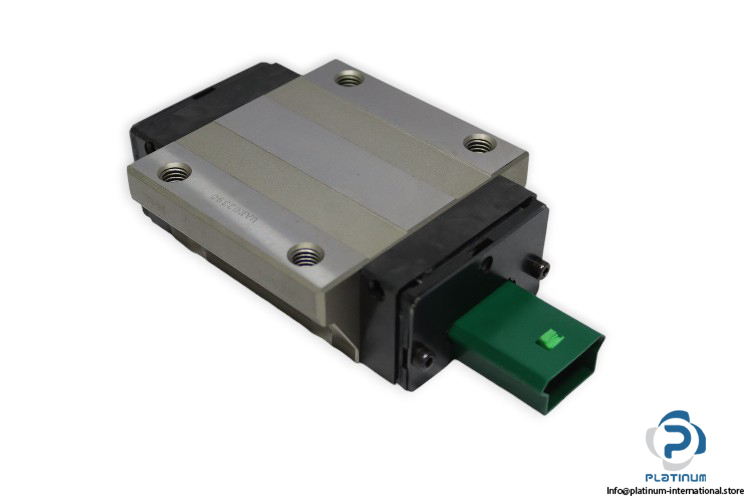

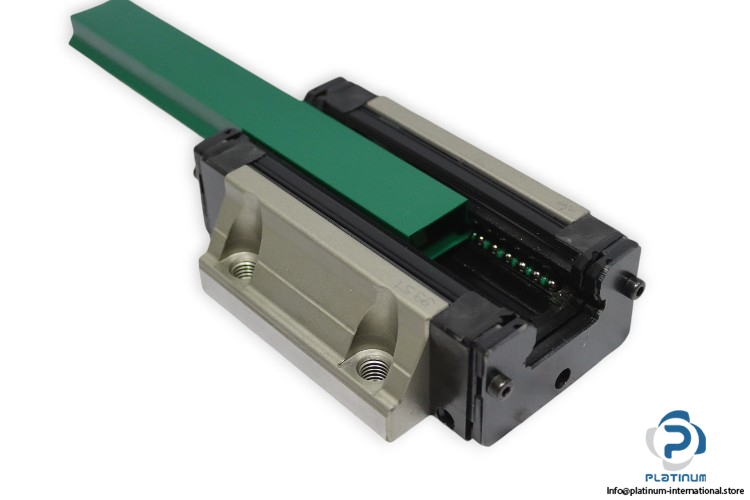

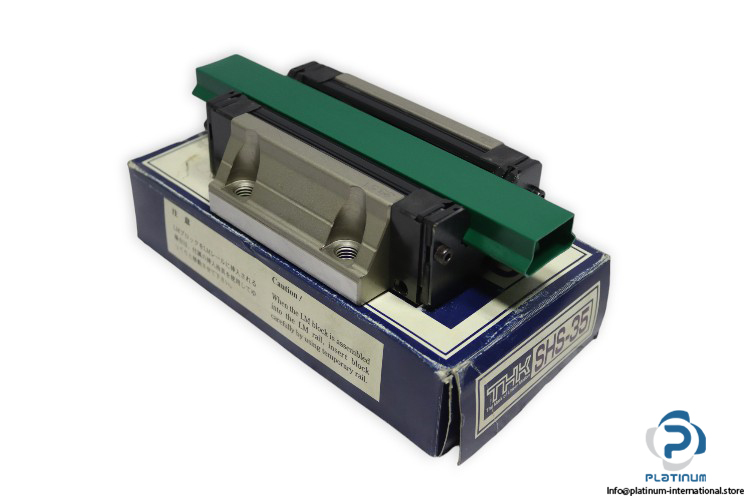

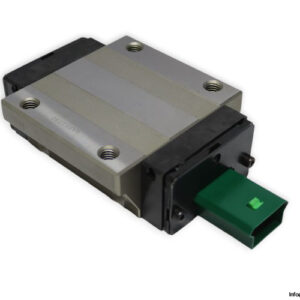

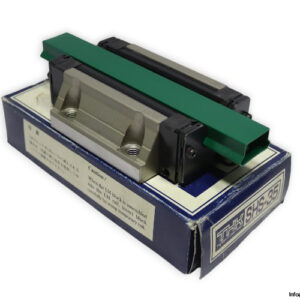

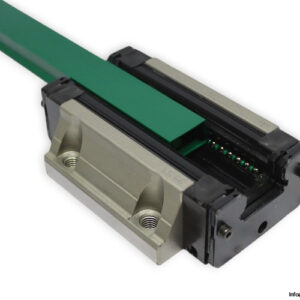

THK SHS35 CKK Linear Bearing Block

Manufacturer: THK
Type: LINEAR BEARING BLOCK
Model: SHS35-CKK

Size: 35

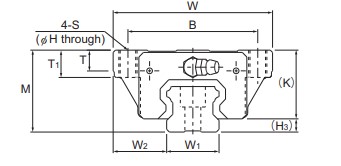

Dimensions
Total Height M: 48 mm
Block Height K: 40.5 mm
Block Width W: 100 mm
Block Length L: 122 mm
L₁: 93 mm
B: 82 mm
C: 62 mm
Block Type: Flange Type
Mounting Hole: 4 tapped holes
Basic Load Ratings:
Dynamic C: 62.3 kN
Static C₀: 96.6 kN
Preload: C, Normal
Protection accessory: kk; With double seals + side seal + inner seal  + metal scraper
