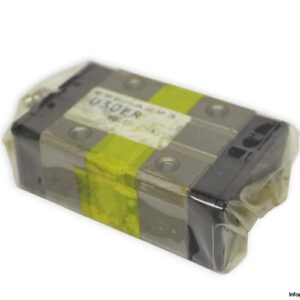

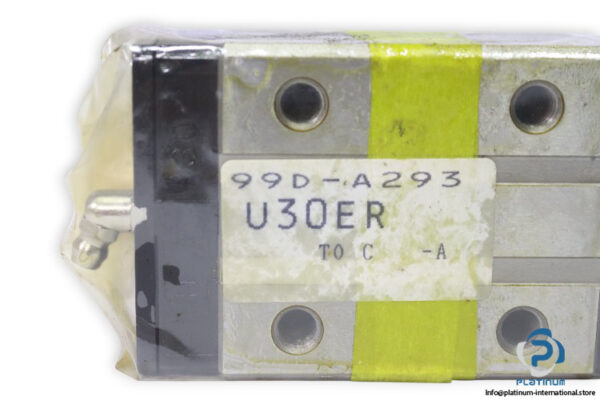

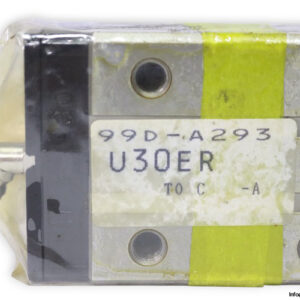

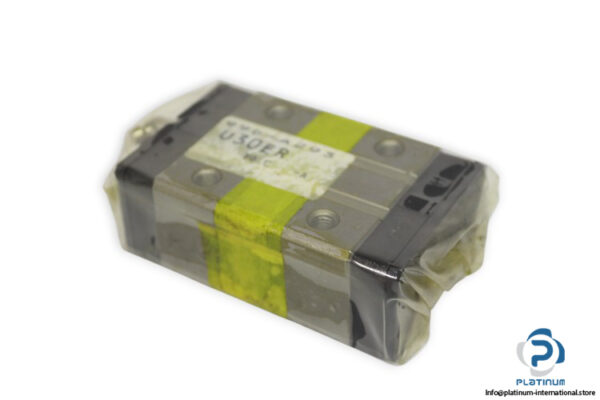

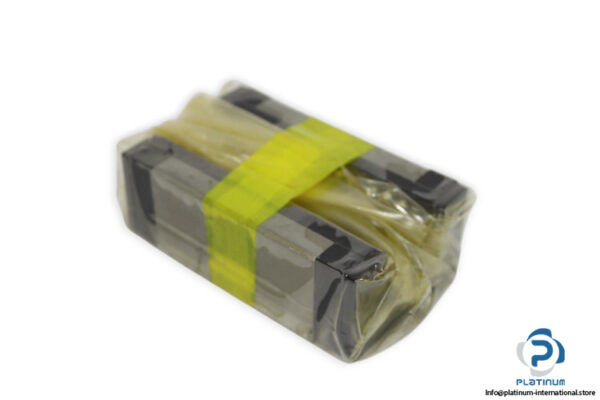

Tsubaki U30ER Linear Bearing Block
The Tsubaki U30ER is a precision linear bearing block designed for smooth and accurate linear motion in industrial applications. With a square block design, strong load ratings, and compatibility with corresponding rails, it ensures high reliability and durability for demanding systems.
Manufacturer: Tsubaki
Type: Linear Bearing Block
Model: U30ER
Size: 30 mm

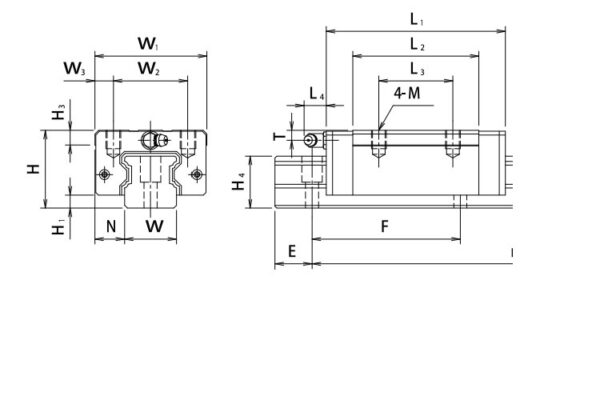

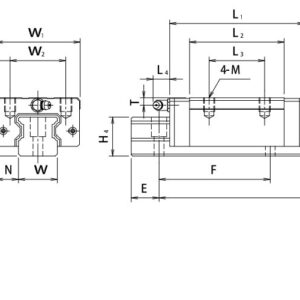

Technical information
- Total Height H: 42 mm
- Block Height (H-H1): 35 mm
- Width W1: 60 mm
- Block Length L1: 97 mm
- Pitch: 40 mm
- Block Type: Square Type
- Mounting Hole: M 8×10
Basic Load Ratings
- Dynamic C50: 29,100 N
- Dynamic C100: 23,100 N
- Static C0: 52,110 N
Additional Information
- Note: We also provide the corresponding rails (guideways) in a wide range of lengths”please ask us if you need rails to match your bearing.
