Tsubaki H30EA Linear Bearing Block

Name: TSUBAKI H30EA LINEAR BEARING BLOCK
SKU: 1057114
Price: 69.99 USD
Availability: InStock

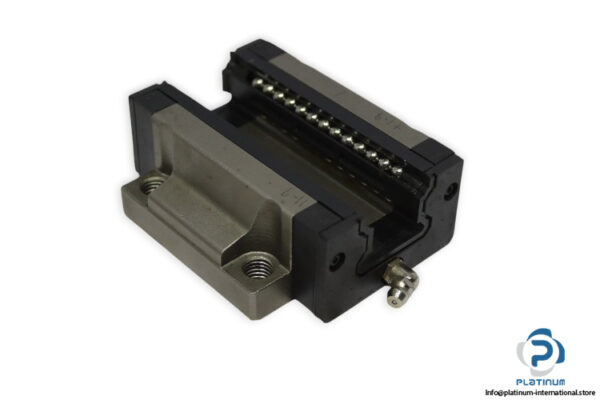

tsubaki-H30EA-linear-bearing-block-(used)

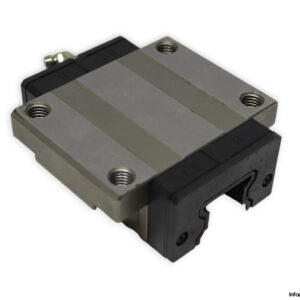

tsubaki-H30EA-linear-bearing-block-(used)-1

tsubaki-H30EA-linear-bearing-block-(new)-4

Used

In stock5 unitsReady to ship

69,99$

Manufacturer:

TSUBAKI

Type:

LINEAR BEARING BLOCK

Model:

H30EA

Manufacturer

TSUBAK

SKU

1057114

Category

Linear Motion

Condition

Used

30 bearing bearings Guideway Linear mm Motion Tsubaki

New In stock 59,99$

This product is also available brand new

View New Version →

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: TSUBAKI
Type: LINEAR BEARING BLOCK
Model: H30EA

Size: 30 mm

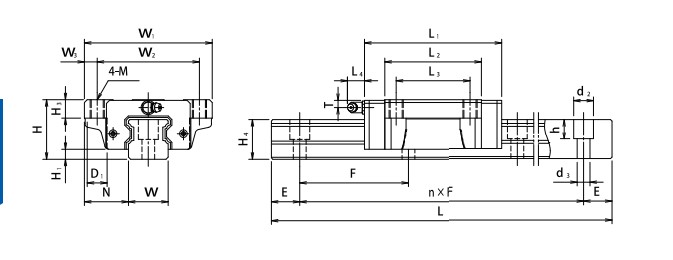

Dimensions
Total Height H: 42 mm
Block Height(H-H1): 35 mm
Width N: 31 mm
Width W₁: 90 mm
Width W₃: 9 mm
Block Length L₁: 97 mm
L₂: 68 mm
L₃: 52 mm
W₂: 72 mm
Block Type: Flange Type
Mounting Hole: 4 Tapped holes (M10×13)
Basic Load Ratings:
Dynamic C₅₀: 29100 N
Dynamic C₁₀₀: 23100 N
Static C₀: 52110 N
