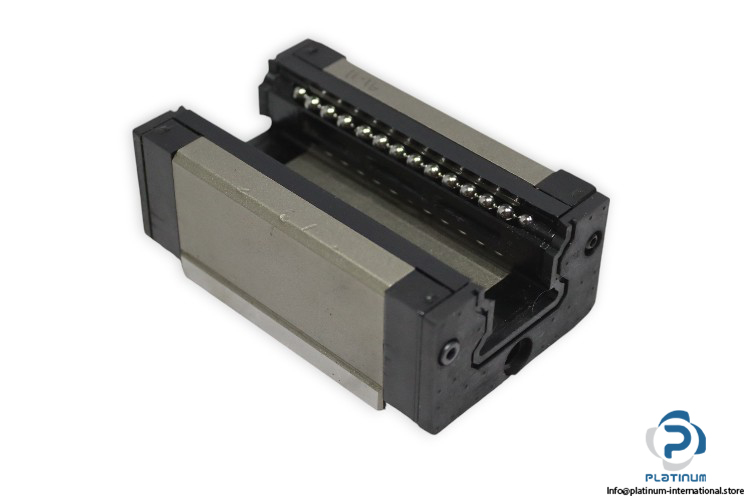

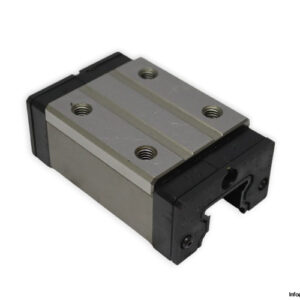

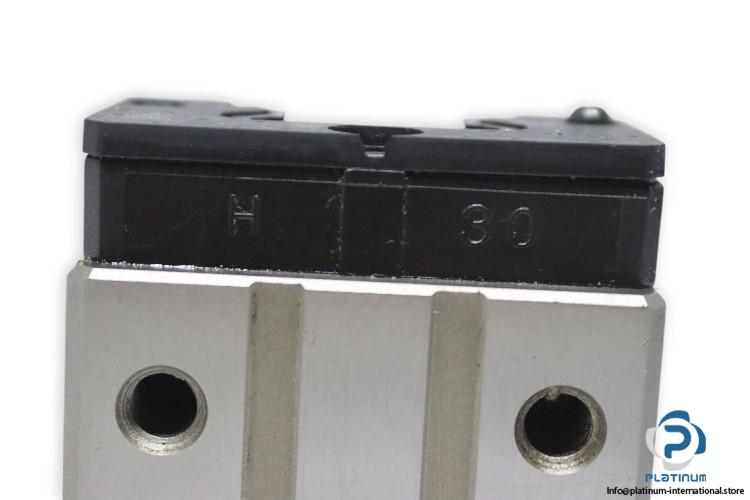

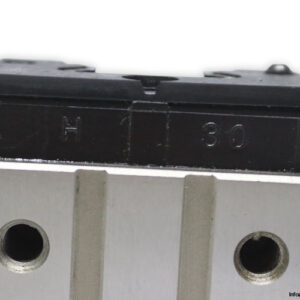

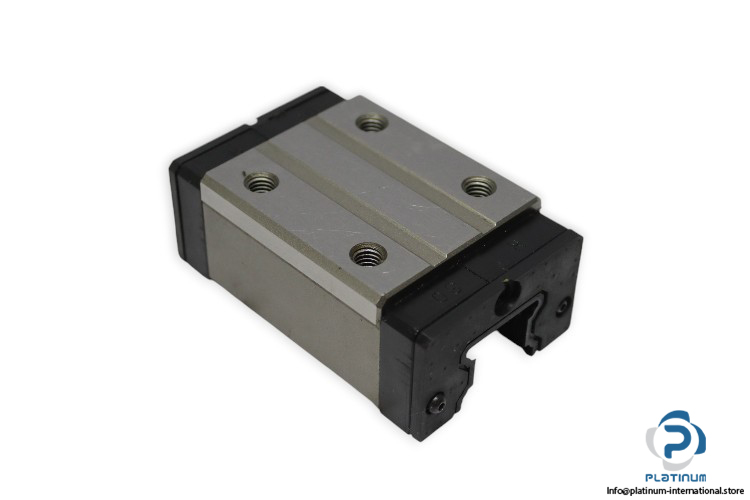

Tsubaki H30ER Linear Bearing Block
Manufacturer: TSUBAKI
Type: LINEAR BEARING BLOCK
Model: H30ER
Size: 30 mm

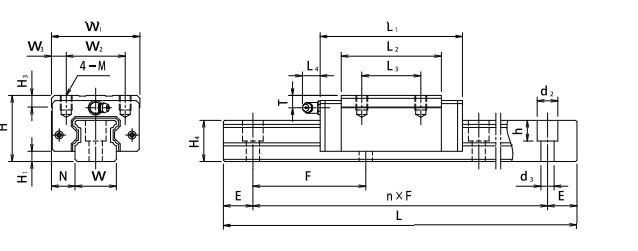

Dimensions
Total Height H: 45 mm
Block Height(H-H1): 38 mm
Width N: 16 mm
Width W1: 60 mm
Width W3: 10 mm
Block Length L1: 97 mm
L2: 68 mm
L3: 40 mm
W2: 40 mm
Block Type: Flange Type
Mounting Hole: 4 Tapped holes (M10×13)
Basic Load Ratings:
Dynamic C50: 29100 N
Dynamic C100: 23100 N
Static C0: 52110 N
