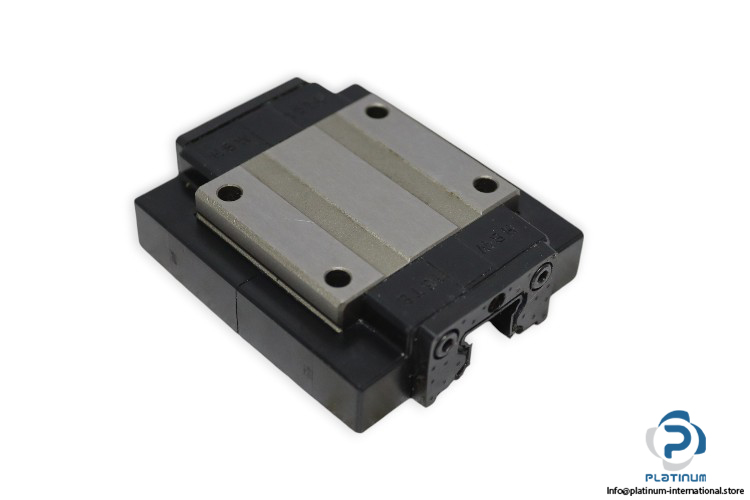

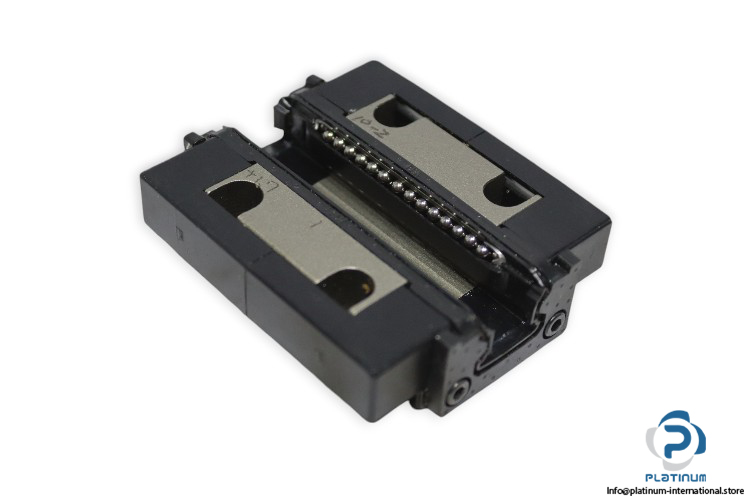

Tsubaki HBW 15 TB Linear Bearing Block
Manufacturer: TSUBAKI
Type: LINEAR BEARING BLOCK

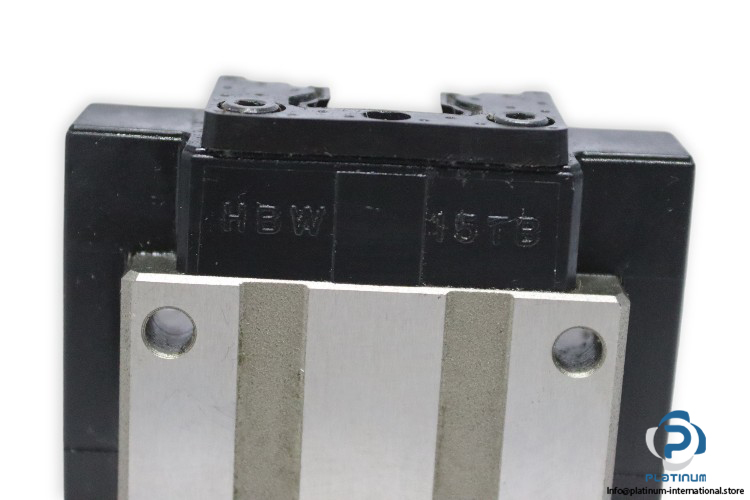

Model: HBW-15-TB / H15TB
Size: 15 mm

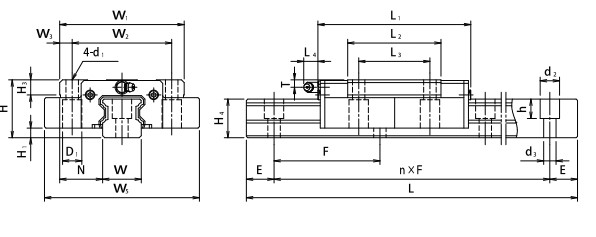

Dimensions
Total Height H: 24 mm
Block Height(H-H1): 19.4 mm
Width N: 16 mm
Width W1: 47 mm
Width W3: 4.5 mm
Block Length L1: 72 mm
L2: 41 mm
L3: 30 mm
W2: 38 mm
Block Type: Flange Type
Mounting Hole: 4 Tapped holes (4.5×7.5)
Basic Load Ratings:
Dynamic C50: 8834 N
Dynamic C100: 7012 N
Static C0: 17020 N
