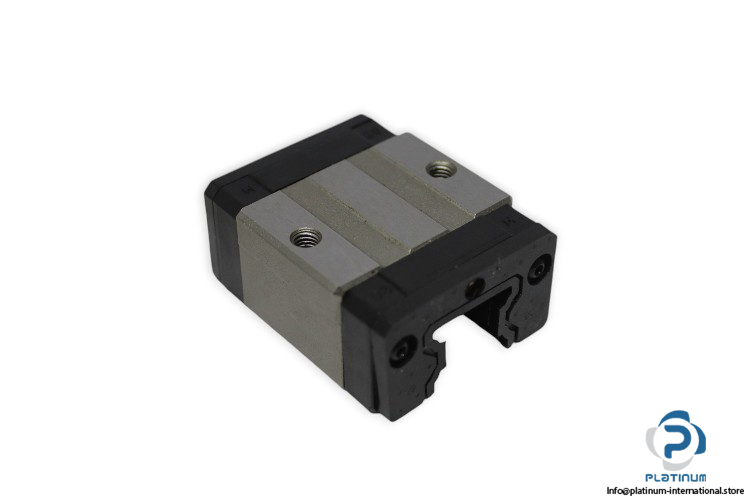

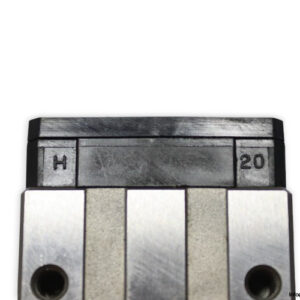

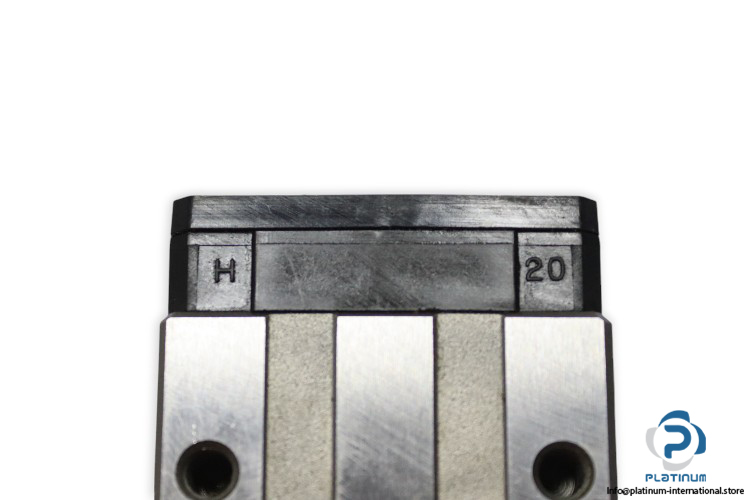

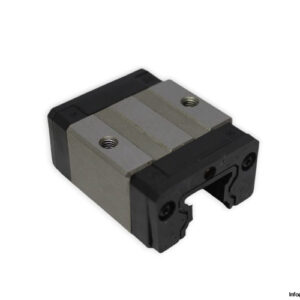

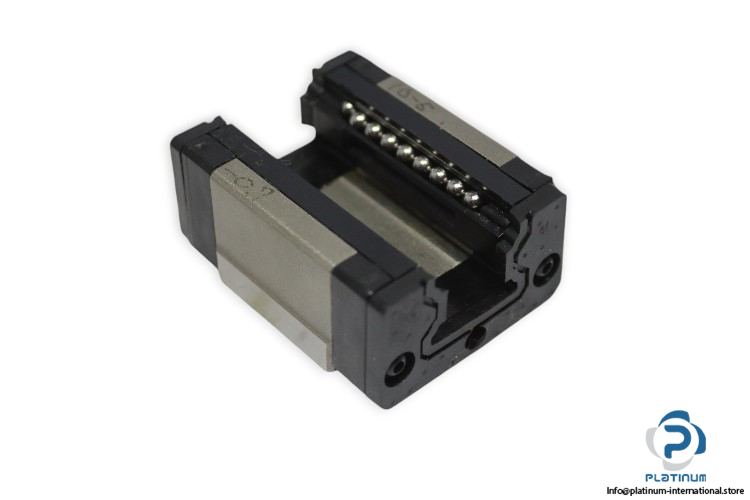

Tsubaki U20SER Linear Bearing Block
Manufacturer: TSUBAKI
Type: LINEAR BEARING BLOCK
Model: U20SER
Size: 20 mm

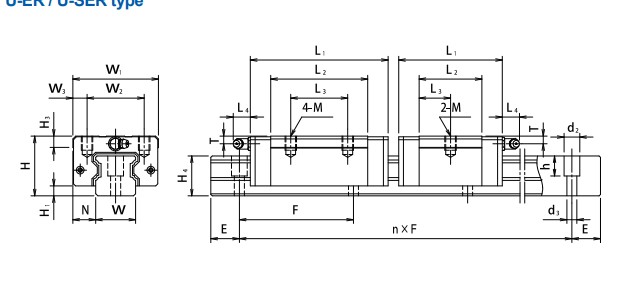

Dimensions
Total Height H: 28 mm
Block Height(H-H1): 24 mm
Width N: 11 mm
Width W1: 42 mm
Width W3: 5 mm
Block Length L1: 53 mm
L2: 30 mm
W2: 32 mm
Block Type: Flange Type
Mounting Hole: 4 Tapped holes (M5×7)
Basic Load Ratings:
Dynamic C50: 9752 N
Dynamic C100: 7740 N
Static C0: 15510 N
