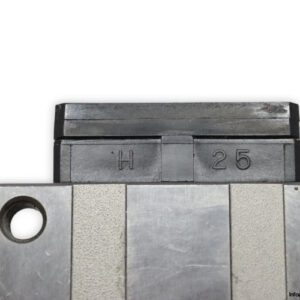

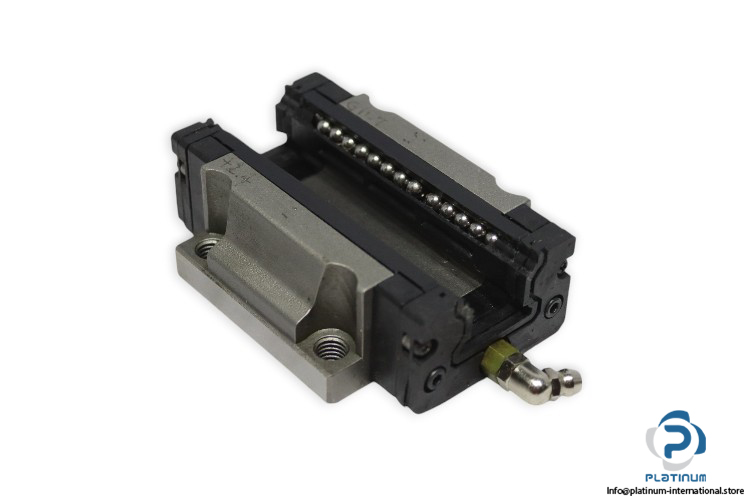

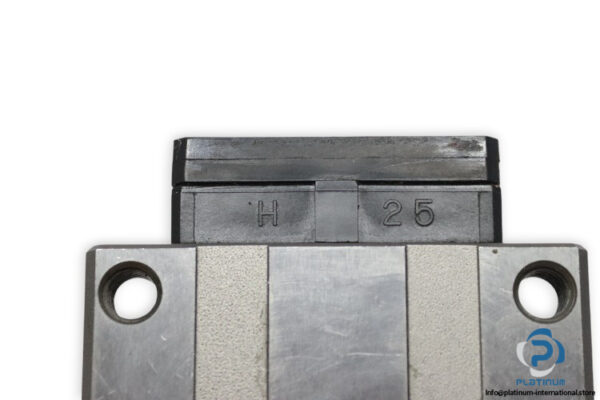

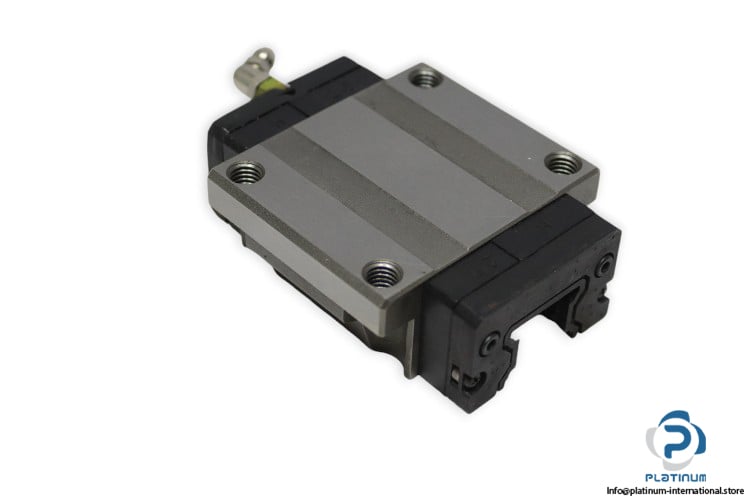

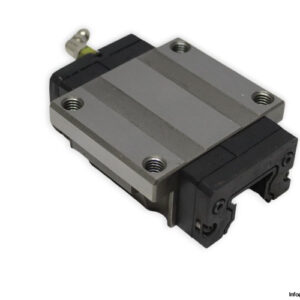

Tsubaki H25EA Linear Bearing Block

Name: TSUBAKI H25EA LINEAR BEARING BLOCK
SKU: 1057118
Price: 44.44 USD
Availability: InStock

tsubaki-H25EA-linear-bearing-block-(used)

tsubaki-H25EA-linear-bearing-block-(used)-1

tsubaki-H25EA-linear-bearing-block-(new)-4

Used

In stock1 unitReady to ship

44,44$

Manufacturer:

TSUBAKI

Type:

LINEAR BEARING BLOCK

Model:

H25EA

Manufacturer

TSUBAK

SKU

1057118

Category

Linear Motion

Condition

Used

25 bearing bearings Guideway Linear mm Motion Tsubaki

New In stock 55,55$

This product is also available brand new

View New Version →

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: TSUBAKI
Type: LINEAR BEARING BLOCK
Model: H25EA

Size: 25 mm

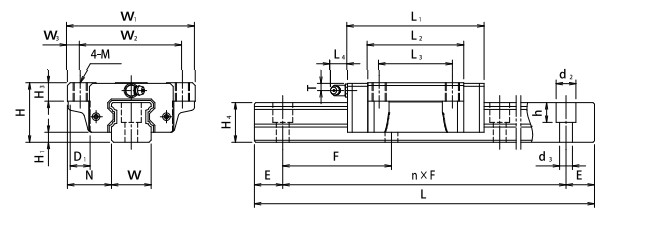

Dimensions
Total Height H: 36 mm
Block Height(H-H1): 29.5 mm
Width N: 23.5 mm
Width W₁: 70 mm
Width W₃: 6.5 mm
Block Length L₁: 84 mm
L₂: 59 mm
L₃: 45 mm
W₂: 57 mm
Block Type: Flange Type
Mounting Hole: 4 Tapped holes (M8×10)
Basic Load Ratings:
Dynamic C₅₀: 20950 N
Dynamic C₁₀₀: 16630 N
Static C₀: 38290 N
