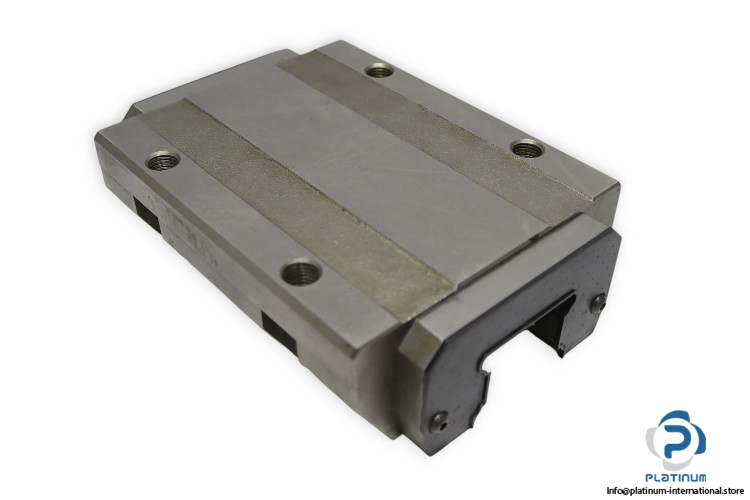

Tsubaki H65LEA Linear Bearing Block

Manufacturer: TSUBAKI
Type: LINEAR BEARING BLOCK
Model: H65LEA

Size: 65 mm

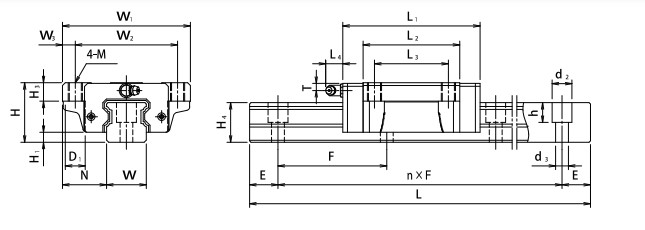

Dimensions
Total Height H: 85 mm
Block Height(H-H1): 71 mm
Width N: 53.5 mm
Width W₁: 170 mm
Width W₃: 14 mm
Block Length L₁: 248 mm
L₂: 207 mm
L₃: 110 mm
W₂: 142 mm
Block Type: Flange Type
Mounting Hole: 4 Tapped holes (M16×20)
Basic Load Ratings:
Dynamic C₅₀: 188800 N
Dynamic C₁₀₀: 149800 N
Static C₀: 339000 N
