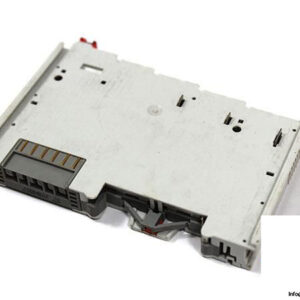

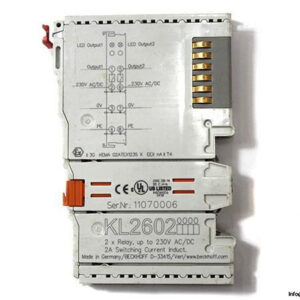

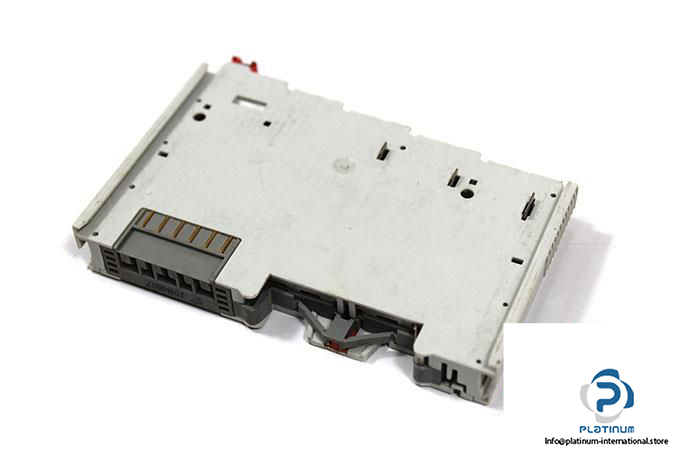

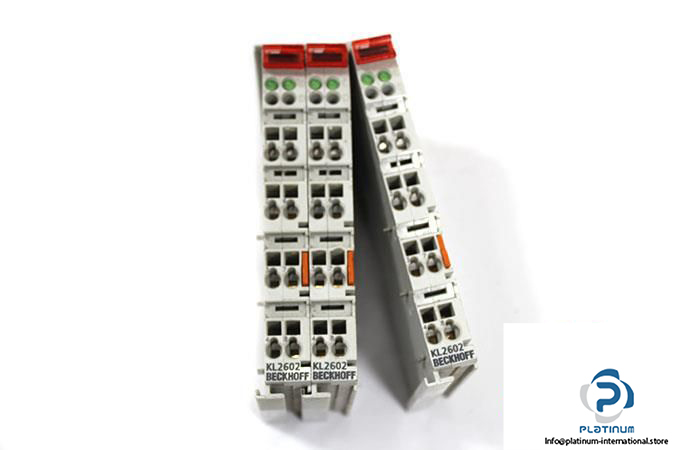

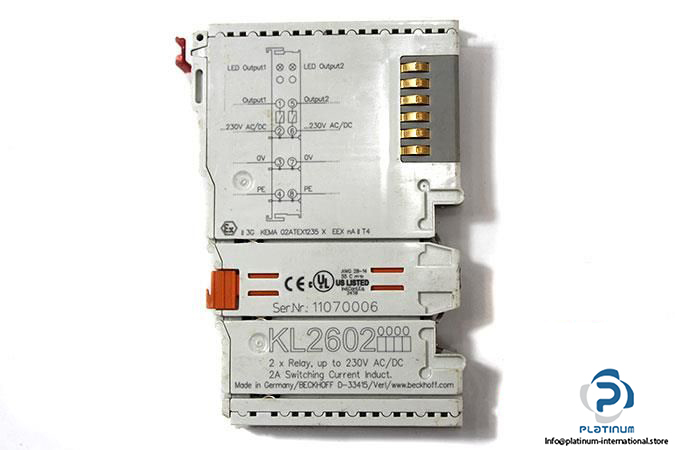

Beckhoff KL2602 2-Channel Output Relay
The Beckhoff KL 2602 2-Channel Output Relay is a reliable and compact I/O module designed for efficient signal and power control in automation systems. It provides two independent relay outputs for safe and flexible switching of AC and DC loads in industrial environments.
Manufacturer: Beckhoff
Type: 2-Channel Output Relay
Model: KL2602
Technical Information

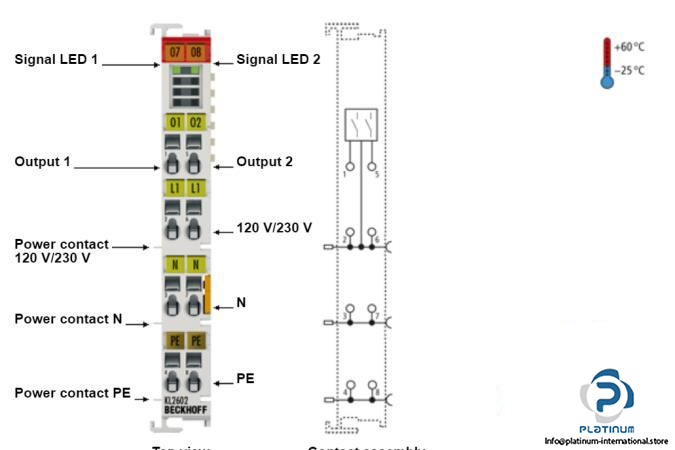

- No. of Outputs: 2 x Make Contacts for Power Contact
- Nominal Voltage: 230 V AC / 30 V DC
- Switching Output Current: 2 A
- Permitted Load: Min. 10 mA at 5 V
- Electrical Isolation: 500 V
- Protection Class: IP20
- Operating Temperature: -25 / 60 °C
- Dimensions: 100 x 12 x 68 mm
