Beckhoff BX3100-0000 BUS Terminal Controller FOR Profibus-DP
New
In stock2 unitsReady to ship
Bus Terminal Controller
Beckhoff BX3100-0000 controller for PROFIBUS-DP with 16-bit processor, TwinCAT PLC software, diagnostic display, joystick switch, 2040 digital and 1024 analog I/O, and 24 VDC supply.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

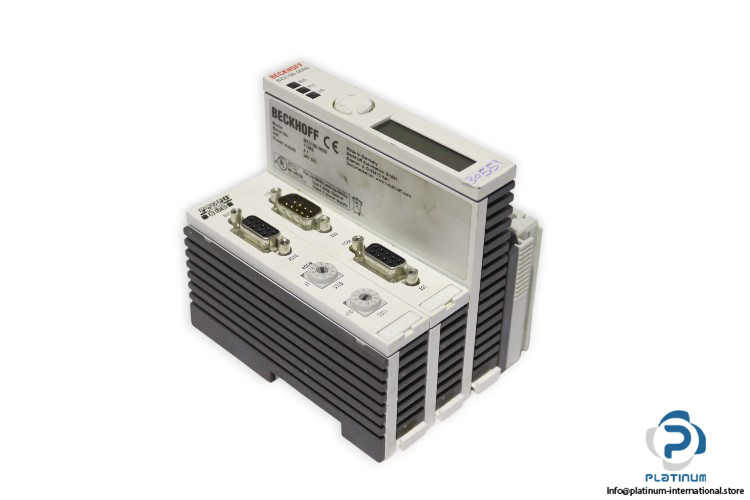

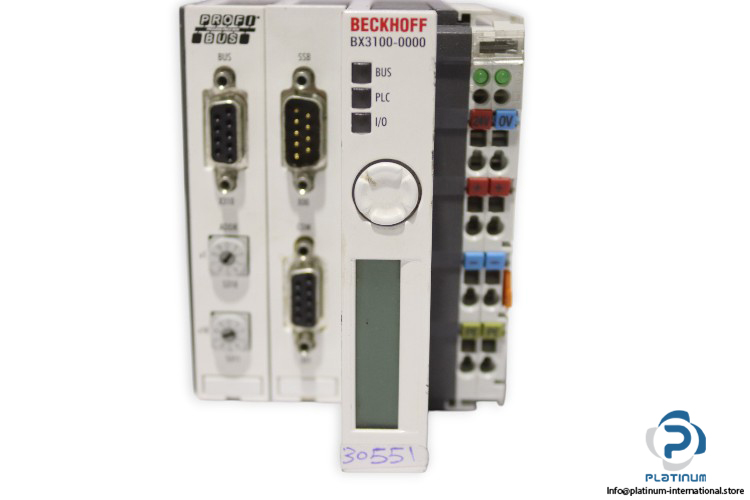

Beckhoff BX3100-0000 Bus Terminal Controller for PROFIBUS-DP
The Beckhoff BX3100-0000 is a compact bus terminal controller designed for PROFIBUS-DP networks. Equipped with a 16-bit micro-controller, diagnostic display, and joystick switch for parameterization, it ensures reliable control and efficient communication in automation systems.

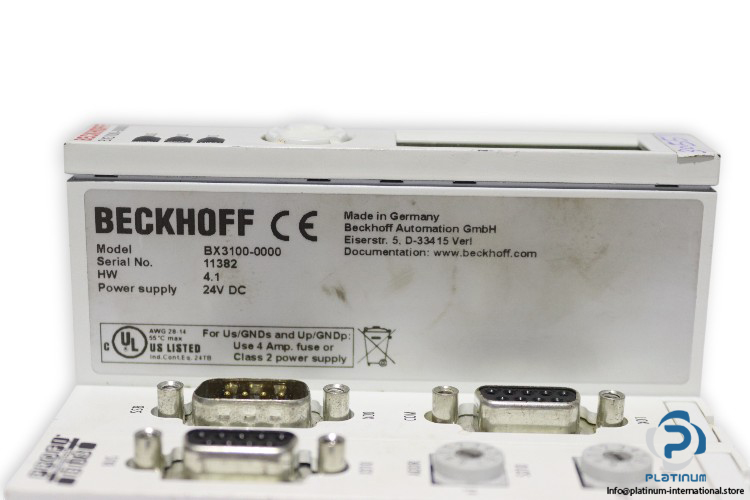

Manufacturer: Beckhoff
Type: Bus Terminal Controller for PROFIBUS-DP
Model: BX3100-0000
Serial No.: 11382
| Processor | 16-bit micro-controller |
| Diagnostic LEDs | 2 x power supply, 2 x K-Bus |
| Display | FSTN 2 x 16 lines, illuminated |
| Switch | Joystick switch for parameterization and diagnosis |
| Clock | Battery-powered internal clock |
| Configuration/Programming Software | TwinCAT PLC |
| Fieldbus Interface | PROFIBUS DP |
| Fieldbus Connection | D-sub, 9-pin |
| SSB | CANopen-based sub-bus interface |
| Terminal Bus (K-Bus) | 64 (255 with K-bus extension) |
| Digital Peripheral Signals | 2040 inputs/outputs |
| Analog Peripheral Signals | 1024 inputs/outputs |
| Configuration | Via TwinCAT or the controller |
| Max. Number of Bytes (Fieldbus) | Depending on fieldbus |
| Max. Number of Bytes (PLC) | 2048 input data, 2048 output data |
| Power Supply (Us) | 24 VDC (-15% / +20%) |
| Input Current (Us) | 180 mA + (total K-bus current)/4 |
| Starting Current (Us) | Approx. 2.5 x continuous current |
| K-Bus Current (5 V) | Maximum 1450 mA |
| Power Contact Voltage (Up) | 24 VDC max. |
| Power Contact Current Load (Up) | Max. 10 A |
| Dielectric Strength | 500 V (power contact/supply voltage/Ethernet/fieldbus) |
