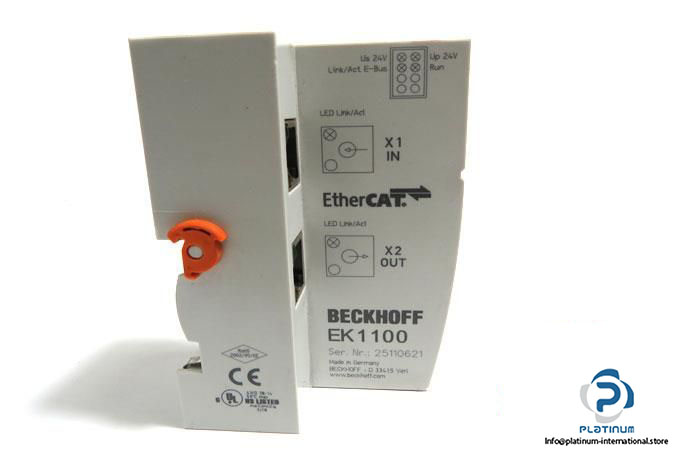

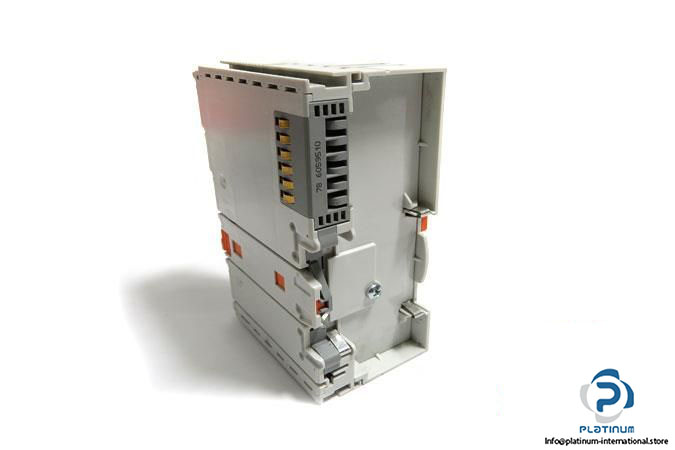

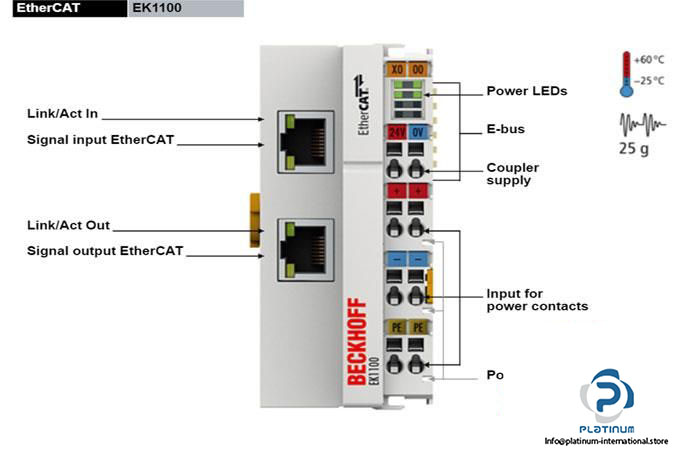

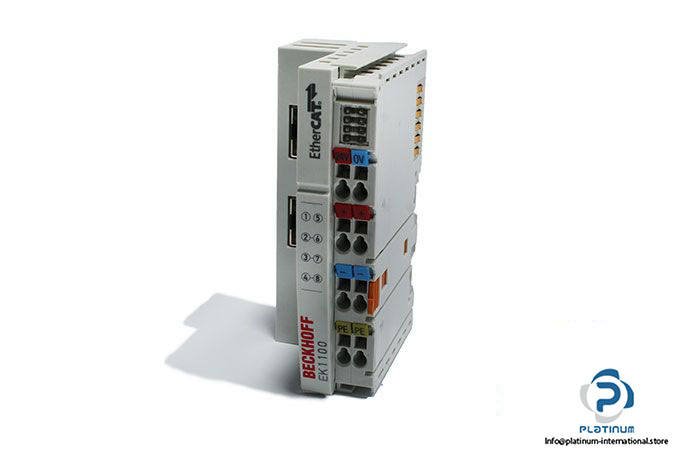

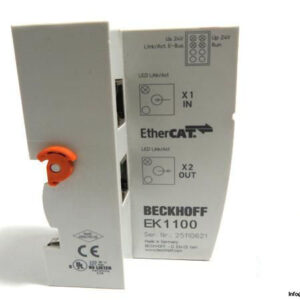

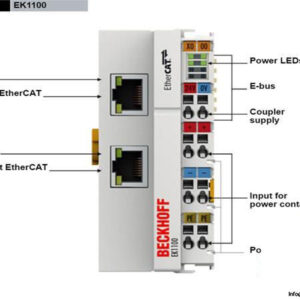

The EK1100 coupler connects EtherCAT with the EtherCAT Terminals (ELxxxx), converts the passing telegrams from Ethernet 100BASE-TX to E-bus signal representation.

Power supply: 24 V DC (-15%/20%)

Current supply E-bus: 2000 mA

Power contacts: 24 V DC

Current power contacts: 10 A

Electrical isolation: 500 V

Distance between stations: max. 100 m (100BASE-TX)

Bus interface: 2 x RJ45

Delay: 1 µs

Transfer rate: 100 Mbit/s

Protection: IP20

Operating temp.: -25…+60 °C
