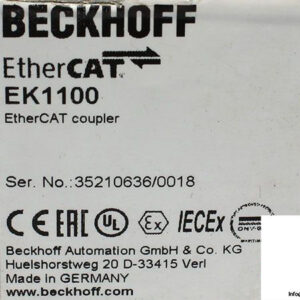

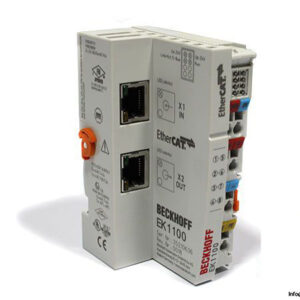

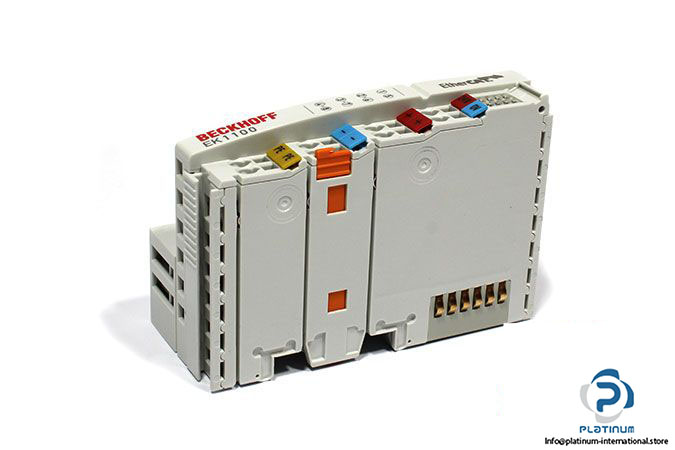

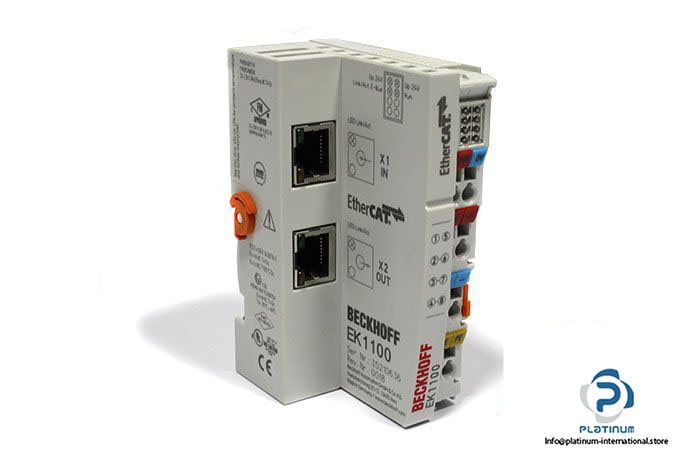

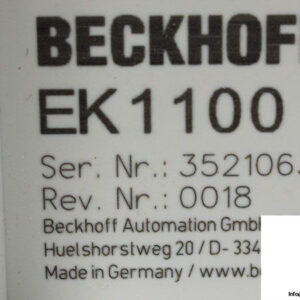

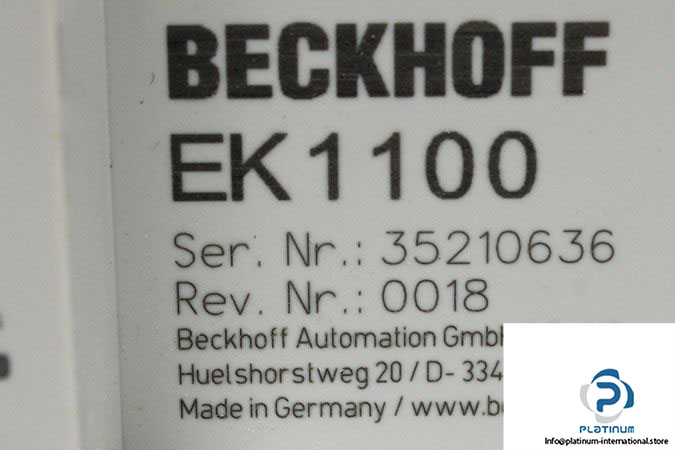

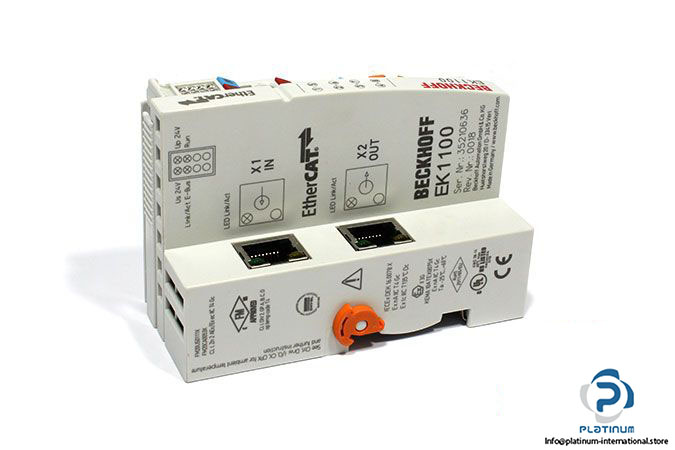

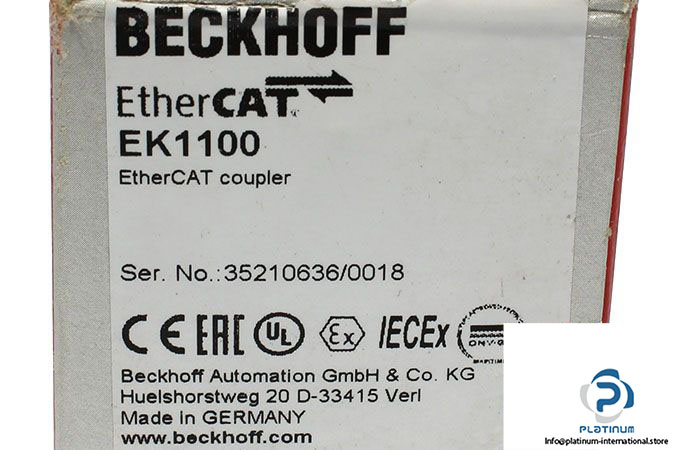

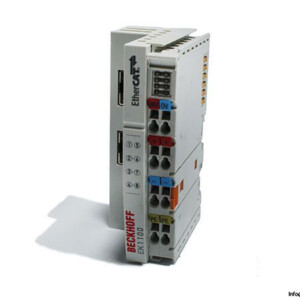

Beckhoff EK 1100 Ethercat Coupler

Manufacturer: BECKHOFF

Type: EtherCAT Coupler

Model: EK1100

The EK1100 coupler connects EtherCAT with the EtherCAT Terminals (ELxxxx), converts the passing telegrams from Ethernet 100BASE-TX to E-bus signal representation.

Power Supply: 24 V DC (-15%/20%)

Current Supply E-bus: 2000 mA

Power Contacts: 24 V DC

Current Power Contacts: 10 A

Electrical Isolation: 500 V

Distance Between Stations: Max. 100 m (100BASE-TX)

Bus interface: 2 x RJ45

Delay: 1 µs

Transfer Rate: 100 Mbit/s

Protection: IP20

Operating Temp.: -25 … 60 °C
