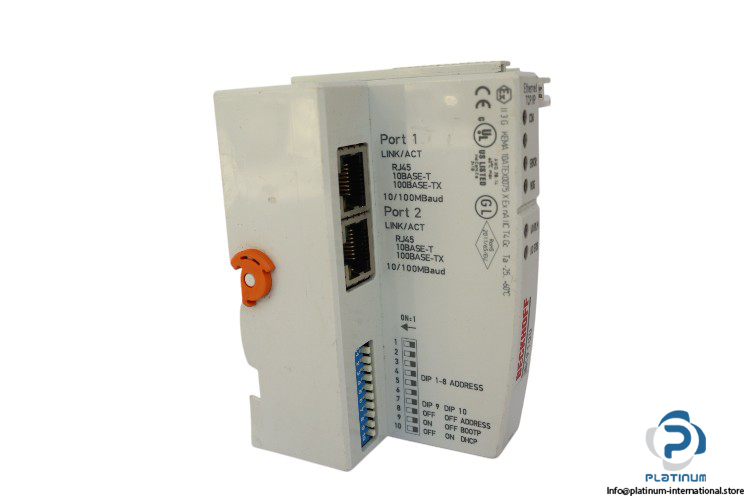

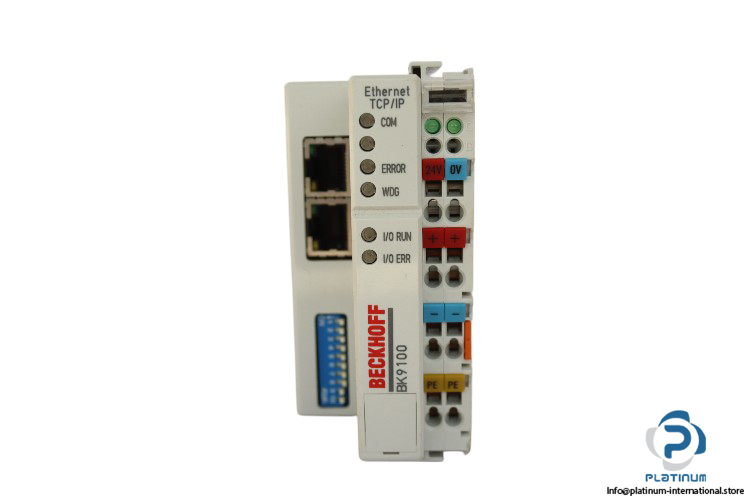

Beckhoff BK9100 BUS Coupler
Bus Coupler
The Beckhoff BK9100 Bus Coupler features a 24 VDC power supply, 64 bus terminals, 512 digital I/O signals, and up to 128 analog I/O signals. It supports RJ45 bus connections, with a maximum module distance of 100 m and operates from -25°C to 60°C.Beckhoff BK9100 Bus Coupler
The Beckhoff BK9100 Bus Coupler is an advanced and efficient solution for integrating various devices into an industrial automation system. With a power supply of 24 VDC and an input current of 70 mA, this coupler is capable of supporting up to 1750 mA of K-bus power supply. It is designed to handle digital and analog peripheral signals, with up to 512 digital inputs/outputs and 128 analog inputs/outputs. The coupler uses two RJ45 connectors for bus connections, allowing for easy and reliable communication between modules. It features a maximum power contact voltage of 24 VDC and supports a maximum current load of 10 A on power contacts, making it a versatile solution for connecting a wide range of industrial peripherals. The BK9100 operates effectively in environments with ambient temperatures between -25°C and 60°C, providing reliable performance even under harsh conditions.
Manufacturer: Beckhoff
Type: Bus Coupler
Model: BK9100
This bus coupler offers outstanding flexibility and reliability in integrating peripheral devices for industrial automation, enabling a robust and efficient communication network.
| Power Supply | 24 VDC |
| Input Current | 70 mA + (total K-bus current)/4, 4.500 mA max. |
| Starting Current | approx. 2.5 x continuous current |
| K-bus Power Supply Up To | 1750 mA |
| Power Contact Voltage Maximum | 24 VDC |
| Power Contact Current Load Maximum | 10 A |
| Number of Bus Terminals | 64 |
| Digital Peripheral Signals | 512 inputs/outputs |
| Analog Peripheral Signals | 128 inputs/outputs |
| Bus Connection | 2 x RJ 45 |
| Distance Between Modules | 100 m |
| Number of I/O Modules | Limited by IP address space |
| Number of I/O Points | Dependent on controller |
| Protection Class | IP20 |
| Ambient Temperature | -25°C to 60°C |
| Dimensions | 100 x 51 mm |
