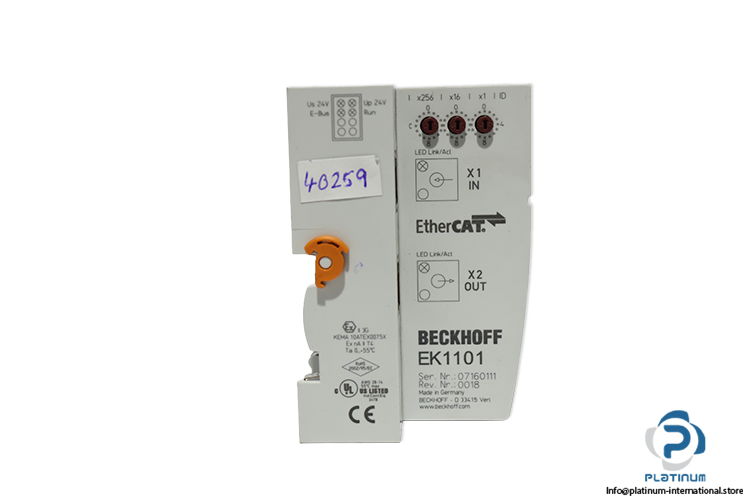

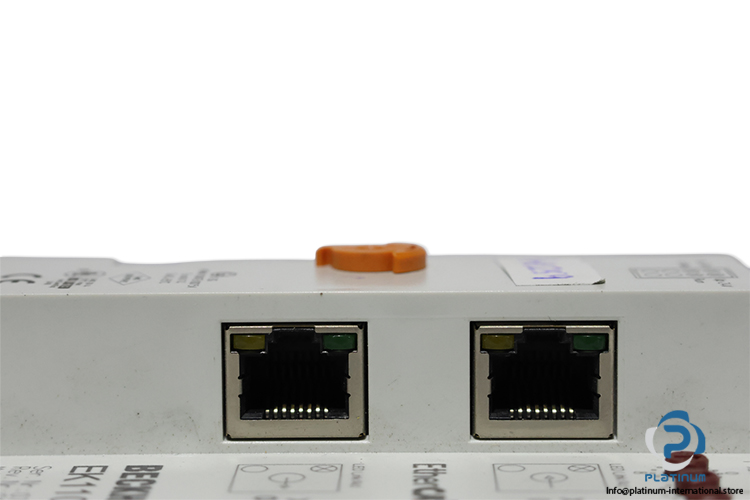

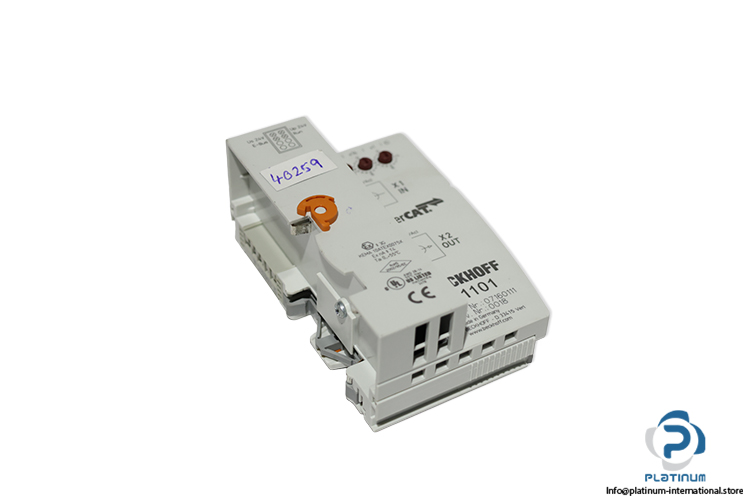

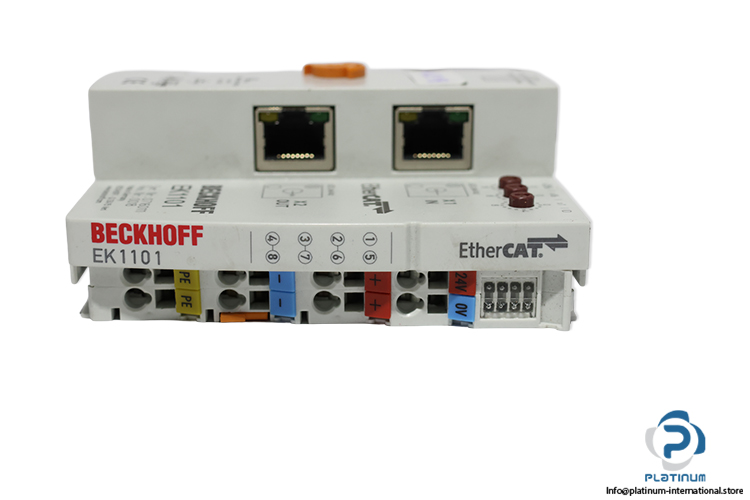

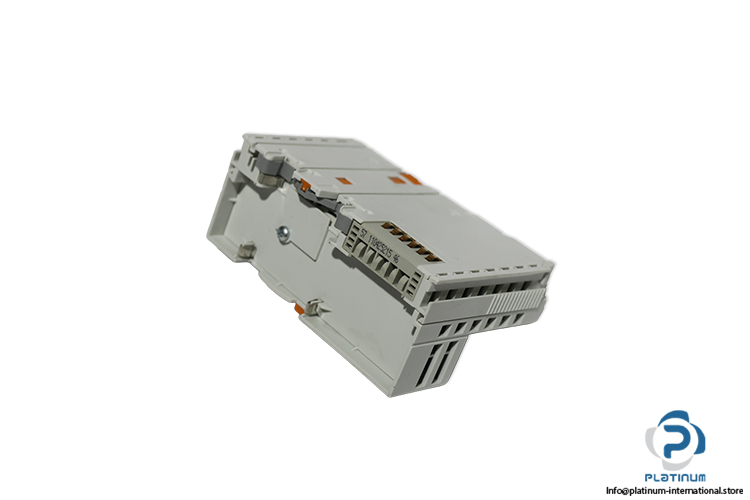

Beckhoff EK1101 Ethercat Coupler With ID Switch
New
In stock1 unitReady to ship
EtherCAT Coupler with ID Switch Beckhoff EK1101 EtherCAT Coupler with 4096 configurable IDs, 100 Mbit/s transmission rate, dual RJ45 interfaces, and 24 V DC power supply for industrial automation systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Ser. Nr . | 07160111 |
| Rev. Nr . | 0018 |
| Task within EtherCAT | system coupling of EtherCAT Terminals (ELxxxx) to 100BASE-TX EtherCAT networks, with identity verification |
| Transmission medium | Ethernet/EtherCAT cable (min. Cat.5), shielded |
| Distance between stations | max. 100 m (100BASE-TX) |
| Number of EtherCAT Terminals | up to 65,534 |
| Type/number of peripheral signals | max. 4.2 GB addressable I/O points |
| Number of configurable IDs | 4096 |
| Protocol | EtherCAT |
| Propagation delay approx. | 1 µs |
| Transmission rate | 100 Mbit/s |
| Bus interface | 2 x RJ45 |
| Power supply | 24 V DC (-15%/+20%) |
| Current consumption from US | 70 mA + (∑ E-bus current/4) |
| Current consumption from UP | load |
| Current supply E-bus | 2000 mA |
| Power contacts | max. 24 V DC/max. 10 A |
| Electrical isolation | 500 V (power contact/supply voltage/Ethernet) |
| Operating temperature | -25…+60°C |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Protect. rating/installation pos. | IP20/variable |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx, DNV, cFMus |
| Ex marking ATEX | II 3G Ex ec IIC T4 Gc |
| IECEx | Ex ec IIC T4 Gc |
| cFMus | Class I, Division 2, Groups A, B, C, D/Class I, Zone 2, AEx ec IIC T4 Gc |
| Design form | compact terminal housing with signal LEDs |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Stripping length | 8…9 mm |
| Current load power contacts Imax | 10 A |
| Dimensions (W x H x D) | 44 mm x 100 mm x 68 mm |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101453 |
| Weight | 0,11 |
