Beckhoff BK5120-0010 Canopen BUS Coupler
Used
In stock1 unitReady to ship
CANopen Bus Coupler
Beckhoff BK5120-0010 CANopen Bus Coupler with flexible baud rates up to 1 Mbaud, 64 I/O stations, 960 digital and 60 analog signals, 24 V DC power supply, and robust industrial design.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

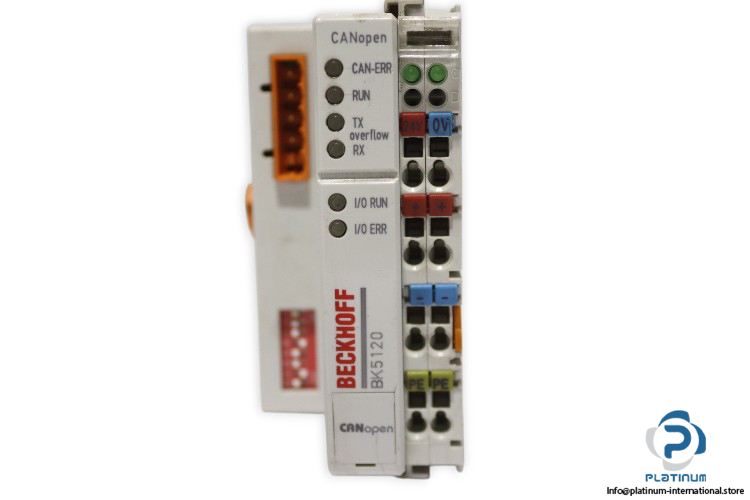

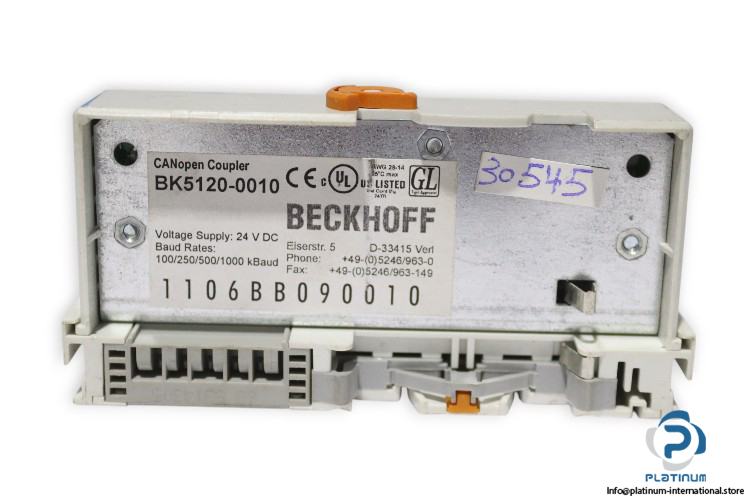

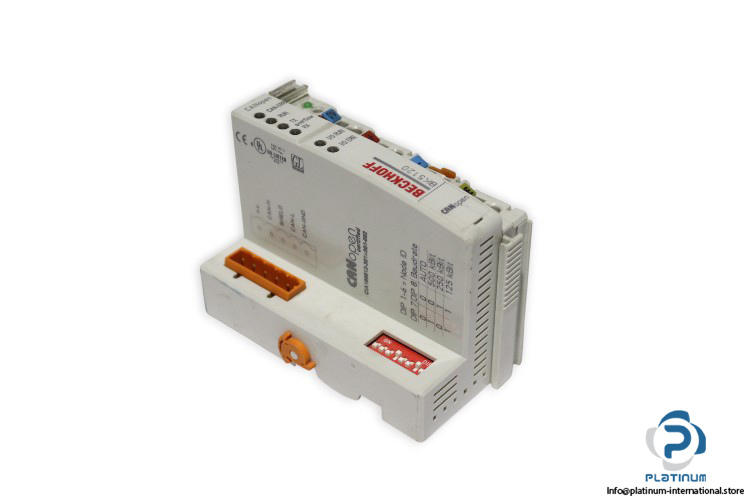

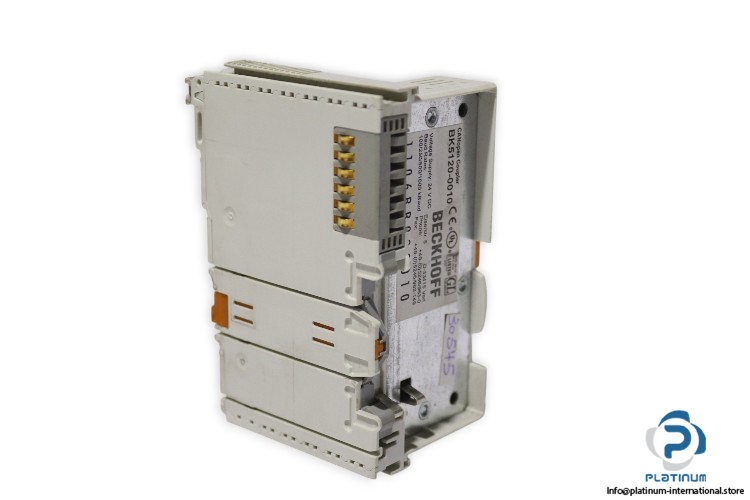

Beckhoff BK5120-0010 CANopen Bus Coupler
The Beckhoff BK5120-0010 CANopen Bus Coupler is designed to connect modular I/O terminals with the CANopen fieldbus system. With flexible baud rates, high channel density, and reliable communication features, it ensures efficient integration in automation environments.
Manufacturer: Beckhoff
Type: CANopen Bus Coupler
Model: BK5120-0010
MRN: 1106bb090010
| Baud Rates | 100 / 250 / 500 / 1000 kbaud |
| Number of I/O Stations | 64 (255 with K-bus extension) |
| Number of I/O Points | Depends on structure |
| Data Transfer Medium | Screened, twisted copper cable (2 x signal, 1 x ground recommended) |
| Number of Bus Terminals | 64 (255 with K-bus extension) |
| Max. Bytes Fieldbus | 16 Tx/Rx PDOs |
| Digital Peripheral Signals | 960 inputs/outputs |
| Analog Peripheral Signals | 60 inputs/outputs |
| Number of PDOs (CANopen) | 16 Tx / 16 Rx |
| Additional CANopen Features | Life, node guarding, emergency object, variable mapping, store/restore |
| Data Transfer Rates | Up to 1 Mbaud |

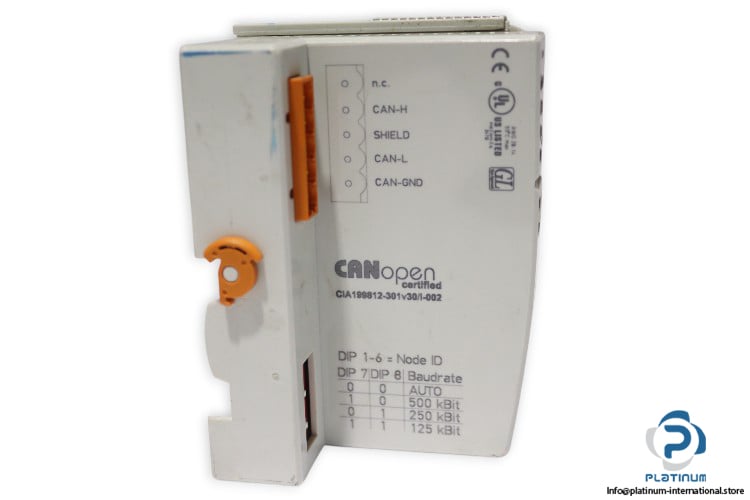

| Bus Interface | 1 x open style connector, 5-pin (included) |
| Power Supply | 24 V DC (-15 % / +20 %) |
| Input Current | 70 mA + (total K-bus current)/4, 500 mA max. |
| Starting Current | Approx. 2.5 x continuous current |
| Recommended Fuse | ‰¤ 10 A |
| Current Supply K-bus | 1750 mA |
| Power Contacts | 24 V DC max. / 10 A max. |
| Electrical Isolation | 500 V (power contact / supply voltage Bus Coupler) |
| Operating Temperature | -25 / +60 °C |
