Beckhoff CU2508-0000 Ethernet Port Multiplier
New
In stock1 unitReady to ship
Ethernet Port Multiplier The Beckhoff CU2508-0000 is an industrial Ethernet port multiplier featuring eight 100BASE-TX ports, a Gigabit uplink, and EtherCAT support for automation networks.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

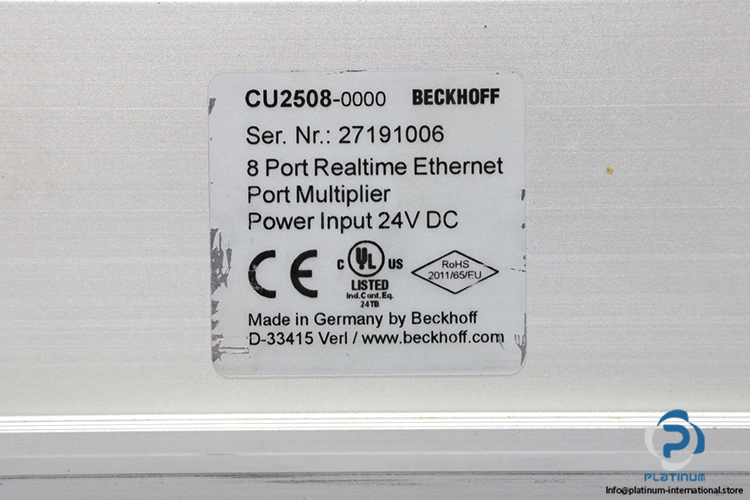

| Serial No. | 27191006 |
| Series | CU2508 |
| Power Supply | 24 V DC |
| Current Consumption | 250 mA |

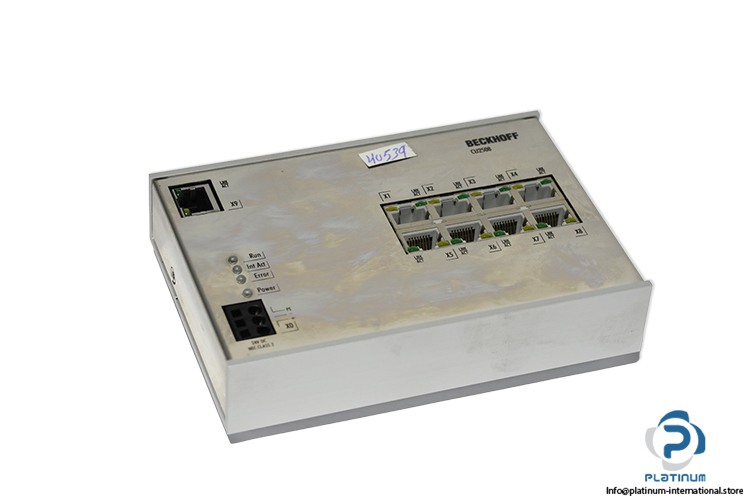

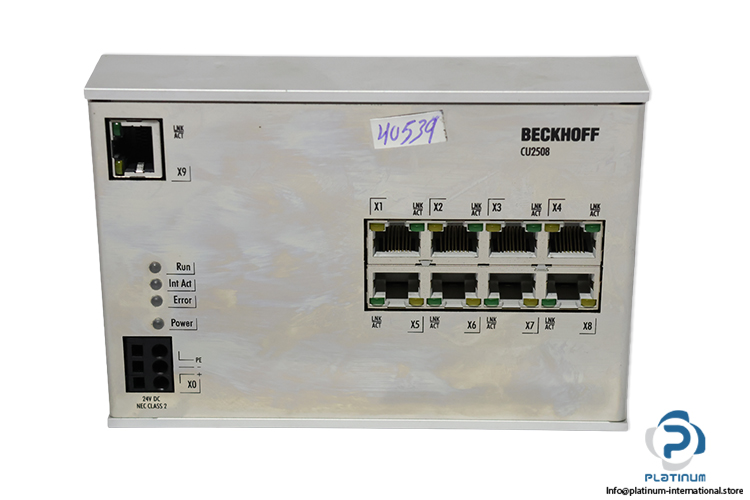

| Ethernet Ports | 8x 100BASE-TX (RJ45) Downward Ports And a 1 Gbit/s Gigabit Uplink To The Control Ipc |
| Protocols | Supports Ethernet Tcp/Ip, Ethercat, Profinet, Eap (Ethercat Automation Protocol), And Realtime Ethernet Via Twincat (Twincat 3 / Twincat 2.11) |
| System Integration | Supported via TwinCAT 2 and TwinCAT 3 |
| Redundancy | Supports EtherCAT Cable Redundancy and Expanded EtherCAT Lines |
| Connection | Connector Cable 1 m USB 2.0 USB-A to USB-B |
| Material | Metal |
| Protection Class | IP20 |
| Operating Temperature | -25 … 55 °C |
| Dimensions | 146 x 100 x 30 mm |
| Approvals/Markings | CE and UL Certified |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1104183 |
| Weight | 0,50 |
