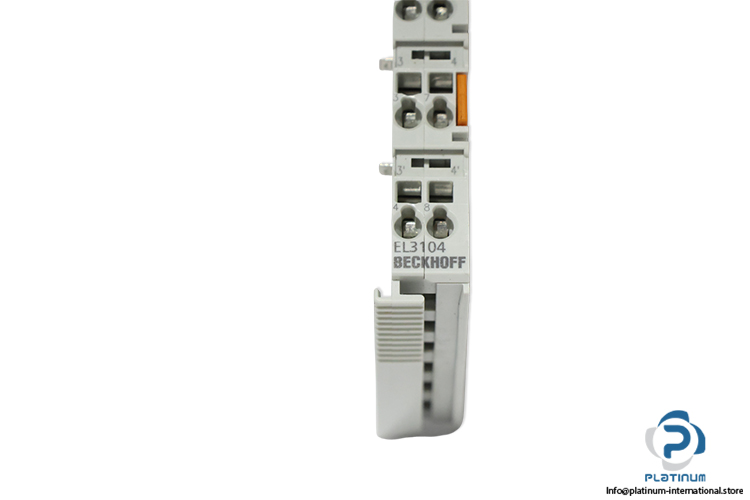

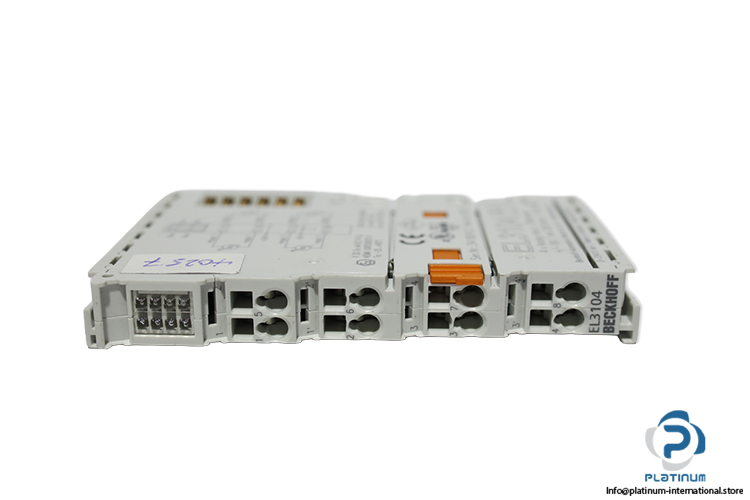

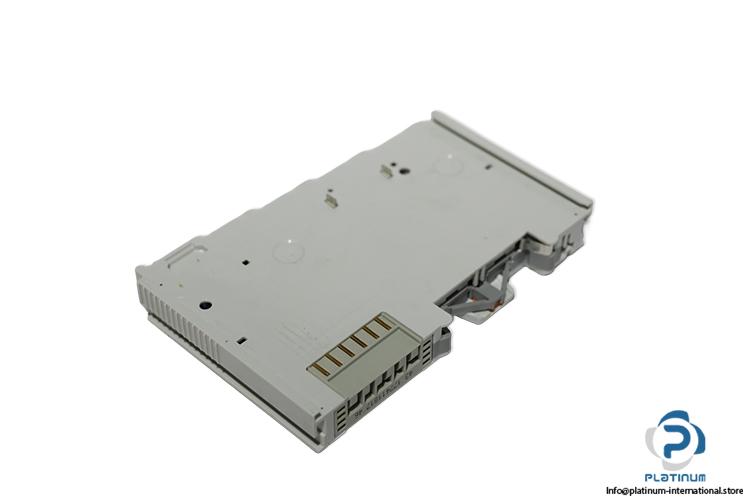

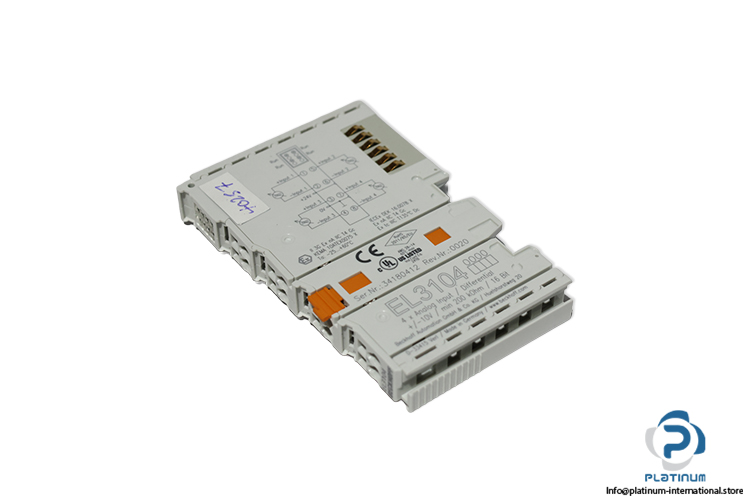

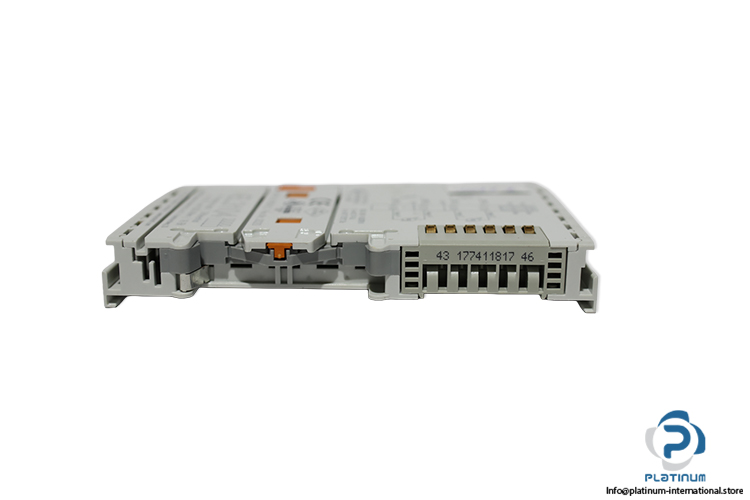

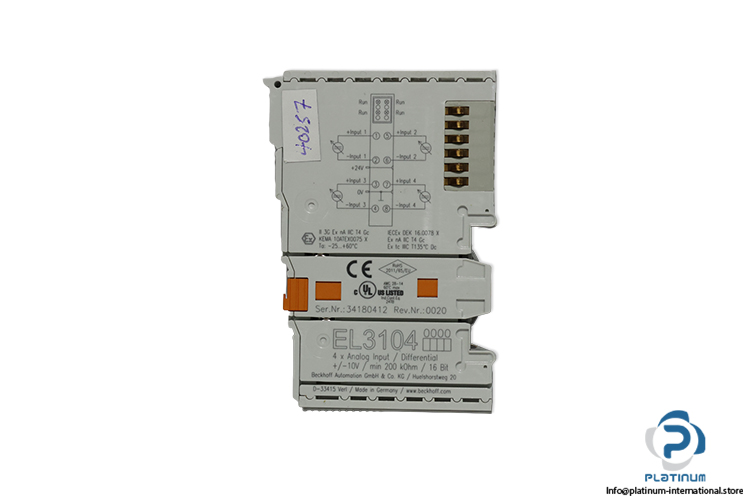

Beckhoff EL3104 Ethercat Terminal

In stock1 unitReady to ship

EtherCAT Terminal Beckhoff EL3104 EtherCAT, 24 V DC operation, and compact DIN rail mounting for industrial automation applications.

Manufacturer
BECKHOFF
SKU
1101451
Category
PLC Modules
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Ser.Nr .34180412
Rev.Nr .0020
Number of inputs4 (differential)
Power supplyvia the E-bus
Signal voltage-10…+10 V
Distributed clock accuracy1 µs
Internal resistance200 kO
Input filter cut-off frequency5 kHz
Common mode voltage UCM max.35 V (relative to GND power contact)
Conversion time100 µs
Resolution16 bit (incl. sign)
Measurement error/uncertainty±0.3% (relative to full scale value)
Electrical isolation500 V (E-bus/signal voltage)
Current consumption E-bustyp. 130 mA
Bit width in the process imageinputs: 16 byte
Special featuresstandard and compact process image, switchable measuring data representation, activatable FIR/IIR filters, limit value monitoring
Operating temperature-25…+60°C
Relative humidity95%, no condensation
Vibration/shock resistanceconforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emissionconforms to EN 61000-6-2/EN 61000-6-4
Pluggable wiring levelfor all ESxxxx terminals
Protect. rating/installation pos.IP20/variable
Approvals/markingsCE, CCC, UL, ATEX, IECEx, cFMus
Ex marking ATEXII 3G Ex ec IIC T4 Gc
IECExEx ec IIC T4 Gc
cFMusClass I, Division 2, Groups A, B, C, D/Class I, Zone 2, AEx ec IIC T4 Gc
Side-by-Side Mountingdouble slot and key connection
MarkingLabeling of the BZxxxx series
Materialpolycarbonate
Dimensions12 x 100 x 68 mm
Stock keyCON003
ConditionNew
SKU1101451
Weight0,05
