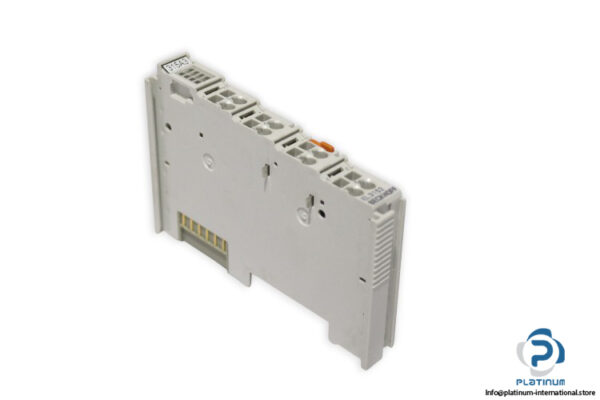

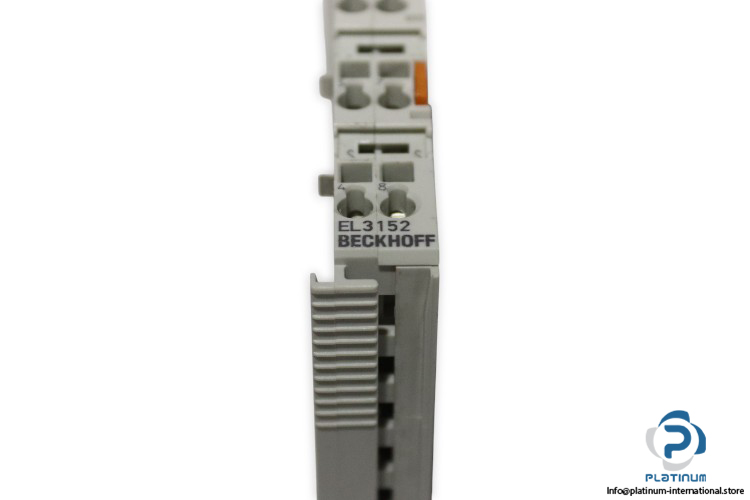

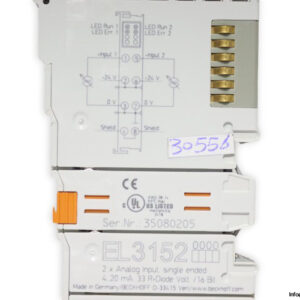

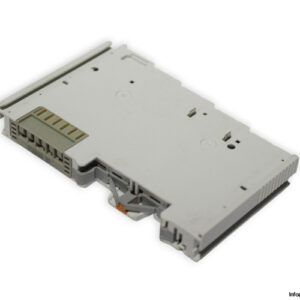

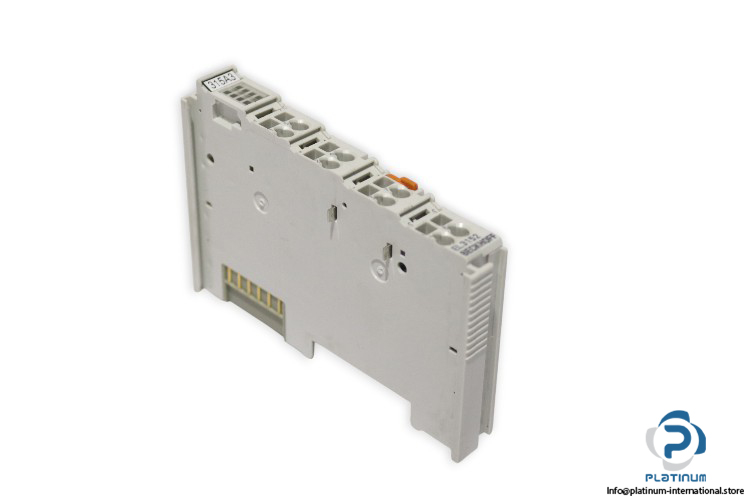

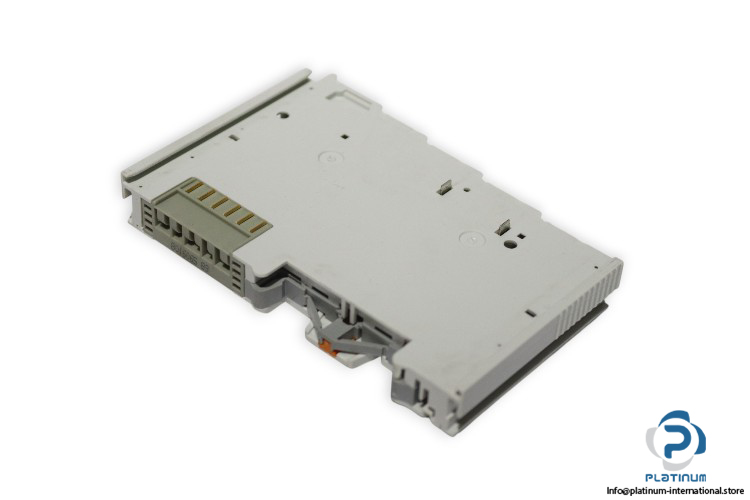

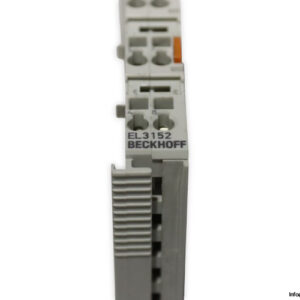

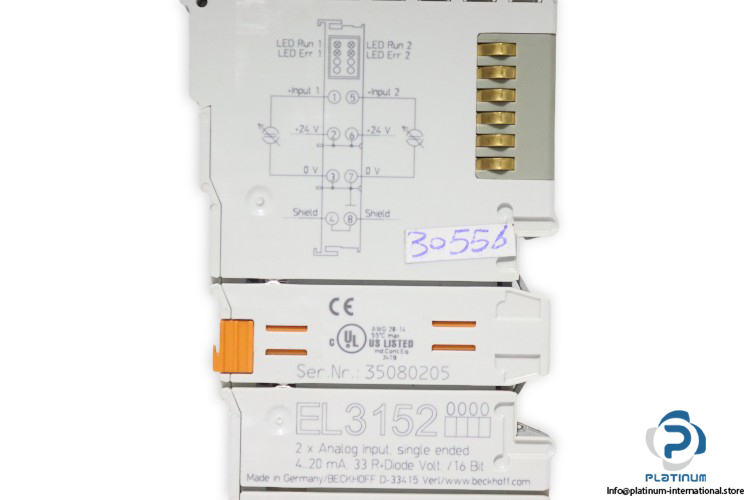

Beckhoff EL3152 EtherCAT Terminal

The Beckhoff EL3152 is a high-performance EtherCAT terminal designed for precise current measurement in automation systems. With dual single-ended inputs and advanced features like FIR/IIR filters and limit value monitoring, it ensures accurate and reliable process control in industrial environments.

Manufacturer: Beckhoff
Type: EtherCAT Terminal
Model: EL3152
MRN: 35080205

Technical Information

• Number of Inputs: 2 (single-ended)
• Power Supply: Via the E-bus
• Technology: Single-ended
• Signal Type: Single-ended
• Signal Current: 4 / 20 mA
• Internal Resistance: Typ. 85 Ω + diode voltage
• Input Filter Limit Frequency: 5 kHz
• Dielectric Strength: Max. 30 V
• Conversion Time: 60 µs (fast mode 40 µs)
• Resolution: 16 bit (incl. sign)
• Measuring Error: < ±0.3 % (relative to full scale value)
• Electrical Isolation: 500 V (E-bus/signal voltage)
• Current Consumption E-bus: Typ. 170 mA
• Bit Width in Process Image: Inputs: 8 byte
• Special Features: Standard and compact process image, activatable FIR/IIR filters, limit value monitoring
• Operating Temperature: -25 / +60 °C
